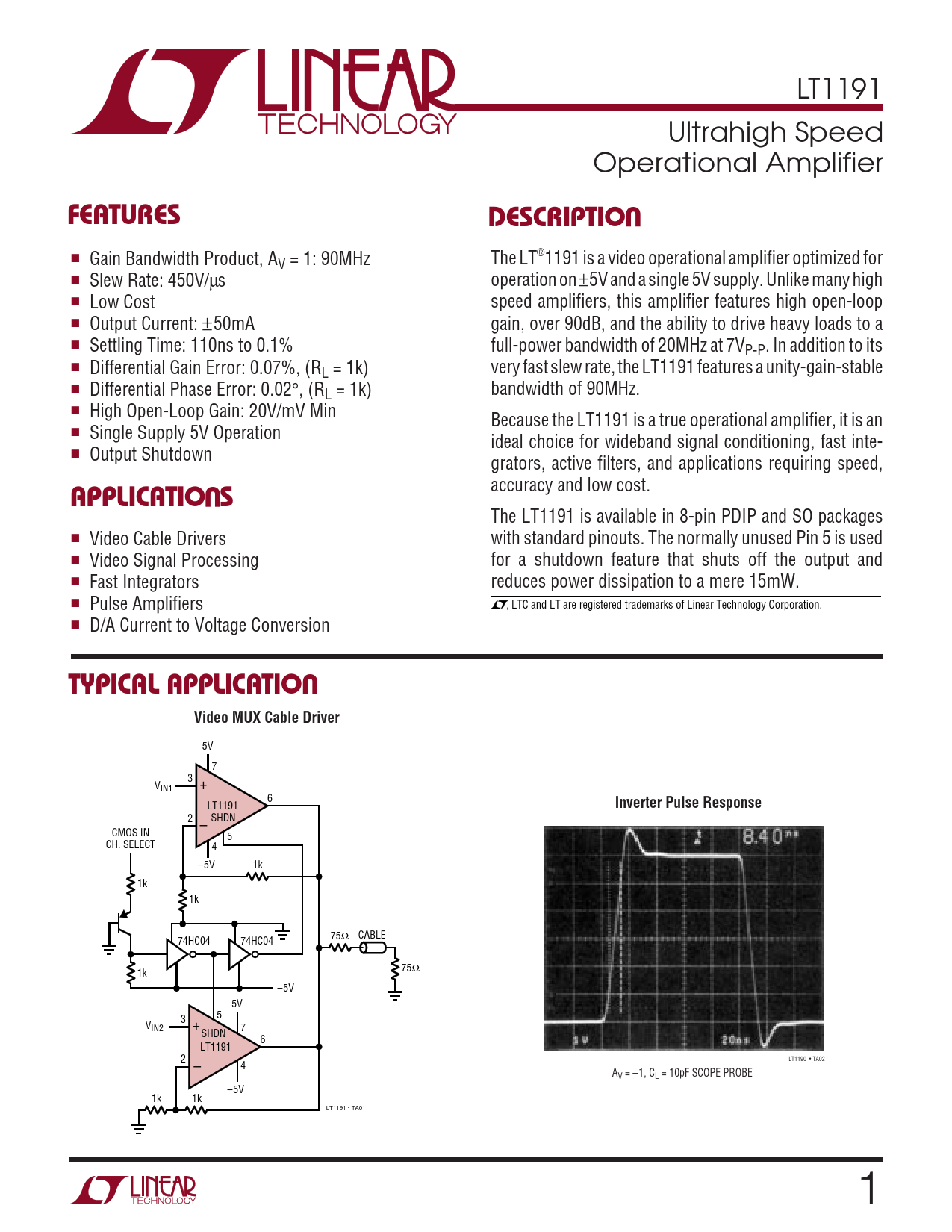

LT1191 Ultrahigh Speed Operational Amplifier
U FEATURES DESCRIPTIO
■ Gain Bandwidth Product, AV = 1: 90MHz The LT®1191 is a video operational amplifier optimized for ■ Slew Rate: 450V/µs operation on ±5V and a single 5V supply. Unlike many high ■ Low Cost speed amplifiers, this amplifier features high open-loop ■ Output Current: ±50mA gain, over 90dB, and the ability to drive heavy loads to a ■ Settling Time: 110ns to 0.1% full-power bandwidth of 20MHz at 7VP-P. In addition to its ■ Differential Gain Error: 0.07%, (RL = 1k) very fast slew rate, the LT1191 features a unity-gain-stable ■ Differential Phase Error: 0.02°, (RL = 1k) bandwidth of 90MHz. ■ High Open-Loop Gain: 20V/mV Min Because the LT1191 is a true operational amplifier, it is an ■ Single Supply 5V Operation ideal choice for wideband signal conditioning, fast inte- ■ Output Shutdown grators, active filters, and applications requiring speed,
U
accuracy and low cost.
APPLICATIO S
The LT1191 is available in 8-pin PDIP and SO packages ■ Video Cable Drivers with standard pinouts. The normally unused Pin 5 is used ■ Video Signal Processing for a shutdown feature that shuts off the output and ■ Fast Integrators reduces power dissipation to a mere 15mW. ■ Pulse Amplifiers , LTC and LT are registered trademarks of Linear Technology Corporation. ■ D/A Current to Voltage Conversion
U TYPICAL APPLICATIO Video MUX Cable Driver
5V 7 3 VIN1 + 6 LT1191
Inverter Pulse Response
2 SHDN – CMOS IN 5 CH. SELECT 4 –5V 1k 1k 1k 75Ω CABLE 74HC04 74HC04 75Ω 1k –5V 5V 5 3 VIN2 + 7 SHDN 6 LT1191 2 LT1190 • TA02 – 4 AV = –1, CL = 10pF SCOPE PROBE –5V 1k 1k LT1191 • TA01 1
