Datasheet LT1221 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 150MHz, 250V/µs, AV ≥ 4 Operational Amplifier |
| Páginas / Página | 12 / 10 — PACKAGE DESCRIPTIO. N8 Package. 8-Lead PDIP (Narrow .300 Inch) |
| Formato / tamaño de archivo | PDF / 261 Kb |
| Idioma del documento | Inglés |
PACKAGE DESCRIPTIO. N8 Package. 8-Lead PDIP (Narrow .300 Inch)
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1221

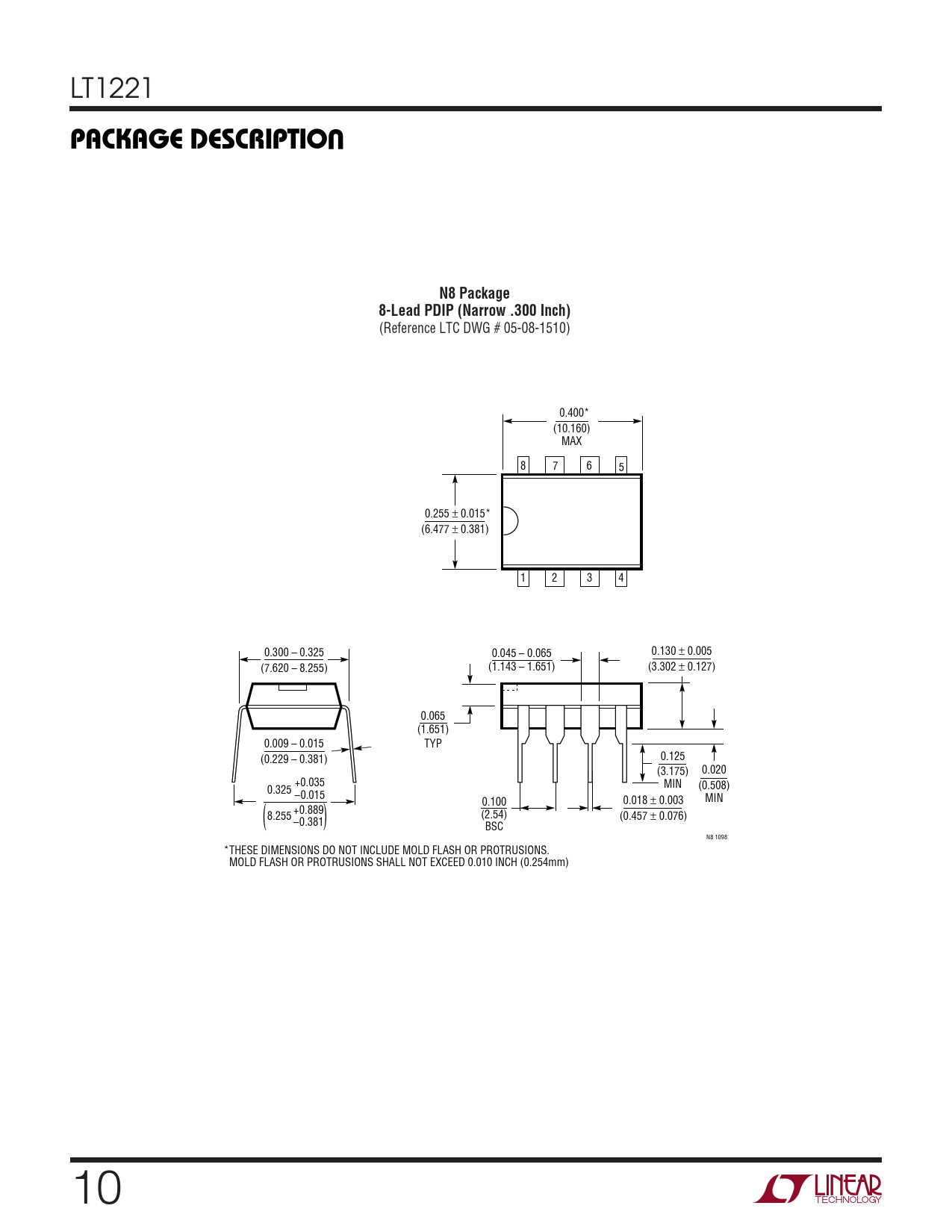

U PACKAGE DESCRIPTIO N8 Package 8-Lead PDIP (Narrow .300 Inch)
(Reference LTC DWG # 05-08-1510) 0.400* (10.160) MAX 8 7 6 5 0.255 ± 0.015* (6.477 ± 0.381) 1 2 3 4 0.300 – 0.325 0.045 – 0.065 0.130 ± 0.005 (7.620 – 8.255) (1.143 – 1.651) (3.302 ± 0.127) 0.065 (1.651) 0.009 – 0.015 TYP 0.125 (0.229 – 0.381) (3.175) 0.020 +0.035 MIN (0.508) 0.325 –0.015 0.100 MIN 0.018 ± 0.003 +0.889 8.255 (2.54) (0.457 ± 0.076) ( ) –0.381 BSC N8 1098 *THESE DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.010 INCH (0.254mm) 10
