Datasheet LT1812 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 3mA, 100MHz, 750V/µs Operational Amplifier with Shutdown |
| Páginas / Página | 16 / 5 — ELECTRICAL CHARACTERISTICS. 0°C ≤ TA ≤ 70°C, VS = ± 5V, VCM = 0V unless … |
| Formato / tamaño de archivo | PDF / 251 Kb |
| Idioma del documento | Inglés |

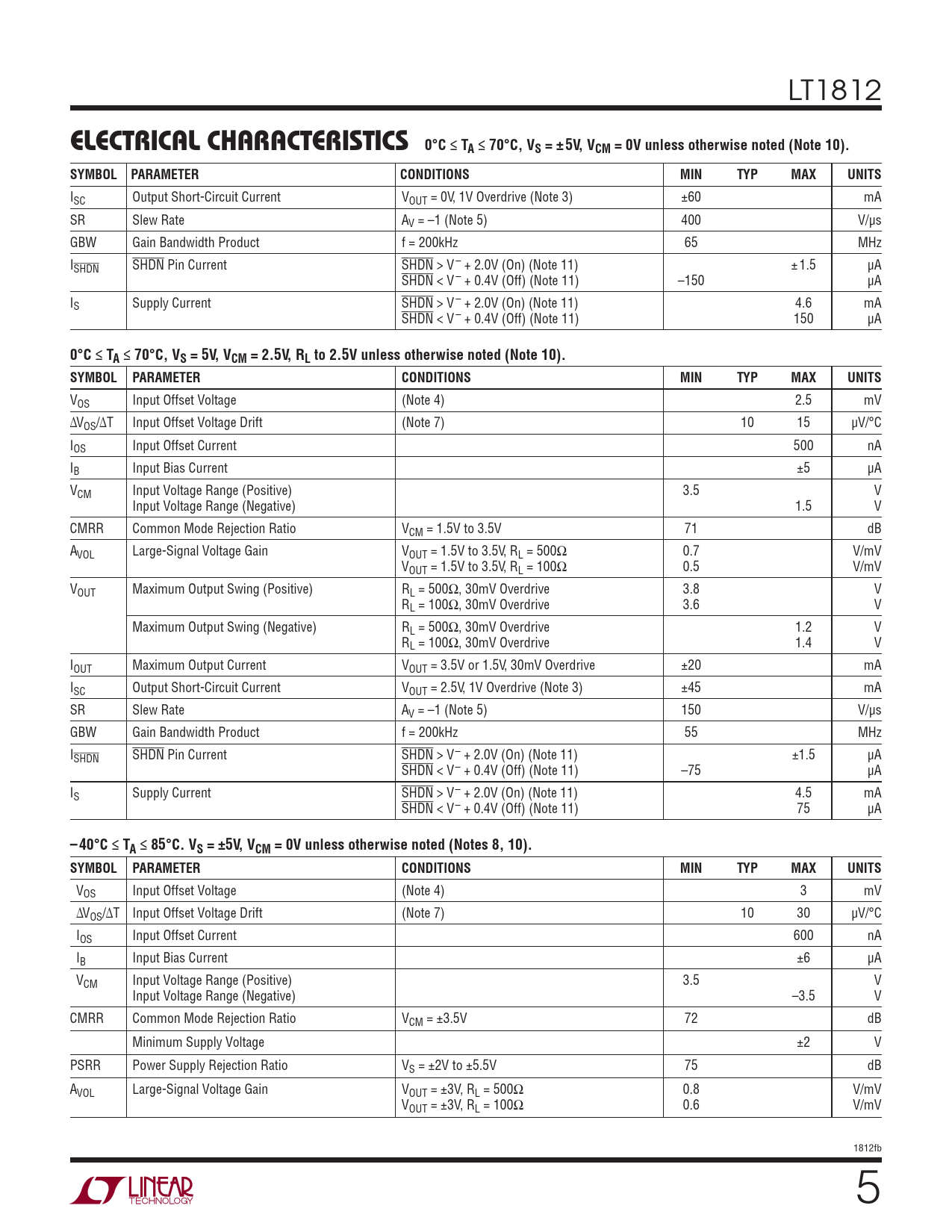

ELECTRICAL CHARACTERISTICS. 0°C ≤ TA ≤ 70°C, VS = ± 5V, VCM = 0V unless otherwise noted (Note 10). SYMBOL. PARAMETER
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1812
ELECTRICAL CHARACTERISTICS 0°C ≤ TA ≤ 70°C, VS = ± 5V, VCM = 0V unless otherwise noted (Note 10). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Output Short-Circuit Current VOUT = 0V, 1V Overdrive (Note 3) ±60 mA SR Slew Rate AV = –1 (Note 5) 400 V/μs GBW Gain Bandwidth Product f = 200kHz 65 MHz ISHDN SHDN Pin Current SHDN > V– + 2.0V (On) (Note 11) ± 1.5 μA SHDN < V– + 0.4V (Off) (Note 11) –150 μA IS Supply Current SHDN > V– + 2.0V (On) (Note 11) 4.6 mA SHDN < V– + 0.4V (Off) (Note 11) 150 μA
0°C ≤ TA ≤ 70°C, VS = 5V, VCM = 2.5V, RL to 2.5V unless otherwise noted (Note 10). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) 2.5 mV ΔVOS/ΔT Input Offset Voltage Drift (Note 7) 10 15 μV/°C IOS Input Offset Current 500 nA IB Input Bias Current ±5 μA VCM Input Voltage Range (Positive) 3.5 V Input Voltage Range (Negative) 1.5 V CMRR Common Mode Rejection Ratio VCM = 1.5V to 3.5V 71 dB AVOL Large-Signal Voltage Gain VOUT = 1.5V to 3.5V, RL = 500Ω 0.7 V/mV VOUT = 1.5V to 3.5V, RL = 100Ω 0.5 V/mV VOUT Maximum Output Swing (Positive) RL = 500Ω, 30mV Overdrive 3.8 V RL = 100Ω, 30mV Overdrive 3.6 V Maximum Output Swing (Negative) RL = 500Ω, 30mV Overdrive 1.2 V RL = 100Ω, 30mV Overdrive 1.4 V IOUT Maximum Output Current VOUT = 3.5V or 1.5V, 30mV Overdrive ±20 mA ISC Output Short-Circuit Current VOUT = 2.5V, 1V Overdrive (Note 3) ±45 mA SR Slew Rate AV = –1 (Note 5) 150 V/μs GBW Gain Bandwidth Product f = 200kHz 55 MHz ISHDN SHDN Pin Current SHDN > V– + 2.0V (On) (Note 11) ±1.5 μA SHDN < V– + 0.4V (Off) (Note 11) –75 μA IS Supply Current SHDN > V– + 2.0V (On) (Note 11) 4.5 mA SHDN < V– + 0.4V (Off) (Note 11) 75 μA
– 40°C ≤ TA ≤ 85°C. VS = ±5V, VCM = 0V unless otherwise noted (Notes 8, 10). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) 3 mV ΔVOS/ΔT Input Offset Voltage Drift (Note 7) 10 30 μV/°C IOS Input Offset Current 600 nA IB Input Bias Current ±6 μA VCM Input Voltage Range (Positive) 3.5 V Input Voltage Range (Negative) –3.5 V CMRR Common Mode Rejection Ratio VCM = ±3.5V 72 dB Minimum Supply Voltage ±2 V PSRR Power Supply Rejection Ratio VS = ±2V to ±5.5V 75 dB AVOL Large-Signal Voltage Gain VOUT = ±3V, RL = 500Ω 0.8 V/mV VOUT = ±3V, RL = 100Ω 0.6 V/mV 1812fb 5
ELECTRICAL CHARACTERISTICS 0°C ≤ TA ≤ 70°C, VS = ± 5V, VCM = 0V unless otherwise noted (Note 10). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Output Short-Circuit Current VOUT = 0V, 1V Overdrive (Note 3) ±60 mA SR Slew Rate AV = –1 (Note 5) 400 V/μs GBW Gain Bandwidth Product f = 200kHz 65 MHz ISHDN SHDN Pin Current SHDN > V– + 2.0V (On) (Note 11) ± 1.5 μA SHDN < V– + 0.4V (Off) (Note 11) –150 μA IS Supply Current SHDN > V– + 2.0V (On) (Note 11) 4.6 mA SHDN < V– + 0.4V (Off) (Note 11) 150 μA
0°C ≤ TA ≤ 70°C, VS = 5V, VCM = 2.5V, RL to 2.5V unless otherwise noted (Note 10). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) 2.5 mV ΔVOS/ΔT Input Offset Voltage Drift (Note 7) 10 15 μV/°C IOS Input Offset Current 500 nA IB Input Bias Current ±5 μA VCM Input Voltage Range (Positive) 3.5 V Input Voltage Range (Negative) 1.5 V CMRR Common Mode Rejection Ratio VCM = 1.5V to 3.5V 71 dB AVOL Large-Signal Voltage Gain VOUT = 1.5V to 3.5V, RL = 500Ω 0.7 V/mV VOUT = 1.5V to 3.5V, RL = 100Ω 0.5 V/mV VOUT Maximum Output Swing (Positive) RL = 500Ω, 30mV Overdrive 3.8 V RL = 100Ω, 30mV Overdrive 3.6 V Maximum Output Swing (Negative) RL = 500Ω, 30mV Overdrive 1.2 V RL = 100Ω, 30mV Overdrive 1.4 V IOUT Maximum Output Current VOUT = 3.5V or 1.5V, 30mV Overdrive ±20 mA ISC Output Short-Circuit Current VOUT = 2.5V, 1V Overdrive (Note 3) ±45 mA SR Slew Rate AV = –1 (Note 5) 150 V/μs GBW Gain Bandwidth Product f = 200kHz 55 MHz ISHDN SHDN Pin Current SHDN > V– + 2.0V (On) (Note 11) ±1.5 μA SHDN < V– + 0.4V (Off) (Note 11) –75 μA IS Supply Current SHDN > V– + 2.0V (On) (Note 11) 4.5 mA SHDN < V– + 0.4V (Off) (Note 11) 75 μA
– 40°C ≤ TA ≤ 85°C. VS = ±5V, VCM = 0V unless otherwise noted (Notes 8, 10). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) 3 mV ΔVOS/ΔT Input Offset Voltage Drift (Note 7) 10 30 μV/°C IOS Input Offset Current 600 nA IB Input Bias Current ±6 μA VCM Input Voltage Range (Positive) 3.5 V Input Voltage Range (Negative) –3.5 V CMRR Common Mode Rejection Ratio VCM = ±3.5V 72 dB Minimum Supply Voltage ±2 V PSRR Power Supply Rejection Ratio VS = ±2V to ±5.5V 75 dB AVOL Large-Signal Voltage Gain VOUT = ±3V, RL = 500Ω 0.8 V/mV VOUT = ±3V, RL = 100Ω 0.6 V/mV 1812fb 5
