Datasheet LT1812 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 3mA, 100MHz, 750V/µs Operational Amplifier with Shutdown |
| Páginas / Página | 16 / 2 — ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| Formato / tamaño de archivo | PDF / 251 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1812

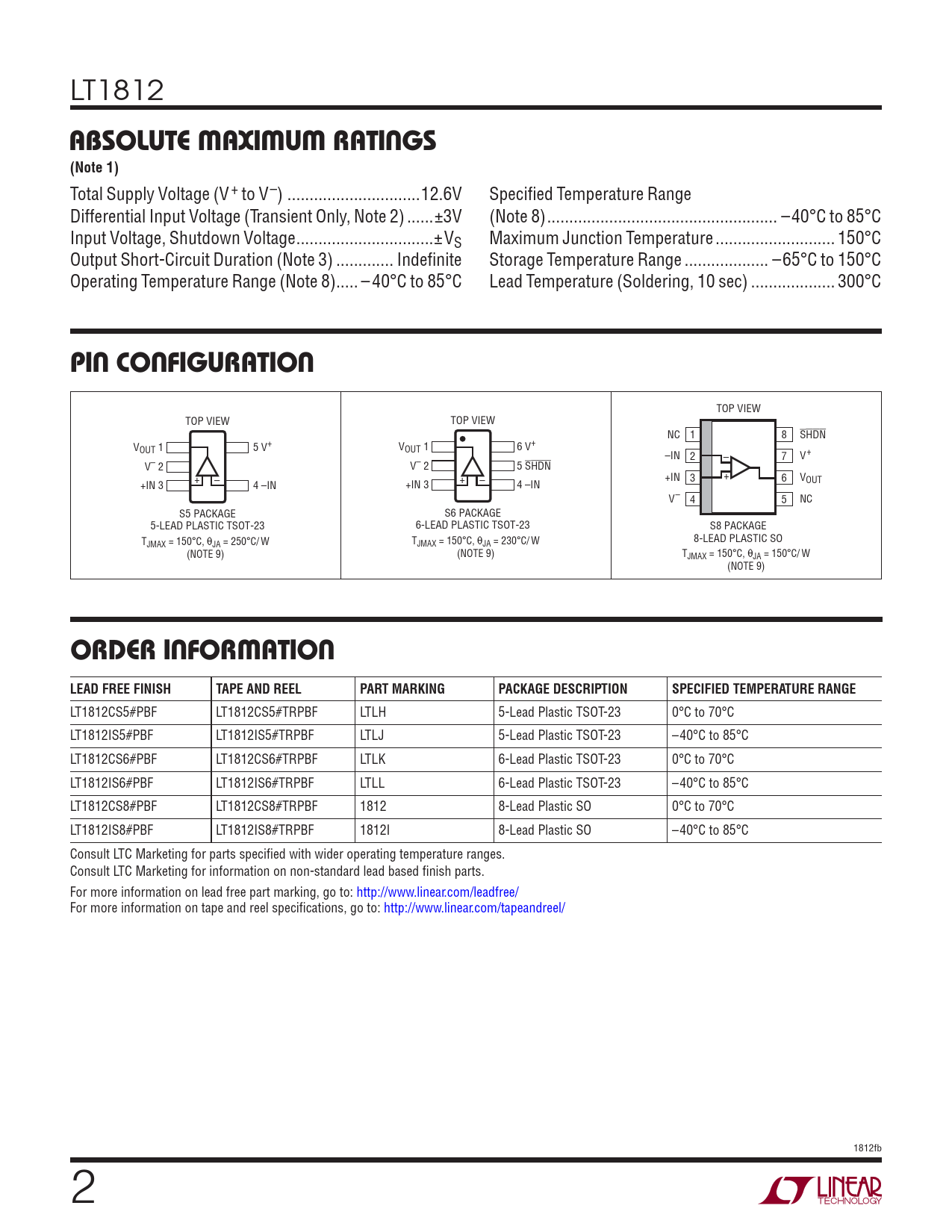

ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V + to V–) ..12.6V Specifi ed Temperature Range Differential Input Voltage (Transient Only, Note 2) ..±3V (Note 8) .. –40°C to 85°C Input Voltage, Shutdown Voltage ...±VS Maximum Junction Temperature ... 150°C Output Short-Circuit Duration (Note 3) ... Indefi nite Storage Temperature Range ... –65°C to 150°C Operating Temperature Range (Note 8)... – 40°C to 85°C Lead Temperature (Soldering, 10 sec) ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW TOP VIEW NC 1 8 SHDN V 5 V+ OUT 1 VOUT 1 6 V+ –IN 2 – 7 V+ V– 2 V– 2 5 SHDN + – + – +IN 3 + 6 VOUT +IN 3 4 –IN +IN 3 4 –IN V– 4 5 NC S5 PACKAGE S6 PACKAGE 5-LEAD PLASTIC TSOT-23 6-LEAD PLASTIC TSOT-23 S8 PACKAGE T 8-LEAD PLASTIC SO JMAX = 150°C, θJA = 250°C/ W TJMAX = 150°C, θJA = 230°C/ W (NOTE 9) (NOTE 9) TJMAX = 150°C, θJA = 150°C/ W (NOTE 9)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1812CS5#PBF LT1812CS5#TRPBF LTLH 5-Lead Plastic TSOT-23 0°C to 70°C LT1812IS5#PBF LT1812IS5#TRPBF LTLJ 5-Lead Plastic TSOT-23 –40°C to 85°C LT1812CS6#PBF LT1812CS6#TRPBF LTLK 6-Lead Plastic TSOT-23 0°C to 70°C LT1812IS6#PBF LT1812IS6#TRPBF LTLL 6-Lead Plastic TSOT-23 –40°C to 85°C LT1812CS8#PBF LT1812CS8#TRPBF 1812 8-Lead Plastic SO 0°C to 70°C LT1812IS8#PBF LT1812IS8#TRPBF 1812I 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1812fb 2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V + to V–) ..12.6V Specifi ed Temperature Range Differential Input Voltage (Transient Only, Note 2) ..±3V (Note 8) .. –40°C to 85°C Input Voltage, Shutdown Voltage ...±VS Maximum Junction Temperature ... 150°C Output Short-Circuit Duration (Note 3) ... Indefi nite Storage Temperature Range ... –65°C to 150°C Operating Temperature Range (Note 8)... – 40°C to 85°C Lead Temperature (Soldering, 10 sec) ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW TOP VIEW NC 1 8 SHDN V 5 V+ OUT 1 VOUT 1 6 V+ –IN 2 – 7 V+ V– 2 V– 2 5 SHDN + – + – +IN 3 + 6 VOUT +IN 3 4 –IN +IN 3 4 –IN V– 4 5 NC S5 PACKAGE S6 PACKAGE 5-LEAD PLASTIC TSOT-23 6-LEAD PLASTIC TSOT-23 S8 PACKAGE T 8-LEAD PLASTIC SO JMAX = 150°C, θJA = 250°C/ W TJMAX = 150°C, θJA = 230°C/ W (NOTE 9) (NOTE 9) TJMAX = 150°C, θJA = 150°C/ W (NOTE 9)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1812CS5#PBF LT1812CS5#TRPBF LTLH 5-Lead Plastic TSOT-23 0°C to 70°C LT1812IS5#PBF LT1812IS5#TRPBF LTLJ 5-Lead Plastic TSOT-23 –40°C to 85°C LT1812CS6#PBF LT1812CS6#TRPBF LTLK 6-Lead Plastic TSOT-23 0°C to 70°C LT1812IS6#PBF LT1812IS6#TRPBF LTLL 6-Lead Plastic TSOT-23 –40°C to 85°C LT1812CS8#PBF LT1812CS8#TRPBF 1812 8-Lead Plastic SO 0°C to 70°C LT1812IS8#PBF LT1812IS8#TRPBF 1812I 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1812fb 2
