Datasheet LT1813, LT1814 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Dual 3mA, 100MHz, 750V/µs Operational Amplifier |
| Páginas / Página | 16 / 4 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 251 Kb |
| Idioma del documento | Inglés |
ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
- LT1813CDD#PBF LT1813CDD#TRPBF LT1813CS8#PBF LT1813CS8#TRPBF LT1813DDD#PBF LT1813DDD#TRPBF LT1813DMS8#PBF LT1813DMS8#TRPBF LT1813DS8#PBF LT1813DS8#TRPBF LT1813HVCS8#PBF LT1813HVCS8#TRPBF LT1813HVDS8#PBF LT1813HVDS8#TRPBF LT1813HVIS8#PBF LT1813HVIS8#TRPBF LT1813IDD#PBF LT1813IDD#TRPBF LT1813IS8#PBF LT1813IS8#TRPBF
Versión de texto del documento

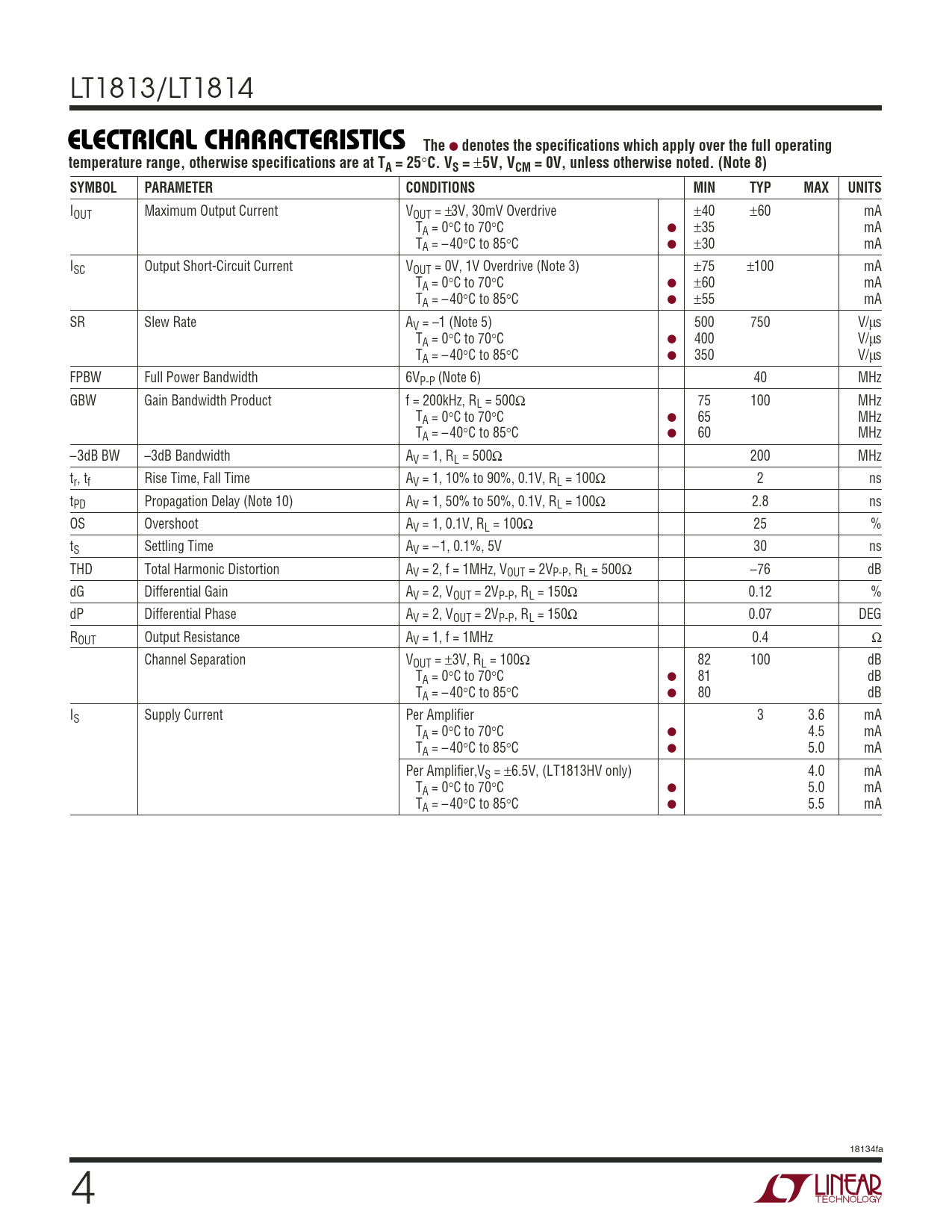

LT1813/LT1814
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
5V, VCM = 0V, unless otherwise noted. (Note 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IOUT Maximum Output Current VOUT = ±3V, 30mV Overdrive ±40 ±60 mA TA = 0°C to 70°C ● ±35 mA TA = – 40°C to 85°C ● ±30 mA ISC Output Short-Circuit Current VOUT = 0V, 1V Overdrive (Note 3) ±75 ±100 mA TA = 0°C to 70°C ● ±60 mA TA = – 40°C to 85°C ● ±55 mA SR Slew Rate AV = –1 (Note 5) 500 750 V/µs TA = 0°C to 70°C ● 400 V/µs TA = – 40°C to 85°C ● 350 V/µs FPBW Full Power Bandwidth 6VP-P (Note 6) 40 MHz GBW Gain Bandwidth Product f = 200kHz, RL = 500Ω 75 100 MHz TA = 0°C to 70°C ● 65 MHz TA = – 40°C to 85°C ● 60 MHz –3dB BW –3dB Bandwidth AV = 1, RL = 500Ω 200 MHz tr, tf Rise Time, Fall Time AV = 1, 10% to 90%, 0.1V, RL = 100Ω 2 ns tPD Propagation Delay (Note 10) AV = 1, 50% to 50%, 0.1V, RL = 100Ω 2.8 ns OS Overshoot AV = 1, 0.1V, RL = 100Ω 25 % tS Settling Time AV = –1, 0.1%, 5V 30 ns THD Total Harmonic Distortion AV = 2, f = 1MHz, VOUT = 2VP-P, RL = 500Ω –76 dB dG Differential Gain AV = 2, VOUT = 2VP-P, RL = 150Ω 0.12 % dP Differential Phase AV = 2, VOUT = 2VP-P, RL = 150Ω 0.07 DEG ROUT Output Resistance AV = 1, f = 1MHz 0.4 Ω Channel Separation VOUT = ±3V, RL = 100Ω 82 100 dB TA = 0°C to 70°C ● 81 dB TA = – 40°C to 85°C ● 80 dB IS Supply Current Per Amplifier 3 3.6 mA TA = 0°C to 70°C ● 4.5 mA TA = – 40°C to 85°C ● 5.0 mA Per Amplifier,VS = ±6.5V, (LT1813HV only) 4.0 mA TA = 0°C to 70°C ● 5.0 mA TA = – 40°C to 85°C ● 5.5 mA 18134fa 4
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
5V, VCM = 0V, unless otherwise noted. (Note 8) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IOUT Maximum Output Current VOUT = ±3V, 30mV Overdrive ±40 ±60 mA TA = 0°C to 70°C ● ±35 mA TA = – 40°C to 85°C ● ±30 mA ISC Output Short-Circuit Current VOUT = 0V, 1V Overdrive (Note 3) ±75 ±100 mA TA = 0°C to 70°C ● ±60 mA TA = – 40°C to 85°C ● ±55 mA SR Slew Rate AV = –1 (Note 5) 500 750 V/µs TA = 0°C to 70°C ● 400 V/µs TA = – 40°C to 85°C ● 350 V/µs FPBW Full Power Bandwidth 6VP-P (Note 6) 40 MHz GBW Gain Bandwidth Product f = 200kHz, RL = 500Ω 75 100 MHz TA = 0°C to 70°C ● 65 MHz TA = – 40°C to 85°C ● 60 MHz –3dB BW –3dB Bandwidth AV = 1, RL = 500Ω 200 MHz tr, tf Rise Time, Fall Time AV = 1, 10% to 90%, 0.1V, RL = 100Ω 2 ns tPD Propagation Delay (Note 10) AV = 1, 50% to 50%, 0.1V, RL = 100Ω 2.8 ns OS Overshoot AV = 1, 0.1V, RL = 100Ω 25 % tS Settling Time AV = –1, 0.1%, 5V 30 ns THD Total Harmonic Distortion AV = 2, f = 1MHz, VOUT = 2VP-P, RL = 500Ω –76 dB dG Differential Gain AV = 2, VOUT = 2VP-P, RL = 150Ω 0.12 % dP Differential Phase AV = 2, VOUT = 2VP-P, RL = 150Ω 0.07 DEG ROUT Output Resistance AV = 1, f = 1MHz 0.4 Ω Channel Separation VOUT = ±3V, RL = 100Ω 82 100 dB TA = 0°C to 70°C ● 81 dB TA = – 40°C to 85°C ● 80 dB IS Supply Current Per Amplifier 3 3.6 mA TA = 0°C to 70°C ● 4.5 mA TA = – 40°C to 85°C ● 5.0 mA Per Amplifier,VS = ±6.5V, (LT1813HV only) 4.0 mA TA = 0°C to 70°C ● 5.0 mA TA = – 40°C to 85°C ● 5.5 mA 18134fa 4
