DatasheetLT6200, LT6200-5 LT6200-10, LT6201 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | 165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family |
| Páginas / Página | 26 / 9 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 548 Kb |
| Idioma del documento | Inglés |
elecTrical characTerisTics. The. denotes the specifications which apply over – 40°C < TA < 85°C
Línea de modelo para esta hoja de datos
- LT6200CS6#PBF LT6200CS6#TRMPBF LT6200CS6#TRPBF LT6200CS6-10#PBF LT6200CS6-10#TRMPBF LT6200CS6-10#TRPBF LT6200CS6-5#PBF LT6200CS6-5#TRMPBF LT6200CS6-5#TRPBF LT6200CS8#PBF LT6200CS8#TRPBF LT6200CS8-10#PBF LT6200CS8-10#TRPBF LT6200CS8-5#PBF LT6200CS8-5#TRPBF LT6200IS6#PBF LT6200IS6#TRMPBF LT6200IS6#TRPBF LT6200IS6-10#PBF LT6200IS6-10#TRMPBF LT6200IS6-10#TRPBF LT6200IS6-5#PBF LT6200IS6-5#TRMPBF LT6200IS6-5#TRPBF LT6200IS8#PBF LT6200IS8#TRPBF LT6200IS8-10#PBF LT6200IS8-10#TRPBF LT6200IS8-5#PBF LT6200IS8-5#TRPBF
Versión de texto del documento

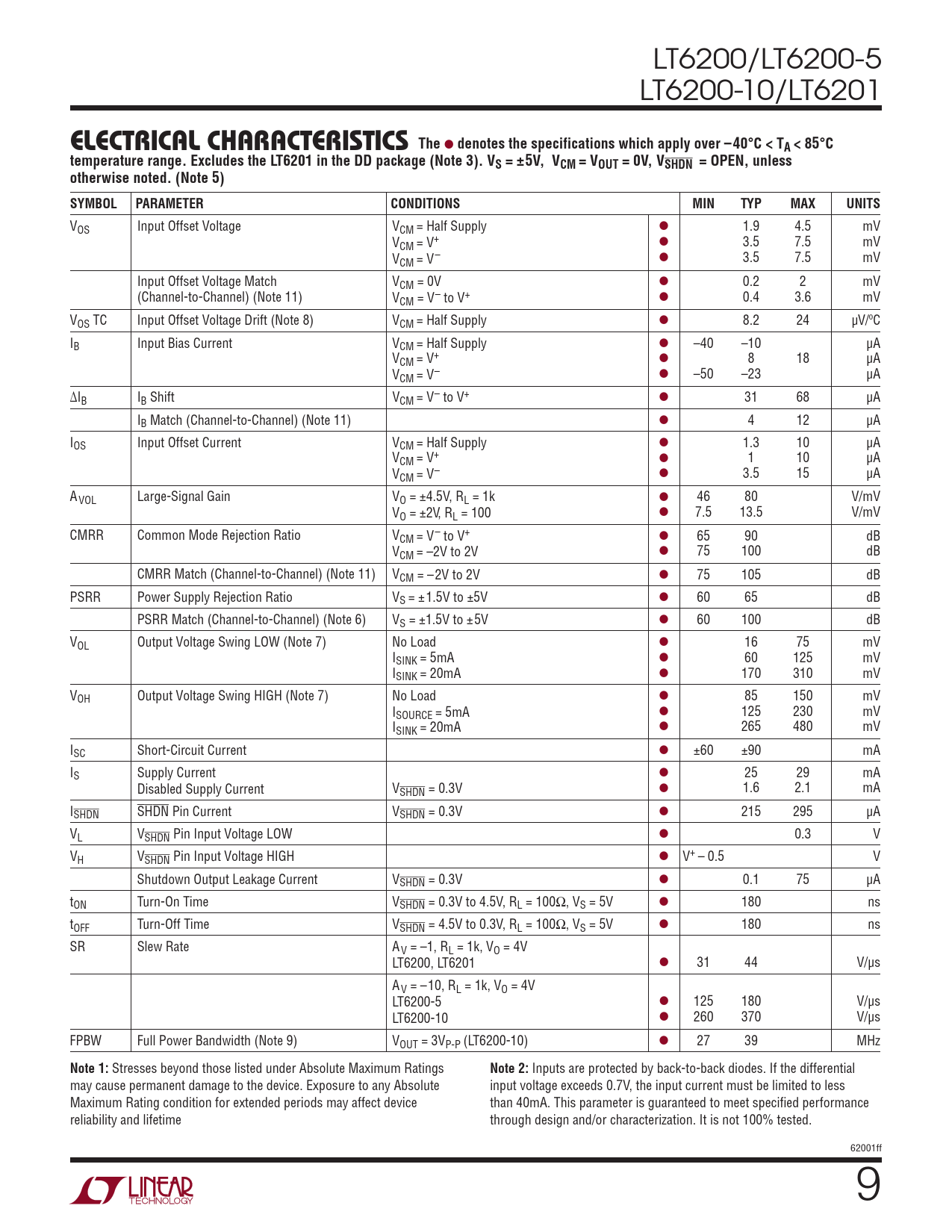

LT6200/LT6200-5 LT6200-10/LT6201
elecTrical characTerisTics The
●
denotes the specifications which apply over – 40°C < TA < 85°C temperature range. Excludes the LT6201 in the DD package (Note 3). VS = ±5V, VCM = VOUT = 0V, VSHDN = OPEN, unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = Half Supply l 1.9 4.5 mV VCM = V+ l 3.5 7.5 mV VCM = V– l 3.5 7.5 mV Input Offset Voltage Match VCM = 0V l 0.2 2 mV (Channel-to-Channel) (Note 11) VCM = V– to V+ l 0.4 3.6 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 8.2 24 µV/ºC IB Input Bias Current VCM = Half Supply l –40 –10 µA VCM = V+ l 8 18 µA VCM = V– l –50 –23 µA ∆IB IB Shift VCM = V– to V+ l 31 68 µA IB Match (Channel-to-Channel) (Note 11) l 4 12 µA IOS Input Offset Current VCM = Half Supply l 1.3 10 µA VCM = V+ l 1 10 µA VCM = V– l 3.5 15 µA AVOL Large-Signal Gain VO = ±4.5V, RL = 1k l 46 80 V/mV VO = ±2V, RL = 100 l 7.5 13.5 V/mV CMRR Common Mode Rejection Ratio VCM = V– to V+ l 65 90 dB VCM = –2V to 2V l 75 100 dB CMRR Match (Channel-to-Channel) (Note 11) VCM = –2V to 2V l 75 105 dB PSRR Power Supply Rejection Ratio VS = ±1.5V to ±5V l 60 65 dB PSRR Match (Channel-to-Channel) (Note 6) VS = ±1.5V to ±5V l 60 100 dB VOL Output Voltage Swing LOW (Note 7) No Load l 16 75 mV ISINK = 5mA l 60 125 mV ISINK = 20mA l 170 310 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 85 150 mV ISOURCE = 5mA l 125 230 mV ISINK = 20mA l 265 480 mV ISC Short-Circuit Current l ±60 ±90 mA IS Supply Current l 25 29 mA Disabled Supply Current VSHDN = 0.3V l 1.6 2.1 mA ISHDN SHDN Pin Current VSHDN = 0.3V l 215 295 µA VL VSHDN Pin Input Voltage LOW l 0.3 V VH VSHDN Pin Input Voltage HIGH l V+ – 0.5 V Shutdown Output Leakage Current VSHDN = 0.3V l 0.1 75 µA tON Turn-On Time VSHDN = 0.3V to 4.5V, RL = 100Ω, VS = 5V l 180 ns tOFF Turn-Off Time VSHDN = 4.5V to 0.3V, RL = 100Ω, VS = 5V l 180 ns SR Slew Rate AV = –1, RL = 1k, VO = 4V LT6200, LT6201 l 31 44 V/µs AV = –10, RL = 1k, VO = 4V LT6200-5 l 125 180 V/µs LT6200-10 l 260 370 V/µs FPBW Full Power Bandwidth (Note 9) VOUT = 3VP-P (LT6200-10) l 27 39 MHz
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 2:
Inputs are protected by back-to-back diodes. If the differential may cause permanent damage to the device. Exposure to any Absolute input voltage exceeds 0.7V, the input current must be limited to less Maximum Rating condition for extended periods may affect device than 40mA. This parameter is guaranteed to meet specified performance reliability and lifetime through design and/or characterization. It is not 100% tested. 62001ff 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Revision History Typical Application Related Parts
