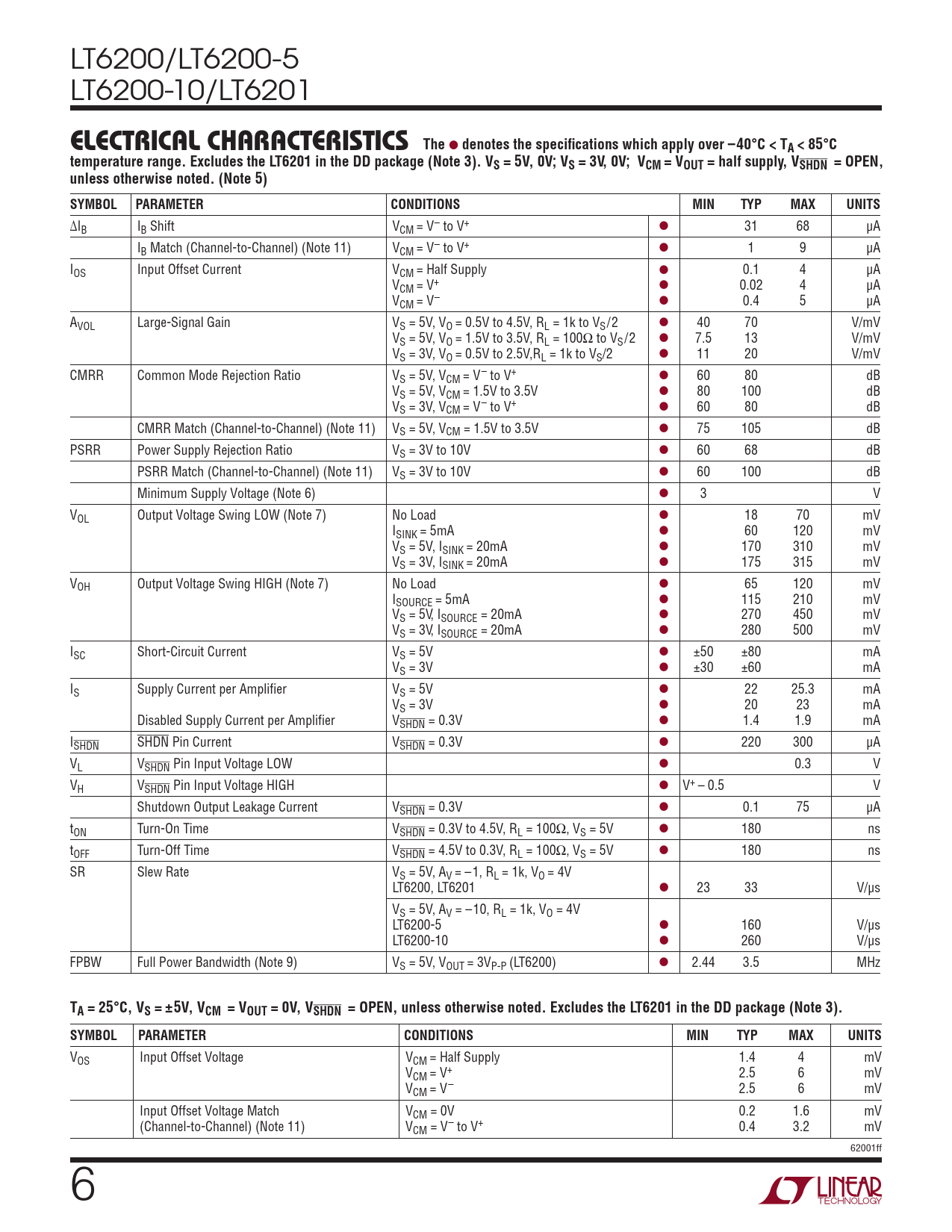

elecTrical characTerisTics. The. denotes the specifications which apply over –40°C < TA < 85°C

elecTrical characTerisTics The denotes the specifications which apply over –40°C < TA < 85°C

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT6200/LT6200-5 LT6200-10/LT6201
elecTrical characTerisTics The

denotes the specifications which apply over –40°C < TA < 85°C temperature range. Excludes the LT6201 in the DD package (Note 3). VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, VSHDN = OPEN, unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
∆IB IB Shift VCM = V– to V+ l 31 68 µA IB Match (Channel-to-Channel) (Note 11) VCM = V– to V+ l 1 9 µA IOS Input Offset Current VCM = Half Supply l 0.1 4 µA VCM = V+ l 0.02 4 µA VCM = V– l 0.4 5 µA AVOL Large-Signal Gain VS = 5V, VO = 0.5V to 4.5V, RL = 1k to VS/2 l 40 70 V/mV VS = 5V, VO = 1.5V to 3.5V, RL = 100Ω to VS/2 l 7.5 13 V/mV VS = 3V, VO = 0.5V to 2.5V,RL = 1k to VS/2 l 11 20 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– to V+ l 60 80 dB VS = 5V, VCM = 1.5V to 3.5V l 80 100 dB VS = 3V, VCM = V– to V+ l 60 80 dB CMRR Match (Channel-to-Channel) (Note 11) VS = 5V, VCM = 1.5V to 3.5V l 75 105 dB PSRR Power Supply Rejection Ratio VS = 3V to 10V l 60 68 dB PSRR Match (Channel-to-Channel) (Note 11) VS = 3V to 10V l 60 100 dB Minimum Supply Voltage (Note 6) l 3 V VOL Output Voltage Swing LOW (Note 7) No Load l 18 70 mV ISINK = 5mA l 60 120 mV VS = 5V, ISINK = 20mA l 170 310 mV VS = 3V, ISINK = 20mA l 175 315 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 65 120 mV ISOURCE = 5mA l 115 210 mV VS = 5V, ISOURCE = 20mA l 270 450 mV VS = 3V, ISOURCE = 20mA l 280 500 mV ISC Short-Circuit Current VS = 5V l ±50 ±80 mA VS = 3V l ±30 ±60 mA IS Supply Current per Amplifier VS = 5V l 22 25.3 mA VS = 3V l 20 23 mA Disabled Supply Current per Amplifier VSHDN = 0.3V l 1.4 1.9 mA ISHDN SHDN Pin Current VSHDN = 0.3V l 220 300 µA VL VSHDN Pin Input Voltage LOW l 0.3 V VH VSHDN Pin Input Voltage HIGH l V+ – 0.5 V Shutdown Output Leakage Current VSHDN = 0.3V l 0.1 75 µA tON Turn-On Time VSHDN = 0.3V to 4.5V, RL = 100Ω, VS = 5V l 180 ns tOFF Turn-Off Time VSHDN = 4.5V to 0.3V, RL = 100Ω, VS = 5V l 180 ns SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V LT6200, LT6201 l 23 33 V/µs VS = 5V, AV = –10, RL = 1k, VO = 4V LT6200-5 l 160 V/µs LT6200-10 l 260 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P (LT6200) l 2.44 3.5 MHz
TA = 25°C, VS = ±5V, VCM = VOUT = 0V, VSHDN = OPEN, unless otherwise noted. Excludes the LT6201 in the DD package (Note 3). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = Half Supply 1.4 4 mV VCM = V+ 2.5 6 mV VCM = V– 2.5 6 mV Input Offset Voltage Match VCM = 0V 0.2 1.6 mV (Channel-to-Channel) (Note 11) VCM = V– to V+ 0.4 3.2 mV 62001ff 6 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Revision History Typical Application Related Parts
