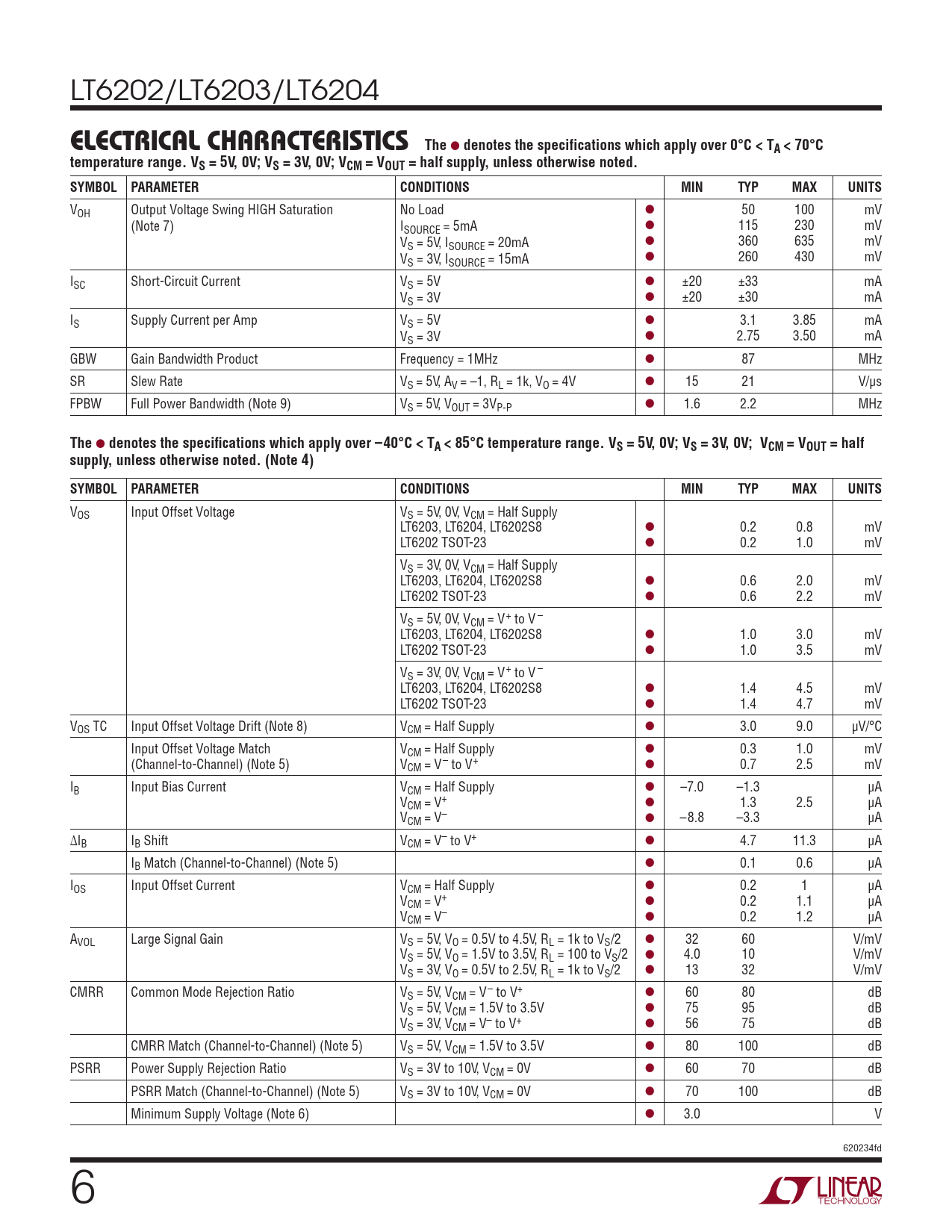

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over 0°C < TA < 70°C

ELECTRICAL CHARACTERISTICS The denotes the specifications which apply over 0°C < TA < 70°C

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT6202/LT6203/LT6204
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over 0°C < TA < 70°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOH Output Voltage Swing HIGH Saturation No Load l 50 100 mV (Note 7) ISOURCE = 5mA l 115 230 mV VS = 5V, ISOURCE = 20mA l 360 635 mV VS = 3V, ISOURCE = 15mA l 260 430 mV ISC Short-Circuit Current VS = 5V l ±20 ±33 mA VS = 3V l ±20 ±30 mA IS Supply Current per Amp VS = 5V l 3.1 3.85 mA VS = 3V l 2.75 3.50 mA GBW Gain Bandwidth Product Frequency = 1MHz l 87 MHz SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V l 15 21 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P l 1.6 2.2 MHz
