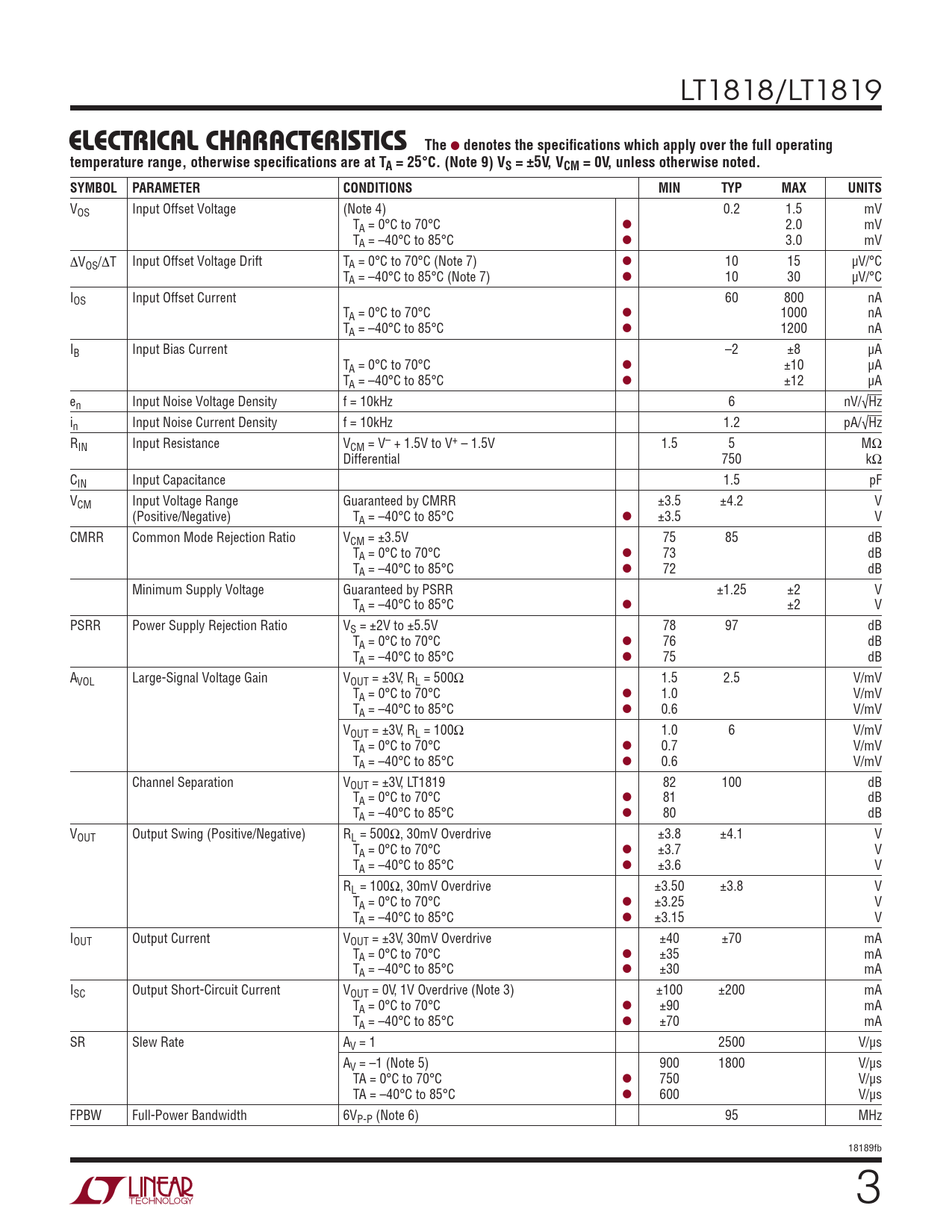

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating

ELECTRICAL CHARACTERISTICS The denotes the specifi cations which apply over the full operating

Línea de modelo para esta hoja de datos

Versión de texto del documento

LT1818/LT1819
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 9) VS = ±5V, VCM = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) 0.2 1.5 mV TA = 0°C to 70°C l 2.0 mV TA = –40°C to 85°C l 3.0 mV ΔV l OS/ΔT Input Offset Voltage Drift TA = 0°C to 70°C (Note 7) 10 15 μV/°C TA = –40°C to 85°C (Note 7) l 10 30 μV/°C IOS Input Offset Current 60 800 nA TA = 0°C to 70°C l 1000 nA TA = –40°C to 85°C l 1200 nA IB Input Bias Current –2 ±8 μA TA = 0°C to 70°C l ±10 μA TA = –40°C to 85°C l ±12 μA en Input Noise Voltage Density f = 10kHz 6 nV/√Hz in Input Noise Current Density f = 10kHz 1.2 pA/√Hz RIN Input Resistance VCM = V– + 1.5V to V+ – 1.5V 1.5 5 MΩ Differential 750 kΩ CIN Input Capacitance 1.5 pF VCM Input Voltage Range Guaranteed by CMRR ±3.5 ±4.2 V (Positive/Negative) TA = –40°C to 85°C l ±3.5 V CMRR Common Mode Rejection Ratio VCM = ±3.5V 75 85 dB TA = 0°C to 70°C l 73 dB TA = –40°C to 85°C l 72 dB Minimum Supply Voltage Guaranteed by PSRR ±1.25 ±2 V TA = –40°C to 85°C l ±2 V PSRR Power Supply Rejection Ratio VS = ±2V to ±5.5V 78 97 dB TA = 0°C to 70°C l 76 dB TA = –40°C to 85°C l 75 dB AVOL Large-Signal Voltage Gain VOUT = ±3V, RL = 500Ω 1.5 2.5 V/mV TA = 0°C to 70°C l 1.0 V/mV TA = –40°C to 85°C l 0.6 V/mV VOUT = ±3V, RL = 100Ω 1.0 6 V/mV TA = 0°C to 70°C l 0.7 V/mV TA = –40°C to 85°C l 0.6 V/mV Channel Separation VOUT = ±3V, LT1819 82 100 dB TA = 0°C to 70°C l 81 dB TA = –40°C to 85°C l 80 dB VOUT Output Swing (Positive/Negative) RL = 500Ω, 30mV Overdrive ±3.8 ±4.1 V TA = 0°C to 70°C l ±3.7 V TA = –40°C to 85°C l ±3.6 V RL = 100Ω, 30mV Overdrive ±3.50 ±3.8 V TA = 0°C to 70°C l ±3.25 V TA = –40°C to 85°C l ±3.15 V IOUT Output Current VOUT = ±3V, 30mV Overdrive ±40 ±70 mA TA = 0°C to 70°C l ±35 mA TA = –40°C to 85°C l ±30 mA ISC Output Short-Circuit Current VOUT = 0V, 1V Overdrive (Note 3) ±100 ±200 mA TA = 0°C to 70°C l ±90 mA TA = –40°C to 85°C l ±70 mA SR Slew Rate AV = 1 2500 V/μs AV = –1 (Note 5) 900 1800 V/μs TA = 0°C to 70°C l 750 V/μs TA = –40°C to 85°C l 600 V/μs FPBW Full-Power Bandwidth 6VP-P (Note 6) 95 MHz 18189fb 3 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION E LECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION TYPICAL APPLICATION SIMPLIFIED SCHEMATIC PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
