Datasheet LT6220, LT6221, LT6222 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | Single/Dual/Quad 60MHz, 20V/µs, Low Power, Rail-to-Rail Input and Output Precision Op Amps |
| Páginas / Página | 22 / 7 — e lecTrical characTerisTics The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 373 Kb |
| Idioma del documento | Inglés |
e lecTrical characTerisTics The. denotes the specifications which apply over the 0°C ≤ TA ≤ 70°C
Línea de modelo para esta hoja de datos
- LT6220CS5#PBF LT6220CS5#TRMPBF LT6220CS5#TRPBF LT6220CS8#PBF LT6220CS8#TRPBF LT6220IS5#PBF LT6220IS5#TRMPBF LT6220IS5#TRPBF LT6220IS8#PBF LT6220IS8#TRPBF
Versión de texto del documento
LT6220/LT6221/LT6222
e lecTrical characTerisTics The
l

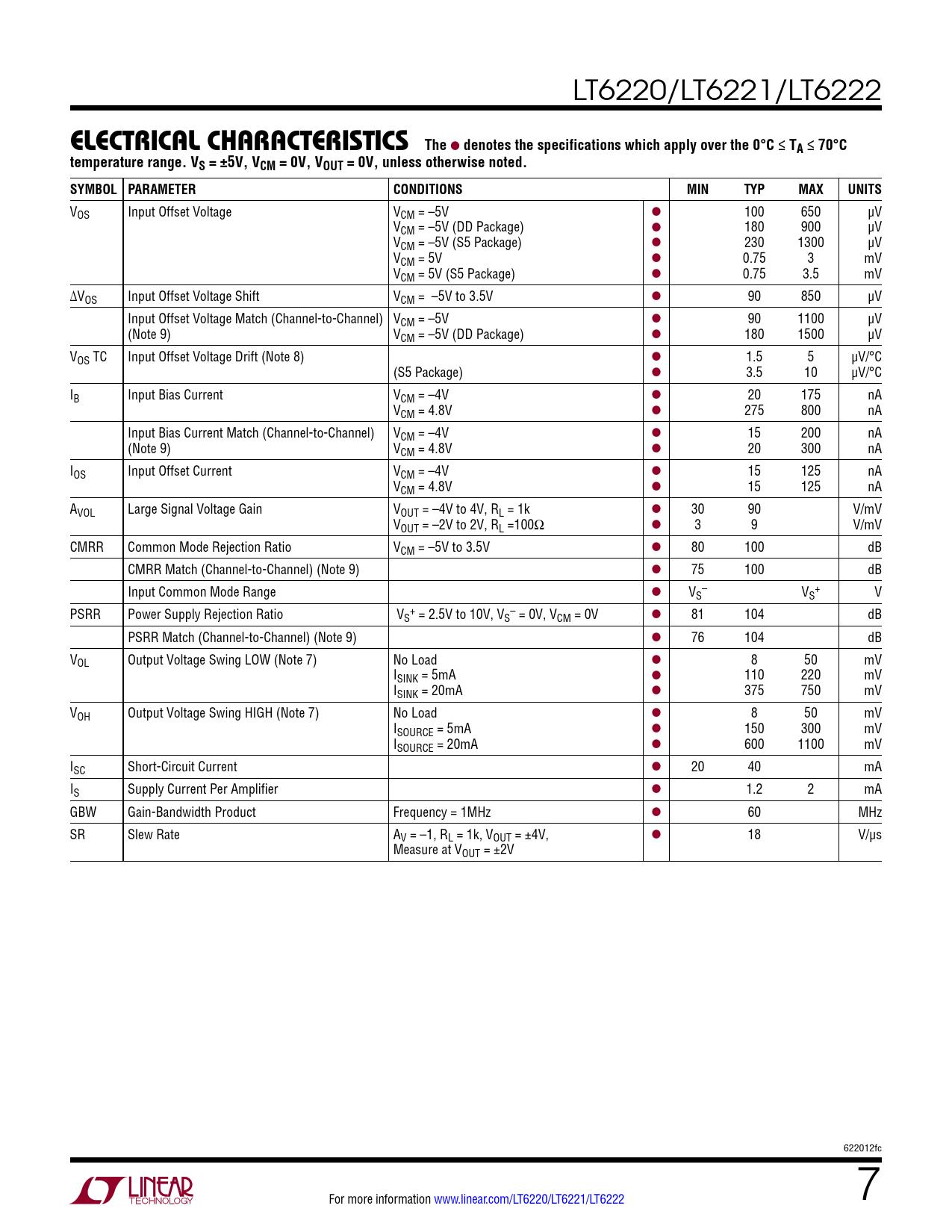

denotes the specifications which apply over the 0°C ≤ TA ≤ 70°C temperature range. VS = ±5V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = –5V l 100 650 µV VCM = –5V (DD Package) l 180 900 µV VCM = –5V (S5 Package) l 230 1300 µV VCM = 5V l 0.75 3 mV VCM = 5V (S5 Package) l 0.75 3.5 mV ∆VOS Input Offset Voltage Shift VCM = –5V to 3.5V l 90 850 µV Input Offset Voltage Match (Channel-to-Channel) VCM = –5V l 90 1100 µV (Note 9) VCM = –5V (DD Package) l 180 1500 µV VOS TC Input Offset Voltage Drift (Note 8) l 1.5 5 µV/°C (S5 Package) l 3.5 10 µV/°C IB Input Bias Current VCM = –4V l 20 175 nA VCM = 4.8V l 275 800 nA Input Bias Current Match (Channel-to-Channel) VCM = –4V l 15 200 nA (Note 9) VCM = 4.8V l 20 300 nA IOS Input Offset Current VCM = –4V l 15 125 nA VCM = 4.8V l 15 125 nA AVOL Large Signal Voltage Gain VOUT = –4V to 4V, RL = 1k l 30 90 V/mV VOUT = –2V to 2V, RL =100Ω l 3 9 V/mV CMRR Common Mode Rejection Ratio VCM = –5V to 3.5V l 80 100 dB CMRR Match (Channel-to-Channel) (Note 9) l 75 100 dB Input Common Mode Range l V – + S VS V PSRR Power Supply Rejection Ratio V + – S = 2.5V to 10V, VS = 0V, VCM = 0V l 81 104 dB PSRR Match (Channel-to-Channel) (Note 9) l 76 104 dB VOL Output Voltage Swing LOW (Note 7) No Load l 8 50 mV ISINK = 5mA l 110 220 mV ISINK = 20mA l 375 750 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 8 50 mV ISOURCE = 5mA l 150 300 mV ISOURCE = 20mA l 600 1100 mV ISC Short-Circuit Current l 20 40 mA IS Supply Current Per Amplifier l 1.2 2 mA GBW Gain-Bandwidth Product Frequency = 1MHz l 60 MHz SR Slew Rate AV = –1, RL = 1k, VOUT = ±4V, l 18 V/µs Measure at VOUT = ±2V 622012fc For more information www.linear.com/LT6220/LT6221/LT6222 7 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
