Datasheet LT6220, LT6221, LT6222 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Single/Dual/Quad 60MHz, 20V/µs, Low Power, Rail-to-Rail Input and Output Precision Op Amps |
| Páginas / Página | 22 / 5 — e lecTrical characTerisTics The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 373 Kb |
| Idioma del documento | Inglés |

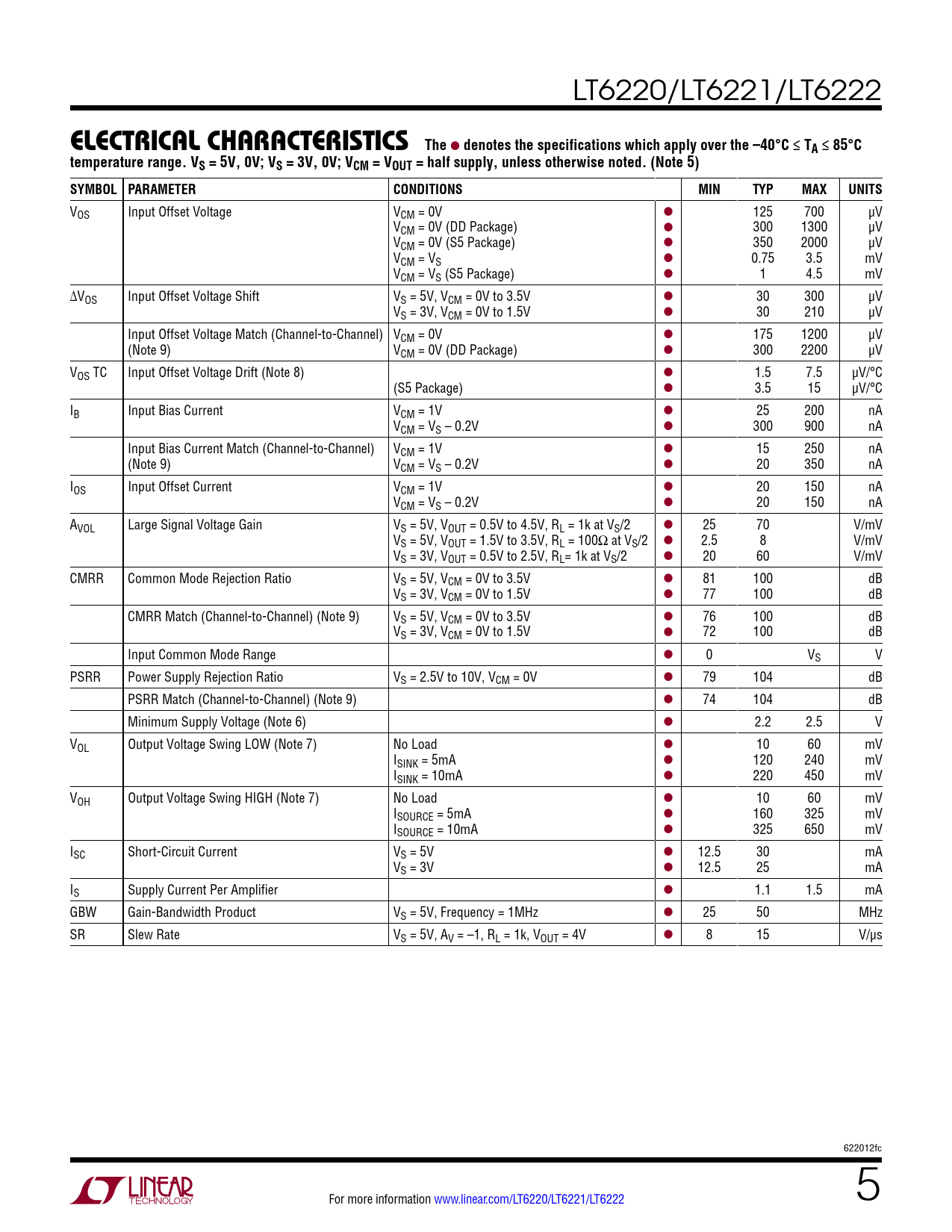

e lecTrical characTerisTics The. denotes the specifications which apply over the –40°C ≤ TA ≤ 85°C
Línea de modelo para esta hoja de datos
- LT6220CS5#PBF LT6220CS5#TRMPBF LT6220CS5#TRPBF LT6220CS8#PBF LT6220CS8#TRPBF LT6220IS5#PBF LT6220IS5#TRMPBF LT6220IS5#TRPBF LT6220IS8#PBF LT6220IS8#TRPBF
Versión de texto del documento
LT6220/LT6221/LT6222
e lecTrical characTerisTics The
l
denotes the specifications which apply over the –40°C ≤ TA ≤ 85°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = 0V l 125 700 µV VCM = 0V (DD Package) l 300 1300 µV VCM = 0V (S5 Package) l 350 2000 µV VCM = VS l 0.75 3.5 mV VCM = VS (S5 Package) l 1 4.5 mV ∆VOS Input Offset Voltage Shift VS = 5V, VCM = 0V to 3.5V l 30 300 µV VS = 3V, VCM = 0V to 1.5V l 30 210 µV Input Offset Voltage Match (Channel-to-Channel) VCM = 0V l 175 1200 µV (Note 9) VCM = 0V (DD Package) l 300 2200 µV VOS TC Input Offset Voltage Drift (Note 8) l 1.5 7.5 µV/°C (S5 Package) l 3.5 15 µV/°C IB Input Bias Current VCM = 1V l 25 200 nA VCM = VS – 0.2V l 300 900 nA Input Bias Current Match (Channel-to-Channel) VCM = 1V l 15 250 nA (Note 9) VCM = VS – 0.2V l 20 350 nA IOS Input Offset Current VCM = 1V l 20 150 nA VCM = VS – 0.2V l 20 150 nA AVOL Large Signal Voltage Gain VS = 5V, VOUT = 0.5V to 4.5V, RL = 1k at VS/2 l 25 70 V/mV VS = 5V, VOUT = 1.5V to 3.5V, RL = 100Ω at VS/2 l 2.5 8 V/mV VS = 3V, VOUT = 0.5V to 2.5V, RL= 1k at VS/2 l 20 60 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = 0V to 3.5V l 81 100 dB VS = 3V, VCM = 0V to 1.5V l 77 100 dB CMRR Match (Channel-to-Channel) (Note 9) VS = 5V, VCM = 0V to 3.5V l 76 100 dB VS = 3V, VCM = 0V to 1.5V l 72 100 dB Input Common Mode Range l 0 VS V PSRR Power Supply Rejection Ratio VS = 2.5V to 10V, VCM = 0V l 79 104 dB PSRR Match (Channel-to-Channel) (Note 9) l 74 104 dB Minimum Supply Voltage (Note 6) l 2.2 2.5 V VOL Output Voltage Swing LOW (Note 7) No Load l 10 60 mV ISINK = 5mA l 120 240 mV ISINK = 10mA l 220 450 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 10 60 mV ISOURCE = 5mA l 160 325 mV ISOURCE = 10mA l 325 650 mV ISC Short-Circuit Current VS = 5V l 12.5 30 mA VS = 3V l 12.5 25 mA IS Supply Current Per Amplifier l 1.1 1.5 mA GBW Gain-Bandwidth Product VS = 5V, Frequency = 1MHz l 25 50 MHz SR Slew Rate VS = 5V, AV = –1, RL = 1k, VOUT = 4V l 8 15 V/µs 622012fc For more information www.linear.com/LT6220/LT6221/LT6222 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
e lecTrical characTerisTics The
l
denotes the specifications which apply over the –40°C ≤ TA ≤ 85°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = 0V l 125 700 µV VCM = 0V (DD Package) l 300 1300 µV VCM = 0V (S5 Package) l 350 2000 µV VCM = VS l 0.75 3.5 mV VCM = VS (S5 Package) l 1 4.5 mV ∆VOS Input Offset Voltage Shift VS = 5V, VCM = 0V to 3.5V l 30 300 µV VS = 3V, VCM = 0V to 1.5V l 30 210 µV Input Offset Voltage Match (Channel-to-Channel) VCM = 0V l 175 1200 µV (Note 9) VCM = 0V (DD Package) l 300 2200 µV VOS TC Input Offset Voltage Drift (Note 8) l 1.5 7.5 µV/°C (S5 Package) l 3.5 15 µV/°C IB Input Bias Current VCM = 1V l 25 200 nA VCM = VS – 0.2V l 300 900 nA Input Bias Current Match (Channel-to-Channel) VCM = 1V l 15 250 nA (Note 9) VCM = VS – 0.2V l 20 350 nA IOS Input Offset Current VCM = 1V l 20 150 nA VCM = VS – 0.2V l 20 150 nA AVOL Large Signal Voltage Gain VS = 5V, VOUT = 0.5V to 4.5V, RL = 1k at VS/2 l 25 70 V/mV VS = 5V, VOUT = 1.5V to 3.5V, RL = 100Ω at VS/2 l 2.5 8 V/mV VS = 3V, VOUT = 0.5V to 2.5V, RL= 1k at VS/2 l 20 60 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = 0V to 3.5V l 81 100 dB VS = 3V, VCM = 0V to 1.5V l 77 100 dB CMRR Match (Channel-to-Channel) (Note 9) VS = 5V, VCM = 0V to 3.5V l 76 100 dB VS = 3V, VCM = 0V to 1.5V l 72 100 dB Input Common Mode Range l 0 VS V PSRR Power Supply Rejection Ratio VS = 2.5V to 10V, VCM = 0V l 79 104 dB PSRR Match (Channel-to-Channel) (Note 9) l 74 104 dB Minimum Supply Voltage (Note 6) l 2.2 2.5 V VOL Output Voltage Swing LOW (Note 7) No Load l 10 60 mV ISINK = 5mA l 120 240 mV ISINK = 10mA l 220 450 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 10 60 mV ISOURCE = 5mA l 160 325 mV ISOURCE = 10mA l 325 650 mV ISC Short-Circuit Current VS = 5V l 12.5 30 mA VS = 3V l 12.5 25 mA IS Supply Current Per Amplifier l 1.1 1.5 mA GBW Gain-Bandwidth Product VS = 5V, Frequency = 1MHz l 25 50 MHz SR Slew Rate VS = 5V, AV = –1, RL = 1k, VOUT = 4V l 8 15 V/µs 622012fc For more information www.linear.com/LT6220/LT6221/LT6222 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
