Datasheet LT6230, LT6230-10, LT6231, LT6232 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 215MHz, Rail-to-Rail Output, 1.1nV/√Hz, 3.5mA Op Amp Family |
| Páginas / Página | 24 / 8 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 804 Kb |
| Idioma del documento | Inglés |
elecTrical characTerisTics. The. denotes the specifications which apply over the 0°C < TA < 70°C
Línea de modelo para esta hoja de datos
- LT6230CS6#PBF LT6230CS6#TRMPBF LT6230CS6#TRPBF LT6230CS6-10#PBF LT6230CS6-10#TRMPBF LT6230CS6-10#TRPBF LT6230IS6#PBF LT6230IS6#TRMPBF LT6230IS6#TRPBF LT6230IS6-10#PBF LT6230IS6-10#TRMPBF LT6230IS6-10#TRPBF
Versión de texto del documento

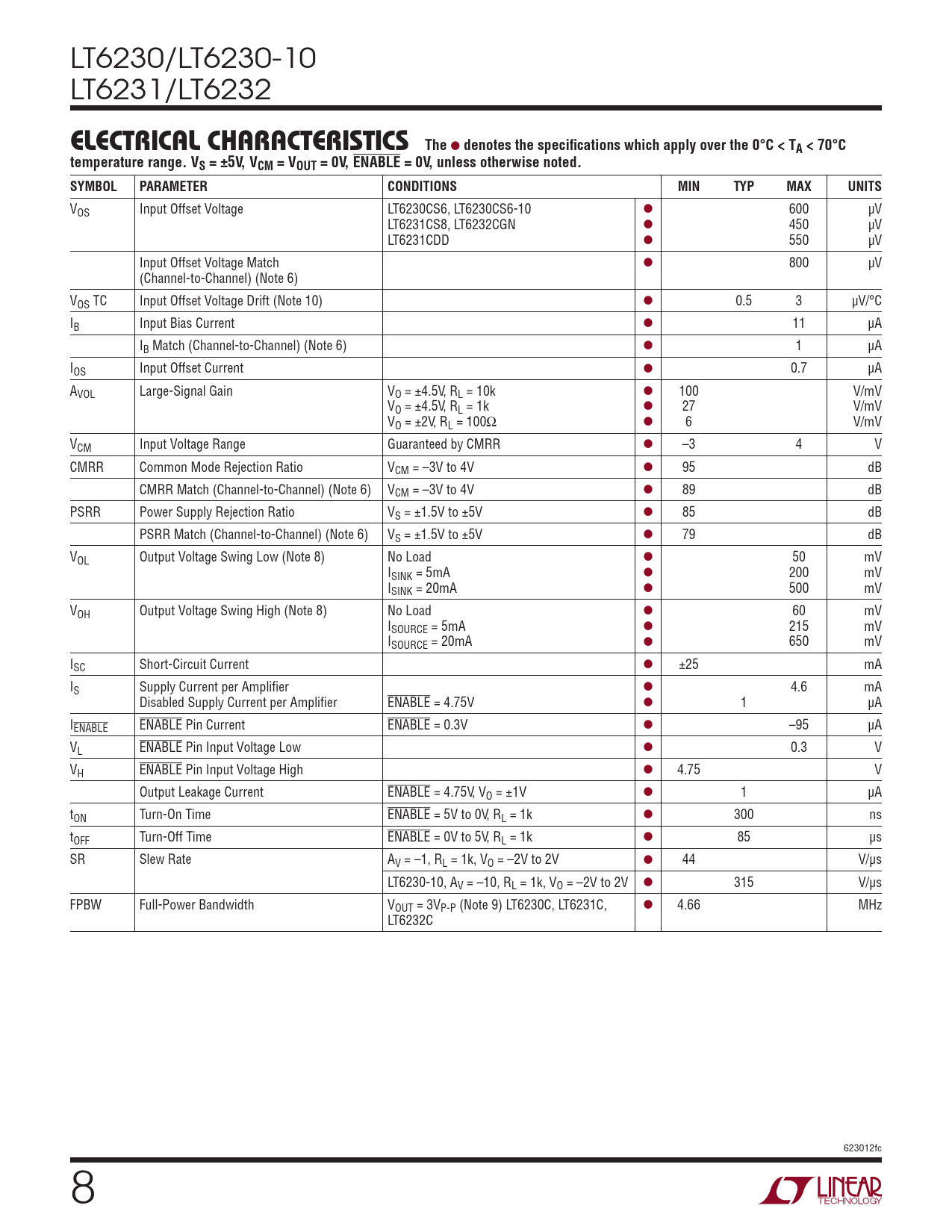

LT6230/LT6230-10 LT6231/LT6232
elecTrical characTerisTics The
l
denotes the specifications which apply over the 0°C < TA < 70°C temperature range. VS = ±5V, VCM = VOUT = 0V, ENABLE = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage LT6230CS6, LT6230CS6-10 l 600 µV LT6231CS8, LT6232CGN l 450 µV LT6231CDD l 550 µV Input Offset Voltage Match l 800 µV (Channel-to-Channel) (Note 6) VOS TC Input Offset Voltage Drift (Note 10) l 0.5 3 µV/°C IB Input Bias Current l 11 µA IB Match (Channel-to-Channel) (Note 6) l 1 µA IOS Input Offset Current l 0.7 µA AVOL Large-Signal Gain VO = ±4.5V, RL = 10k l 100 V/mV VO = ±4.5V, RL = 1k l 27 V/mV VO = ±2V, RL = 100Ω l 6 V/mV VCM Input Voltage Range Guaranteed by CMRR l –3 4 V CMRR Common Mode Rejection Ratio VCM = –3V to 4V l 95 dB CMRR Match (Channel-to-Channel) (Note 6) VCM = –3V to 4V l 89 dB PSRR Power Supply Rejection Ratio VS = ±1.5V to ±5V l 85 dB PSRR Match (Channel-to-Channel) (Note 6) VS = ±1.5V to ±5V l 79 dB VOL Output Voltage Swing Low (Note 8) No Load l 50 mV ISINK = 5mA l 200 mV ISINK = 20mA l 500 mV VOH Output Voltage Swing High (Note 8) No Load l 60 mV ISOURCE = 5mA l 215 mV ISOURCE = 20mA l 650 mV ISC Short-Circuit Current l ±25 mA IS Supply Current per Amplifier l 4.6 mA Disabled Supply Current per Amplifier ENABLE = 4.75V l 1 µA IENABLE ENABLE Pin Current ENABLE = 0.3V l –95 µA VL ENABLE Pin Input Voltage Low l 0.3 V VH ENABLE Pin Input Voltage High l 4.75 V Output Leakage Current ENABLE = 4.75V, VO = ±1V l 1 µA tON Turn-On Time ENABLE = 5V to 0V, RL = 1k l 300 ns tOFF Turn-Off Time ENABLE = 0V to 5V, RL = 1k l 85 µs SR Slew Rate AV = –1, RL = 1k, VO = –2V to 2V l 44 V/µs LT6230-10, AV = –10, RL = 1k, VO = –2V to 2V l 315 V/µs FPBW Full-Power Bandwidth VOUT = 3VP-P (Note 9) LT6230C, LT6231C, l 4.66 MHz LT6232C 623012fc 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Applications Related Parts
elecTrical characTerisTics The
l
denotes the specifications which apply over the 0°C < TA < 70°C temperature range. VS = ±5V, VCM = VOUT = 0V, ENABLE = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage LT6230CS6, LT6230CS6-10 l 600 µV LT6231CS8, LT6232CGN l 450 µV LT6231CDD l 550 µV Input Offset Voltage Match l 800 µV (Channel-to-Channel) (Note 6) VOS TC Input Offset Voltage Drift (Note 10) l 0.5 3 µV/°C IB Input Bias Current l 11 µA IB Match (Channel-to-Channel) (Note 6) l 1 µA IOS Input Offset Current l 0.7 µA AVOL Large-Signal Gain VO = ±4.5V, RL = 10k l 100 V/mV VO = ±4.5V, RL = 1k l 27 V/mV VO = ±2V, RL = 100Ω l 6 V/mV VCM Input Voltage Range Guaranteed by CMRR l –3 4 V CMRR Common Mode Rejection Ratio VCM = –3V to 4V l 95 dB CMRR Match (Channel-to-Channel) (Note 6) VCM = –3V to 4V l 89 dB PSRR Power Supply Rejection Ratio VS = ±1.5V to ±5V l 85 dB PSRR Match (Channel-to-Channel) (Note 6) VS = ±1.5V to ±5V l 79 dB VOL Output Voltage Swing Low (Note 8) No Load l 50 mV ISINK = 5mA l 200 mV ISINK = 20mA l 500 mV VOH Output Voltage Swing High (Note 8) No Load l 60 mV ISOURCE = 5mA l 215 mV ISOURCE = 20mA l 650 mV ISC Short-Circuit Current l ±25 mA IS Supply Current per Amplifier l 4.6 mA Disabled Supply Current per Amplifier ENABLE = 4.75V l 1 µA IENABLE ENABLE Pin Current ENABLE = 0.3V l –95 µA VL ENABLE Pin Input Voltage Low l 0.3 V VH ENABLE Pin Input Voltage High l 4.75 V Output Leakage Current ENABLE = 4.75V, VO = ±1V l 1 µA tON Turn-On Time ENABLE = 5V to 0V, RL = 1k l 300 ns tOFF Turn-Off Time ENABLE = 0V to 5V, RL = 1k l 85 µs SR Slew Rate AV = –1, RL = 1k, VO = –2V to 2V l 44 V/µs LT6230-10, AV = –10, RL = 1k, VO = –2V to 2V l 315 V/µs FPBW Full-Power Bandwidth VOUT = 3VP-P (Note 9) LT6230C, LT6231C, l 4.66 MHz LT6232C 623012fc 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Applications Related Parts
