| Fabricante | Analog Devices |
| Descripción | Rail-to-Rail Output 215MHz, 1.1nV/√Hz Op Amp/SAR ADC Driver |
| Páginas / Página | 26 / 8 — elecTrical characTerisTics TA = 25°C, VS = ±5V, VCM = VOUT = 0V, ENABLE = … |
| Formato / tamaño de archivo | PDF / 1.6 Mb |
| Idioma del documento | Inglés |

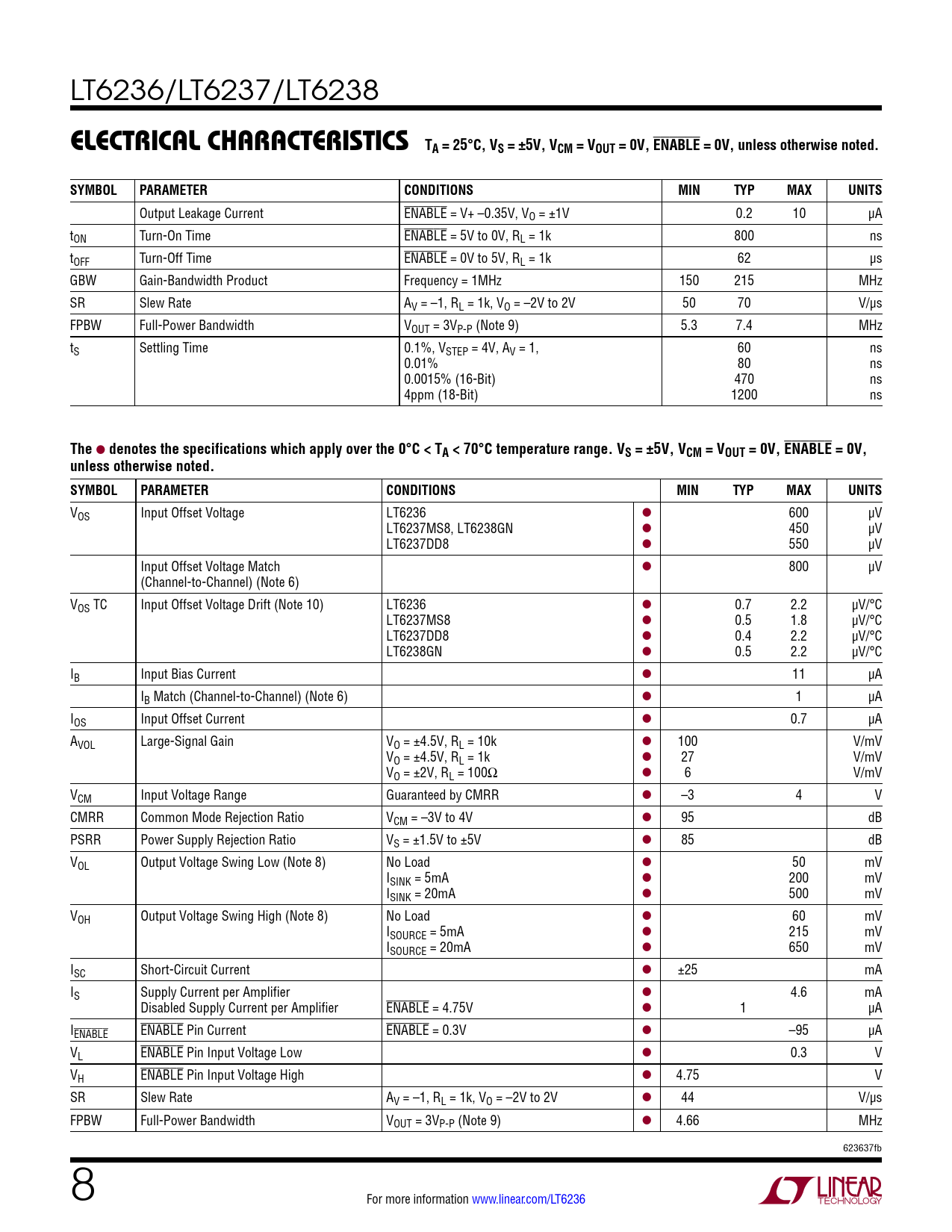

elecTrical characTerisTics TA = 25°C, VS = ±5V, VCM = VOUT = 0V, ENABLE = 0V, unless otherwise noted. SYMBOL. PARAMETER
Línea de modelo para esta hoja de datos
- LT6236CS6#PBF LT6236CS6#TRMPBF LT6236CS6#TRPBF LT6236HS6#PBF LT6236HS6#TRMPBF LT6236HS6#TRPBF LT6236IS6#PBF LT6236IS6#TRMPBF LT6236IS6#TRPBF
Versión de texto del documento
LT6236/LT6237/LT6238
elecTrical characTerisTics TA = 25°C, VS = ±5V, VCM = VOUT = 0V, ENABLE = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Output Leakage Current ENABLE = V+ –0.35V, VO = ±1V 0.2 10 µA tON Turn-On Time ENABLE = 5V to 0V, RL = 1k 800 ns tOFF Turn-Off Time ENABLE = 0V to 5V, RL = 1k 62 µs GBW Gain-Bandwidth Product Frequency = 1MHz 150 215 MHz SR Slew Rate AV = –1, RL = 1k, VO = –2V to 2V 50 70 V/µs FPBW Full-Power Bandwidth VOUT = 3VP-P (Note 9) 5.3 7.4 MHz tS Settling Time 0.1%, VSTEP = 4V, AV = 1, 60 ns 0.01% 80 ns 0.0015% (16-Bit) 470 ns 4ppm (18-Bit) 1200 ns
