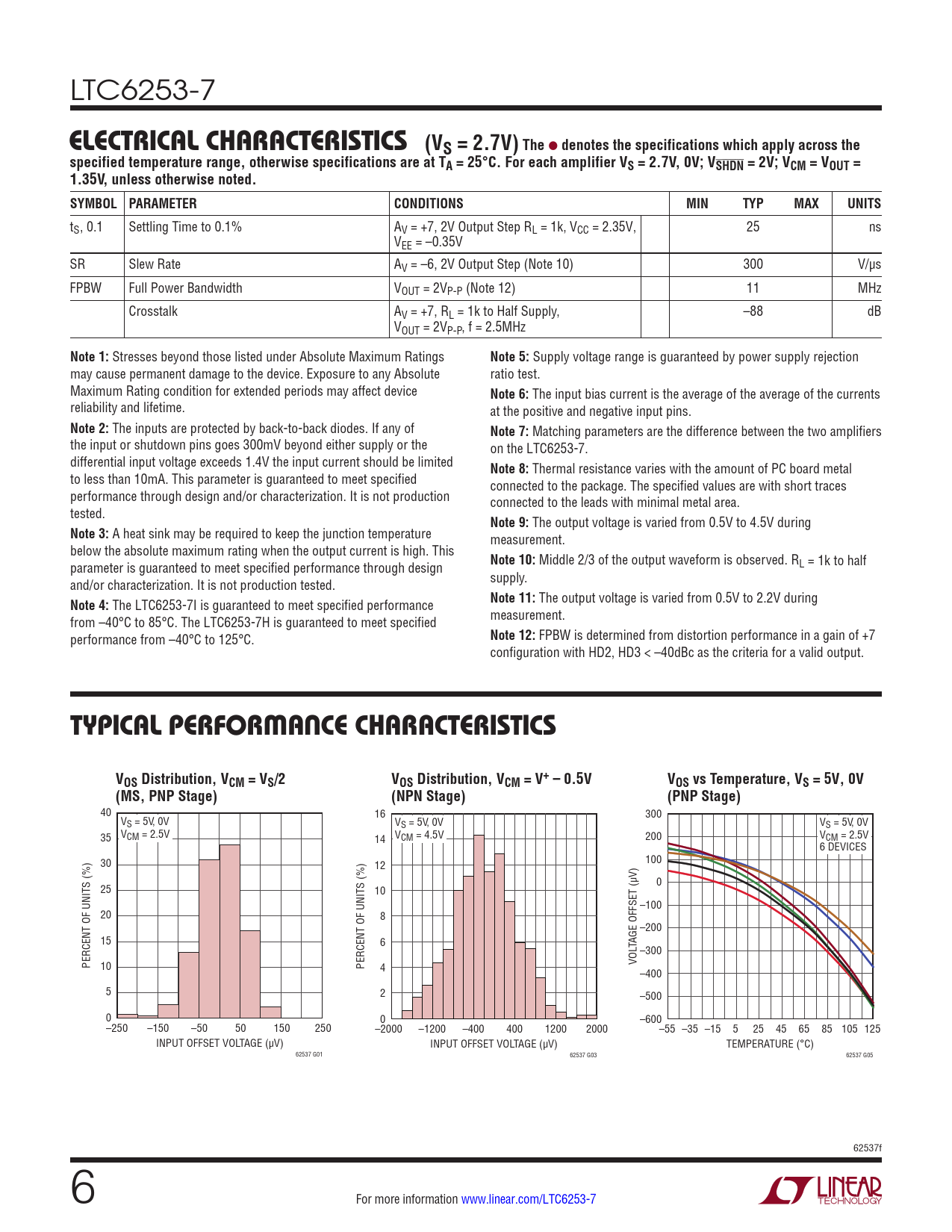

ELECTRICAL CHARACTERISTICS. (VS = 2.7V) The. denotes the specifications which apply across the
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC6253-7
ELECTRICAL CHARACTERISTICS (VS = 2.7V) The
l
denotes the specifications which apply across the specified temperature range, otherwise specifications are at TA = 25°C. For each amplifier VS = 2.7V, 0V; VSHDN = 2V; VCM = VOUT = 1.35V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tS, 0.1 Settling Time to 0.1% AV = +7, 2V Output Step RL = 1k, VCC = 2.35V, 25 ns VEE = –0.35V SR Slew Rate AV = –6, 2V Output Step (Note 10) 300 V/µs FPBW Full Power Bandwidth VOUT = 2VP-P (Note 12) 11 MHz Crosstalk AV = +7, RL = 1k to Half Supply, –88 dB VOUT = 2VP-P, f = 2.5MHz
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
Supply voltage range is guaranteed by power supply rejection may cause permanent damage to the device. Exposure to any Absolute ratio test. Maximum Rating condition for extended periods may affect device
Note 6:
The input bias current is the average of the average of the currents reliability and lifetime. at the positive and negative input pins.
Note 2:
The inputs are protected by back-to-back diodes. If any of
Note 7:
Matching parameters are the difference between the two amplifiers the input or shutdown pins goes 300mV beyond either supply or the on the LTC6253-7. differential input voltage exceeds 1.4V the input current should be limited
Note 8:
Thermal resistance varies with the amount of PC board metal to less than 10mA. This parameter is guaranteed to meet specified connected to the package. The specified values are with short traces performance through design and/or characterization. It is not production connected to the leads with minimal metal area. tested.
Note 9:
The output voltage is varied from 0.5V to 4.5V during
Note 3:
A heat sink may be required to keep the junction temperature measurement. below the absolute maximum rating when the output current is high. This parameter is guaranteed to meet specified performance through design
Note 10:
Middle 2/3 of the output waveform is observed. RL = 1k to half and/or characterization. It is not production tested. supply.
Note 4:
The LTC6253-7I is guaranteed to meet specified performance
Note 11:
The output voltage is varied from 0.5V to 2.2V during from –40°C to 85°C. The LTC6253-7H is guaranteed to meet specified measurement. performance from –40°C to 125°C.
Note 12:
FPBW is determined from distortion performance in a gain of +7 configuration with HD2, HD3 < –40dBc as the criteria for a valid output.
TYPICAL PERFORMANCE CHARACTERISTICS VOS Distribution, VCM = VS/2 VOS Distribution, VCM = V+ – 0.5V VOS vs Temperature, VS = 5V, 0V (MS, PNP Stage) (NPN Stage) (PNP Stage)
40 16 300 VS = 5V, 0V VS = 5V, 0V VS = 5V, 0V 35 VCM = 2.5V VCM = 4.5V 200 VCM = 2.5V 14 6 DEVICES 100 30 12 V) 0 25 10 –100 20 8 –200 15 6 TAGE OFFSET (µ –300 VOL PERCENT OF UNITS (%) 10 PERCENT OF UNITS (%) 4 –400 5 2 –500 0 0 –600 –250 –150 –50 50 150 250 –2000 –1200 –400 400 1200 2000 –55 –35 –15 5 25 45 65 85 105 125 INPUT OFFSET VOLTAGE (µV) INPUT OFFSET VOLTAGE (µV) TEMPERATURE (°C) 62537 G01 62537 G03 62537 G05 62537f 6 For more information www.linear.com/LTC6253-7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Order Information Electrical Characteristics Pin Functions Applications Information Typical Applications Typical Application Related Parts
