Datasheet LTC6253-7 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 2GHz, 3.5mA Gain of 7 Stable Rail-to-Rail I/O Dual Op Amp |
| Páginas / Página | 18 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |

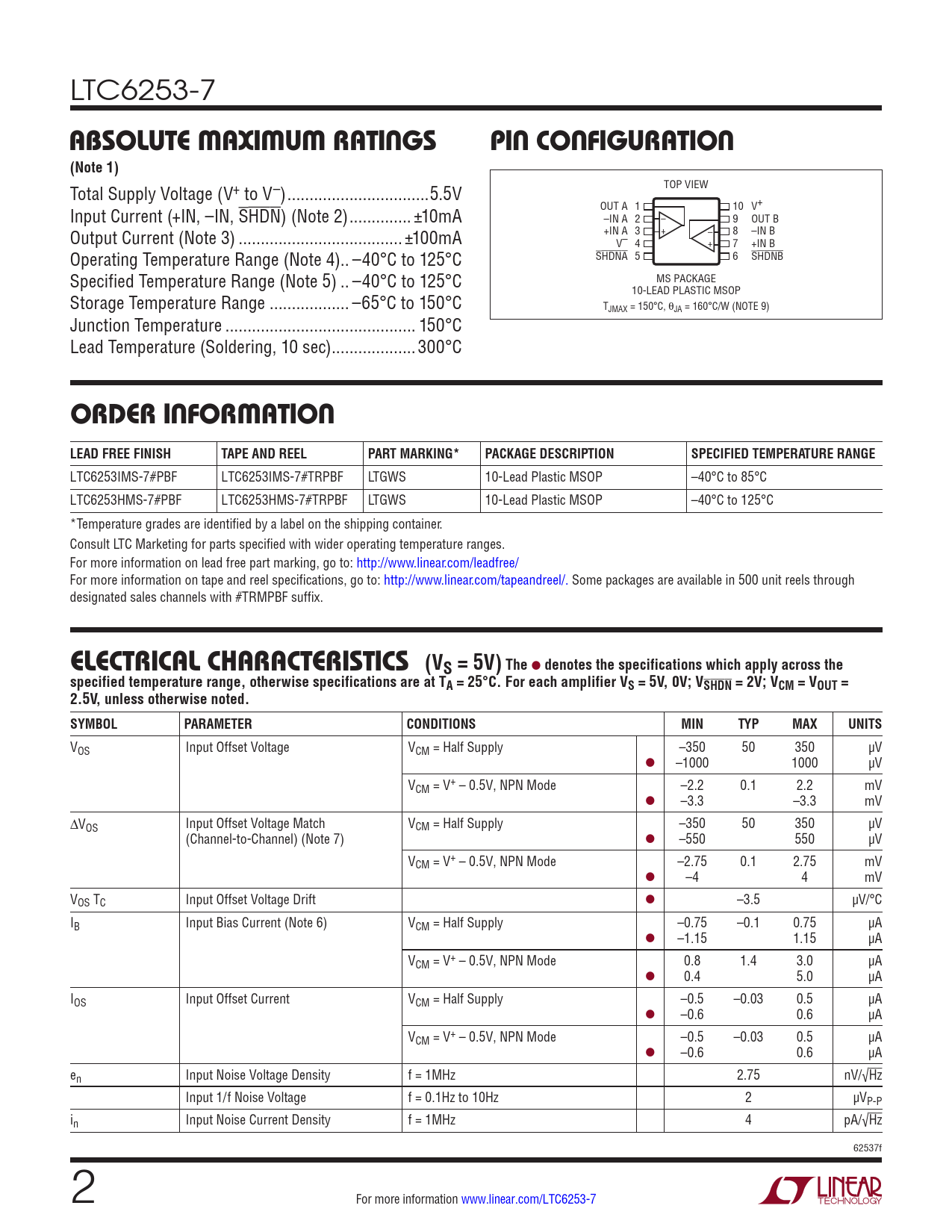

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC6253-7
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V TOP VIEW Input Current (+IN, –IN, SHDN) (Note 2) .. ±10mA OUT A 1 10 V+ –IN A 2 – 9 OUT B + – Output Current (Note 3) ...±100mA +IN A 3 8 –IN B V– 4 + 7 +IN B Operating Temperature Range (Note 4).. –40°C to 125°C SHDNA 5 6 SHDNB Specified Temperature Range (Note 5) .. –40°C to 125°C MS PACKAGE 10-LEAD PLASTIC MSOP Storage Temperature Range .. –65°C to 150°C TJMAX = 150°C, qJA = 160°C/W (NOTE 9) Junction Temperature ... 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6253IMS-7#PBF LTC6253IMS-7#TRPBF LTGWS 10-Lead Plastic MSOP –40°C to 85°C LTC6253HMS-7#PBF LTC6253HMS-7#TRPBF LTGWS 10-Lead Plastic MSOP –40°C to 125°C *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS (VS = 5V) The
l
denotes the specifications which apply across the specified temperature range, otherwise specifications are at TA = 25°C. For each amplifier VS = 5V, 0V; VSHDN = 2V; VCM = VOUT = 2.5V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = Half Supply –350 50 350 µV l –1000 1000 µV VCM = V+ – 0.5V, NPN Mode –2.2 0.1 2.2 mV l –3.3 –3.3 mV DVOS Input Offset Voltage Match VCM = Half Supply –350 50 350 µV (Channel-to-Channel) (Note 7) l –550 550 µV VCM = V+ – 0.5V, NPN Mode –2.75 0.1 2.75 mV l –4 4 mV VOS TC Input Offset Voltage Drift l –3.5 µV/°C IB Input Bias Current (Note 6) VCM = Half Supply –0.75 –0.1 0.75 µA l –1.15 1.15 µA VCM = V+ – 0.5V, NPN Mode 0.8 1.4 3.0 µA l 0.4 5.0 µA IOS Input Offset Current VCM = Half Supply –0.5 –0.03 0.5 µA l –0.6 0.6 µA VCM = V+ – 0.5V, NPN Mode –0.5 –0.03 0.5 µA l –0.6 0.6 µA en Input Noise Voltage Density f = 1MHz 2.75 nV/√Hz Input 1/f Noise Voltage f = 0.1Hz to 10Hz 2 µVP-P in Input Noise Current Density f = 1MHz 4 pA/√Hz 62537f 2 For more information www.linear.com/LTC6253-7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Order Information Electrical Characteristics Pin Functions Applications Information Typical Applications Typical Application Related Parts
