LT1969

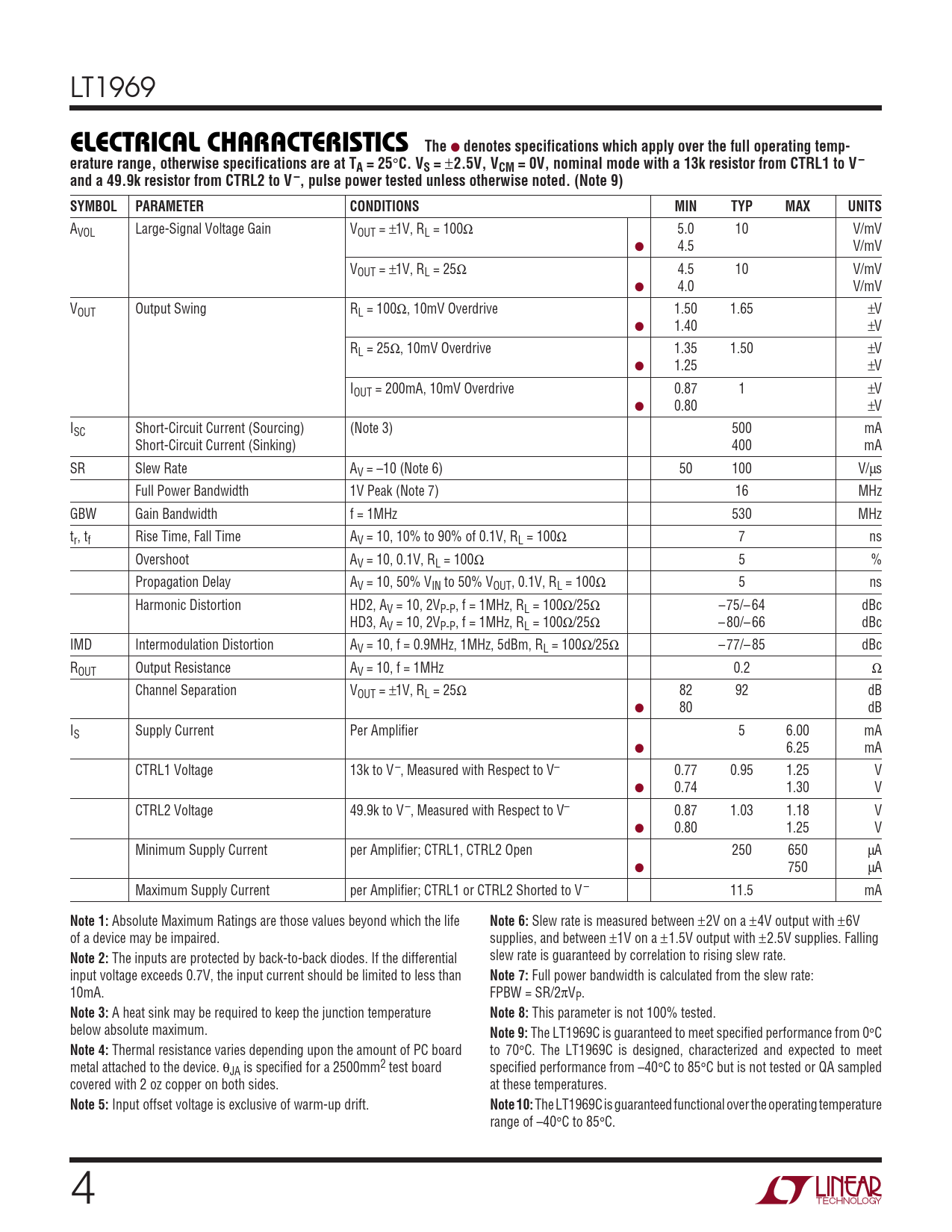

ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating temp- erature range, otherwise specifications are at TA = 25
°
C. VS =
±
2.5V, VCM = 0V, nominal mode with a 13k resistor from CTRL1 to V– and a 49.9k resistor from CTRL2 to V –, pulse power tested unless otherwise noted. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
AVOL Large-Signal Voltage Gain VOUT = ±1V, RL = 100Ω 5.0 10 V/mV ● 4.5 V/mV VOUT = ±1V, RL = 25Ω 4.5 10 V/mV ● 4.0 V/mV VOUT Output Swing RL = 100Ω, 10mV Overdrive 1.50 1.65 ±V ● 1.40 ±V RL = 25Ω, 10mV Overdrive 1.35 1.50 ±V ● 1.25 ±V IOUT = 200mA, 10mV Overdrive 0.87 1 ±V ● 0.80 ±V ISC Short-Circuit Current (Sourcing) (Note 3) 500 mA Short-Circuit Current (Sinking) 400 mA SR Slew Rate AV = –10 (Note 6) 50 100 V/µs Full Power Bandwidth 1V Peak (Note 7) 16 MHz GBW Gain Bandwidth f = 1MHz 530 MHz tr, tf Rise Time, Fall Time AV = 10, 10% to 90% of 0.1V, RL = 100Ω 7 ns Overshoot AV = 10, 0.1V, RL = 100Ω 5 % Propagation Delay AV = 10, 50% VIN to 50% VOUT, 0.1V, RL = 100Ω 5 ns Harmonic Distortion HD2, AV = 10, 2VP-P, f = 1MHz, RL = 100Ω/25Ω –75/– 64 dBc HD3, AV = 10, 2VP-P, f = 1MHz, RL = 100Ω/25Ω – 80/– 66 dBc IMD Intermodulation Distortion AV = 10, f = 0.9MHz, 1MHz, 5dBm, RL = 100Ω/25Ω – 77/– 85 dBc ROUT Output Resistance AV = 10, f = 1MHz 0.2 Ω Channel Separation VOUT = ±1V, RL = 25Ω 82 92 dB ● 80 dB IS Supply Current Per Amplifier 5 6.00 mA ● 6.25 mA CTRL1 Voltage 13k to V –, Measured with Respect to V– 0.77 0.95 1.25 V ● 0.74 1.30 V CTRL2 Voltage 49.9k to V –, Measured with Respect to V– 0.87 1.03 1.18 V ● 0.80 1.25 V Minimum Supply Current per Amplifier; CTRL1, CTRL2 Open 250 650 µA ● 750 µA Maximum Supply Current per Amplifier; CTRL1 or CTRL2 Shorted to V – 11.5 mA
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 6:
Slew rate is measured between ±2V on a ±4V output with ±6V of a device may be impaired. supplies, and between ±1V on a ±1.5V output with ±2.5V supplies. Falling
Note 2:
The inputs are protected by back-to-back diodes. If the differential slew rate is guaranteed by correlation to rising slew rate. input voltage exceeds 0.7V, the input current should be limited to less than
Note 7:
Full power bandwidth is calculated from the slew rate: 10mA. FPBW = SR/2πVP.
Note 3:
A heat sink may be required to keep the junction temperature
Note 8:
This parameter is not 100% tested. below absolute maximum.
Note 9:
The LT1969C is guaranteed to meet specified performance from 0°C
Note 4:
Thermal resistance varies depending upon the amount of PC board to 70°C. The LT1969C is designed, characterized and expected to meet metal attached to the device. θJA is specified for a 2500mm2 test board specified performance from –40°C to 85°C but is not tested or QA sampled covered with 2 oz copper on both sides. at these temperatures.
Note 5:
Input offset voltage is exclusive of warm-up drift.
Note 10:
The LT1969C is guaranteed functional over the operating temperature range of –40°C to 85°C. 4
