Datasheet LT1630, LT1631 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 30MHz, 10V/µs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps |
| Páginas / Página | 20 / 8 — The. denotes the specifications which apply over the full operating |
| Formato / tamaño de archivo | PDF / 367 Kb |
| Idioma del documento | Inglés |
The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento

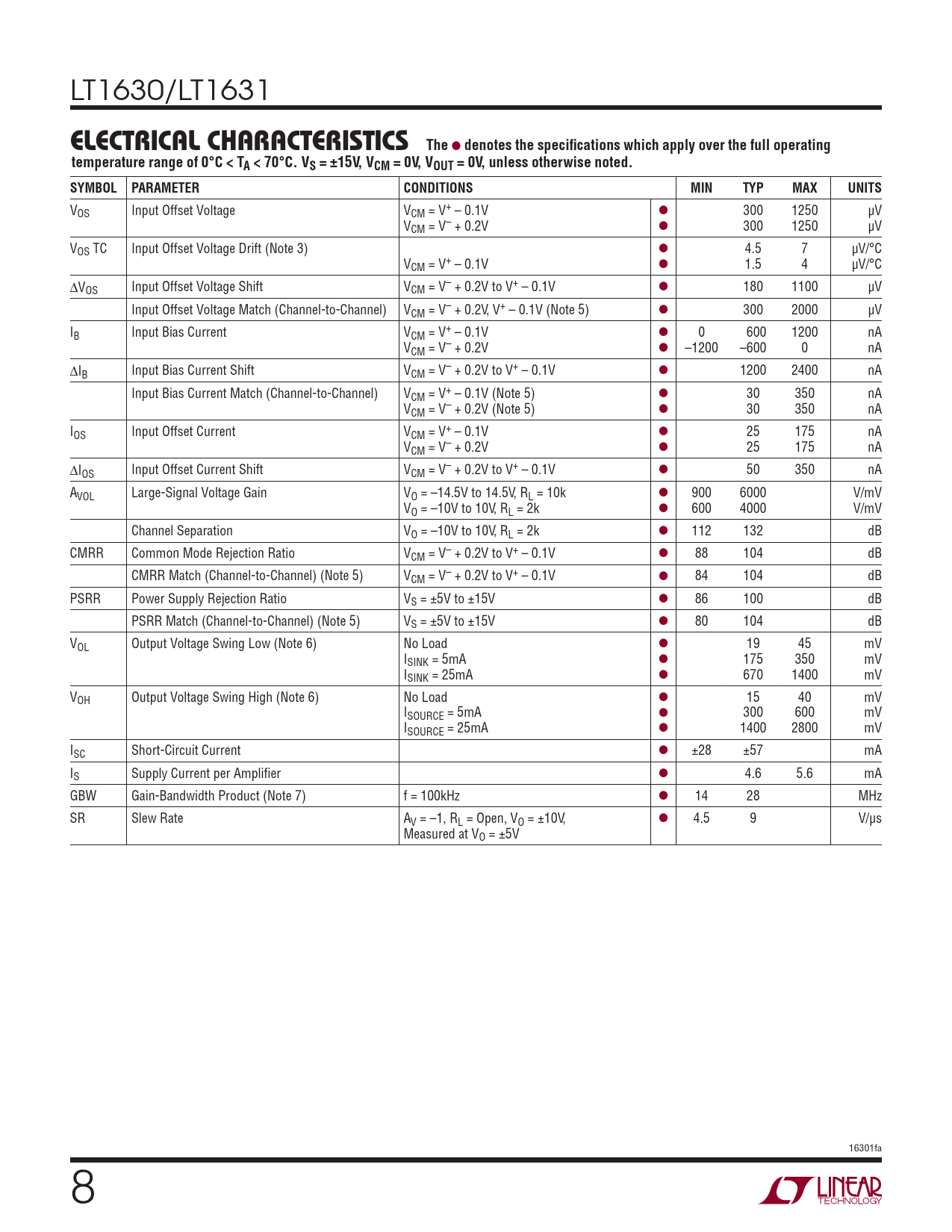

LT1630/LT1631 e lecTrical characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range of 0°C < TA < 70°C. VS = ±15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V l 300 1250 µV VCM = V– + 0.2V l 300 1250 µV VOS TC Input Offset Voltage Drift (Note 3) l 4.5 7 µV/°C VCM = V+ – 0.1V l 1.5 4 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V l 180 1100 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ – 0.1V (Note 5) l 300 2000 µV IB Input Bias Current VCM = V+ – 0.1V l 0 600 1200 nA VCM = V– + 0.2V l –1200 –600 0 nA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V l 1200 2400 nA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) l 30 350 nA VCM = V– + 0.2V (Note 5) l 30 350 nA IOS Input Offset Current VCM = V+ – 0.1V l 25 175 nA VCM = V– + 0.2V l 25 175 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V l 50 350 nA AVOL Large-Signal Voltage Gain VO = –14.5V to 14.5V, RL = 10k l 900 6000 V/mV VO = –10V to 10V, RL = 2k l 600 4000 V/mV Channel Separation VO = –10V to 10V, RL = 2k l 112 132 dB CMRR Common Mode Rejection Ratio VCM = V– + 0.2V to V+ – 0.1V l 88 104 dB CMRR Match (Channel-to-Channel) (Note 5) VCM = V– + 0.2V to V+ – 0.1V l 84 104 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V l 86 100 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±5V to ±15V l 80 104 dB VOL Output Voltage Swing Low (Note 6) No Load l 19 45 mV ISINK = 5mA l 175 350 mV ISINK = 25mA l 670 1400 mV VOH Output Voltage Swing High (Note 6) No Load l 15 40 mV ISOURCE = 5mA l 300 600 mV ISOURCE = 25mA l 1400 2800 mV ISC Short-Circuit Current l ±28 ±57 mA IS Supply Current per Amplifier l 4.6 5.6 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz l 14 28 MHz SR Slew Rate AV = –1, RL = Open, VO = ±10V, l 4.5 9 V/µs Measured at VO = ±5V 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
The
l
denotes the specifications which apply over the full operating temperature range of 0°C < TA < 70°C. VS = ±15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V l 300 1250 µV VCM = V– + 0.2V l 300 1250 µV VOS TC Input Offset Voltage Drift (Note 3) l 4.5 7 µV/°C VCM = V+ – 0.1V l 1.5 4 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V l 180 1100 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ – 0.1V (Note 5) l 300 2000 µV IB Input Bias Current VCM = V+ – 0.1V l 0 600 1200 nA VCM = V– + 0.2V l –1200 –600 0 nA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V l 1200 2400 nA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) l 30 350 nA VCM = V– + 0.2V (Note 5) l 30 350 nA IOS Input Offset Current VCM = V+ – 0.1V l 25 175 nA VCM = V– + 0.2V l 25 175 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V l 50 350 nA AVOL Large-Signal Voltage Gain VO = –14.5V to 14.5V, RL = 10k l 900 6000 V/mV VO = –10V to 10V, RL = 2k l 600 4000 V/mV Channel Separation VO = –10V to 10V, RL = 2k l 112 132 dB CMRR Common Mode Rejection Ratio VCM = V– + 0.2V to V+ – 0.1V l 88 104 dB CMRR Match (Channel-to-Channel) (Note 5) VCM = V– + 0.2V to V+ – 0.1V l 84 104 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V l 86 100 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±5V to ±15V l 80 104 dB VOL Output Voltage Swing Low (Note 6) No Load l 19 45 mV ISINK = 5mA l 175 350 mV ISINK = 25mA l 670 1400 mV VOH Output Voltage Swing High (Note 6) No Load l 15 40 mV ISOURCE = 5mA l 300 600 mV ISOURCE = 25mA l 1400 2800 mV ISC Short-Circuit Current l ±28 ±57 mA IS Supply Current per Amplifier l 4.6 5.6 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz l 14 28 MHz SR Slew Rate AV = –1, RL = Open, VO = ±10V, l 4.5 9 V/µs Measured at VO = ±5V 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
