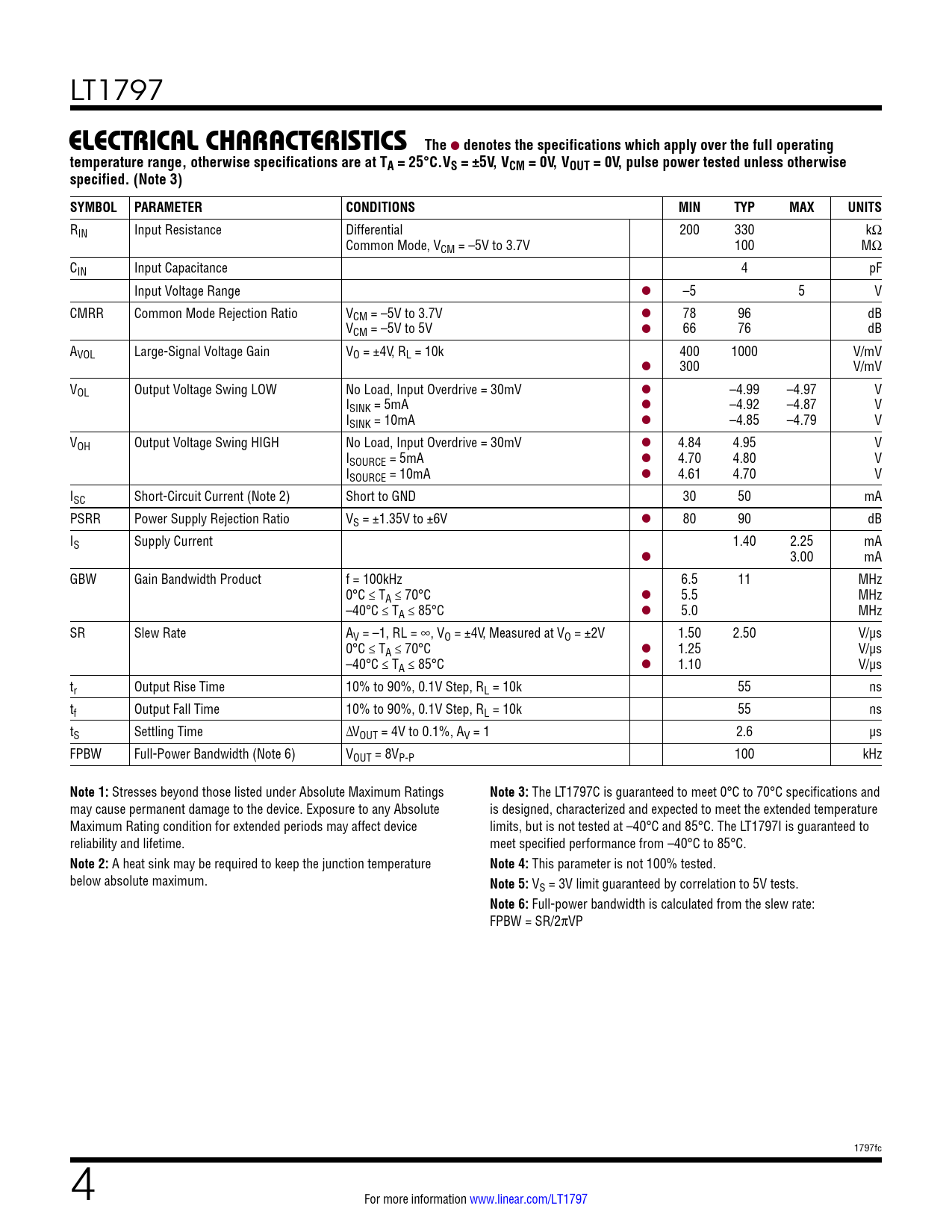

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1797
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C.VS = ±5V, VCM = 0V, VOUT = 0V, pulse power tested unless otherwise specified. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
RIN Input Resistance Differential 200 330 kΩ Common Mode, VCM = –5V to 3.7V 100 MΩ CIN Input Capacitance 4 pF Input Voltage Range l –5 5 V CMRR Common Mode Rejection Ratio VCM = –5V to 3.7V l 78 96 dB VCM = –5V to 5V l 66 76 dB AVOL Large-Signal Voltage Gain VO = ±4V, RL = 10k 400 1000 V/mV l 300 V/mV VOL Output Voltage Swing LOW No Load, Input Overdrive = 30mV l –4.99 –4.97 V ISINK = 5mA l –4.92 –4.87 V ISINK = 10mA l –4.85 –4.79 V VOH Output Voltage Swing HIGH No Load, Input Overdrive = 30mV l 4.84 4.95 V ISOURCE = 5mA l 4.70 4.80 V ISOURCE = 10mA l 4.61 4.70 V ISC Short-Circuit Current (Note 2) Short to GND 30 50 mA PSRR Power Supply Rejection Ratio VS = ±1.35V to ±6V l 80 90 dB IS Supply Current 1.40 2.25 mA l 3.00 mA GBW Gain Bandwidth Product f = 100kHz 6.5 11 MHz 0°C ≤ TA ≤ 70°C l 5.5 MHz –40°C ≤ TA ≤ 85°C l 5.0 MHz SR Slew Rate AV = –1, RL = ∞, VO = ±4V, Measured at VO = ±2V 1.50 2.50 V/µs 0°C ≤ TA ≤ 70°C l 1.25 V/µs –40°C ≤ TA ≤ 85°C l 1.10 V/µs tr Output Rise Time 10% to 90%, 0.1V Step, RL = 10k 55 ns tf Output Fall Time 10% to 90%, 0.1V Step, RL = 10k 55 ns tS Settling Time ΔVOUT = 4V to 0.1%, AV = 1 2.6 µs FPBW Full-Power Bandwidth (Note 6) VOUT = 8VP-P 100 kHz
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
The LT1797C is guaranteed to meet 0°C to 70°C specifications and may cause permanent damage to the device. Exposure to any Absolute is designed, characterized and expected to meet the extended temperature Maximum Rating condition for extended periods may affect device limits, but is not tested at –40°C and 85°C. The LT1797I is guaranteed to reliability and lifetime. meet specified performance from –40°C to 85°C.
Note 2:
A heat sink may be required to keep the junction temperature
Note 4:
This parameter is not 100% tested. below absolute maximum.
Note 5:
VS = 3V limit guaranteed by correlation to 5V tests.
Note 6:
Full-power bandwidth is calculated from the slew rate: FPBW = SR/2πVP 1797fc 4 For more information www.linear.com/LT1797
