DescripciónAerospace High Stability Isolated Error Amplifier
Páginas / Página14 / 5 — TABLE. IA. NOTES:. 1/. TA. nom. =. 25ºC,. TA. max. =. 125ºC,. TA. min. =. …
RevisiónC
Formato / tamaño de archivoPDF / 1.1 Mb
Idioma del documentoInglés

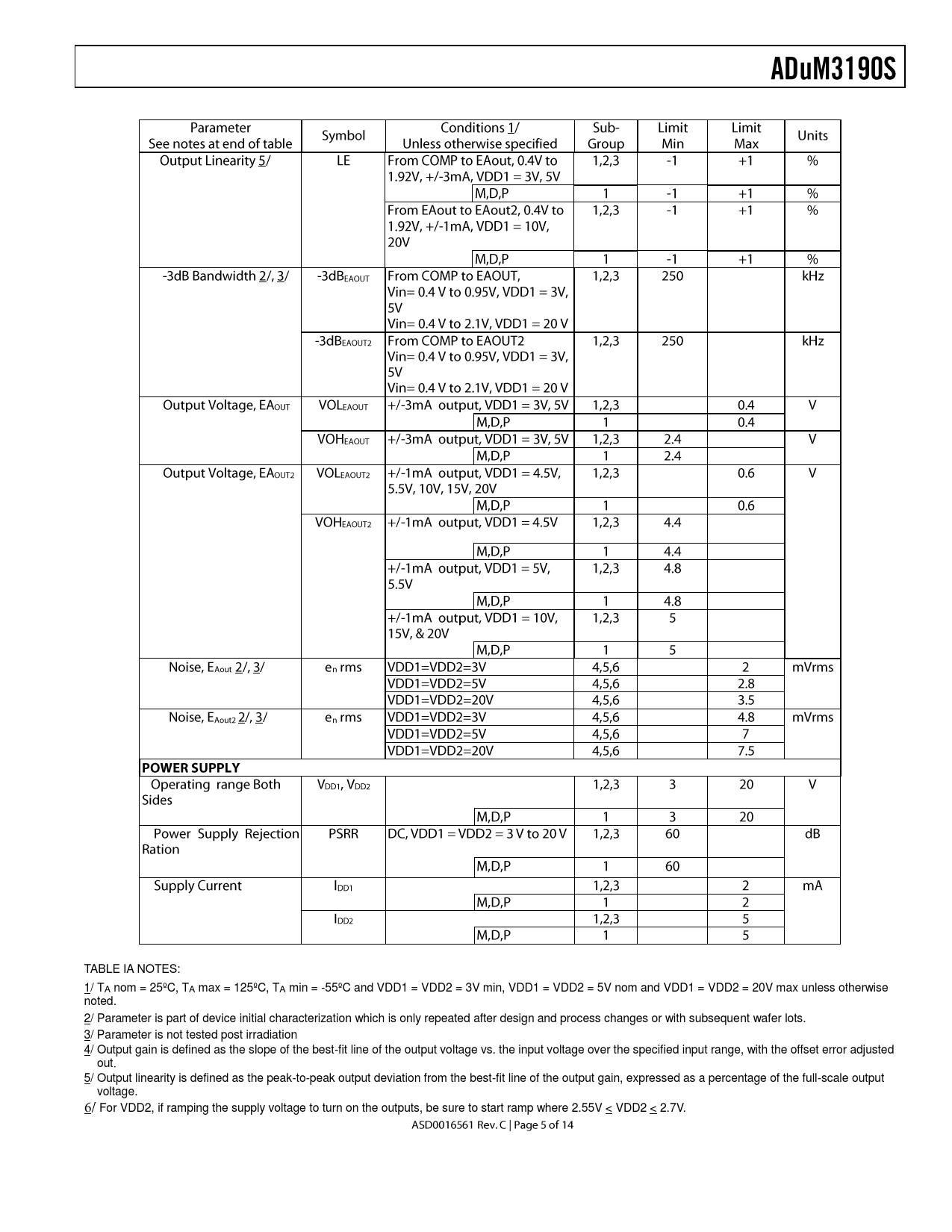

TABLE. IA. NOTES:. 1/. TA. nom. =. 25ºC,. TA. max. =. 125ºC,. TA. min. =. -55ºC. and. VDD1. =. VDD2. =. 3V. min,. VDD1. =. VDD2. =. 5V. nom. and. VDD1. =. VDD2. =. 20V. max. unless. otherwise

TABLE IA NOTES: 1/ TA nom = 25ºC, TA max = 125ºC, TA min = -55ºC and VDD1 = VDD2 = 3V min, VDD1 = VDD2 = 5V nom and VDD1 = VDD2 = 20V max unless otherwise

Línea de modelo para esta hoja de datos

Versión de texto del documento

TABLE IA NOTES: 1/ TA nom = 25ºC, TA max = 125ºC, TA min = -55ºC and VDD1 = VDD2 = 3V min, VDD1 = VDD2 = 5V nom and VDD1 = VDD2 = 20V max unless otherwise noted. 2/ Parameter is part of device initial characterization which is only repeated after design and process changes or with subsequent wafer lots. 3/ Parameter is not tested post irradiation 4/ Output gain is defined as the slope of the best-fit line of the output voltage vs. the input voltage over the specified input range, with the offset error adjusted out 5/ Output linearity is defined as the peak-to-peak output deviation from the best-fit line of the output gain, expressed as a percentage of the full-scale output voltage. For VDD2, if ramping the supply voltage to turn on the outputs, be sure to start ramp where 2.55V < VDD2 < 2.7V.
