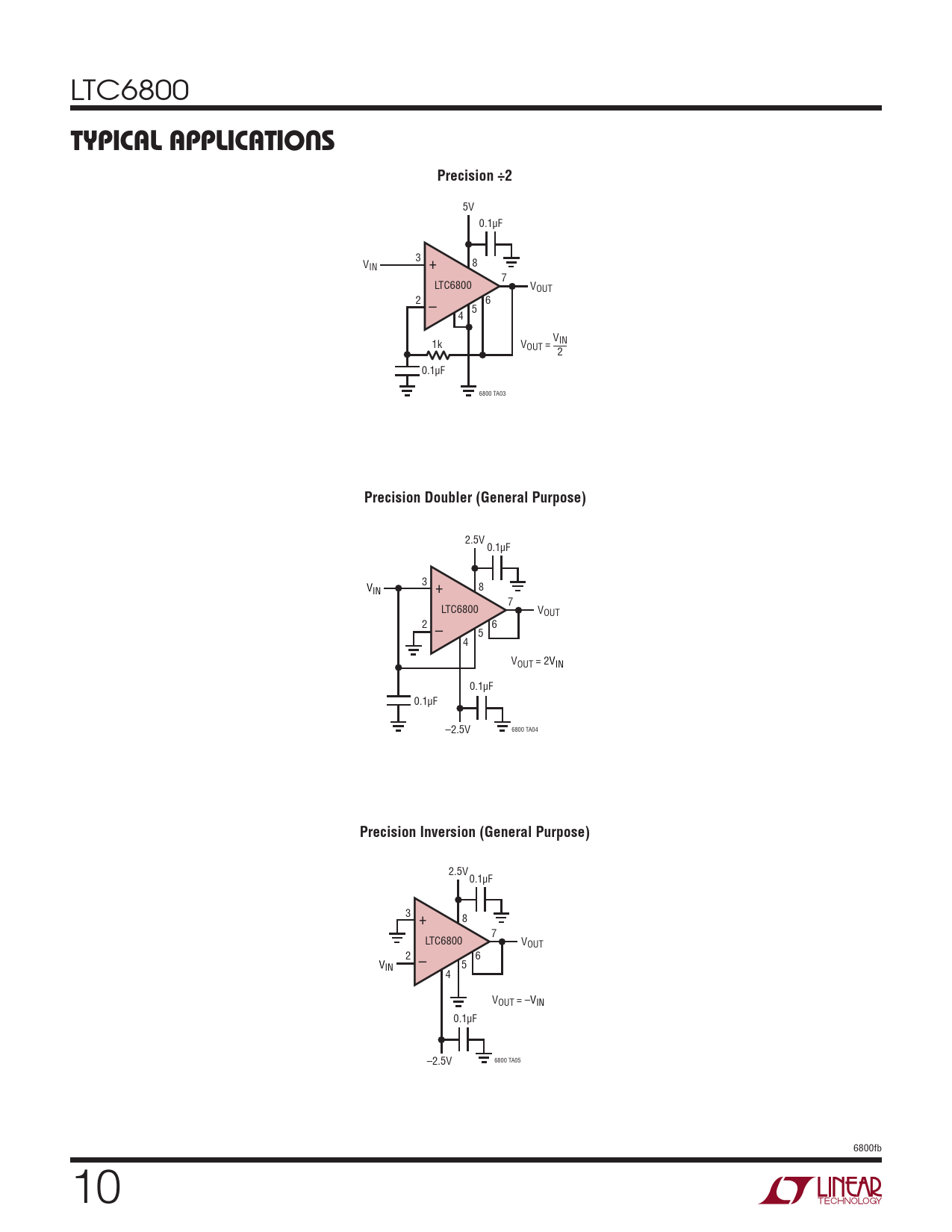

LTC6800 Typical applicaTions
Precision ÷2
5V 0.1µF 3 VIN + 8 7 LTC6800 VOUT 2 – 6 4 5 1k V V IN OUT = 2 0.1µF 6800 TA03
Precision Doubler (General Purpose)
2.5V 0.1µF 3 VIN + 8 7 LTC6800 VOUT 2 – 6 5 4 VOUT = 2VIN 0.1µF 0.1µF 6800 TA04 –2.5V
Precision Inversion (General Purpose)
2.5V0.1µF 3 + 8 7 LTC6800 VOUT 2 6 VIN – 5 4 VOUT = –VIN 0.1µF 6800 TA05 –2.5V 6800fb 0 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts Typical Application
