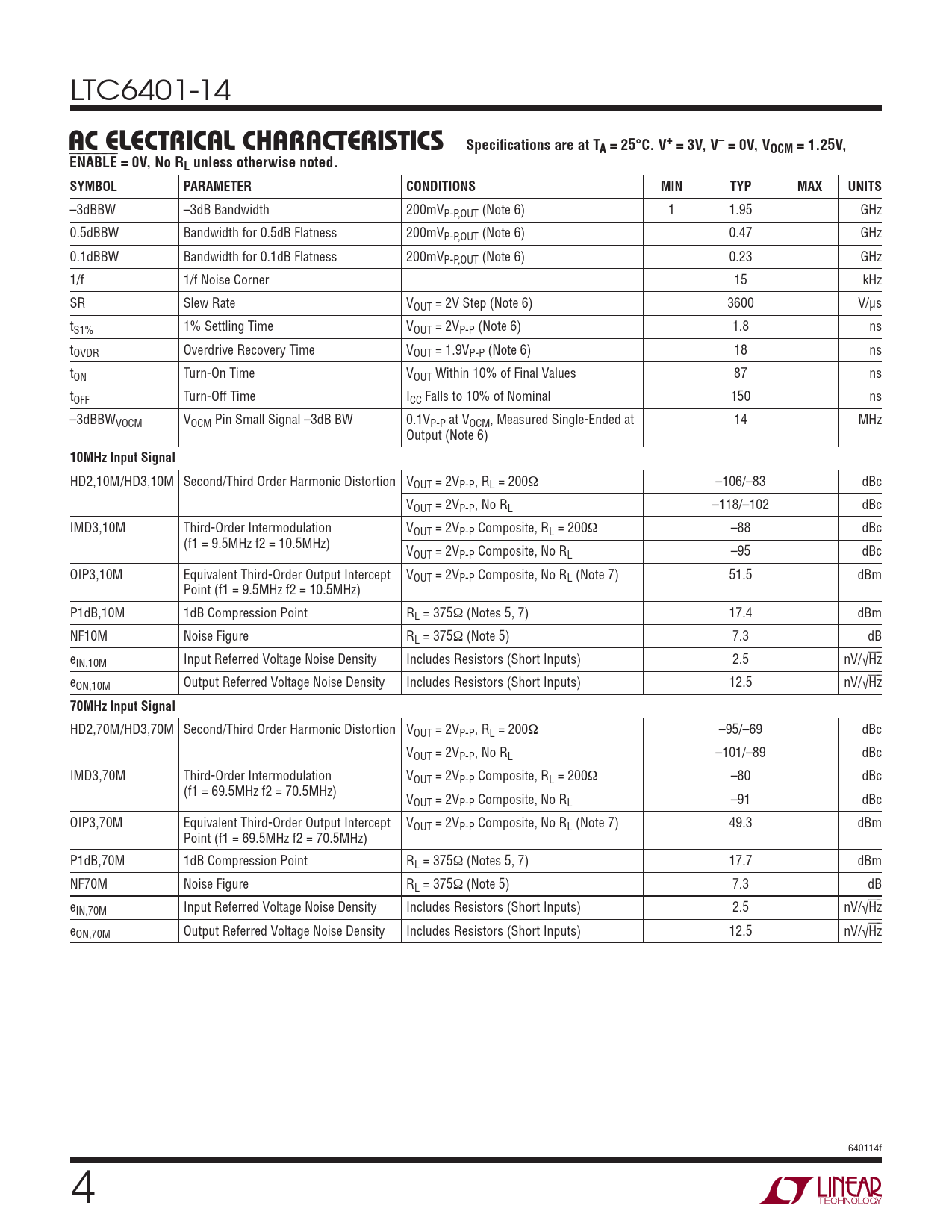

AC ELECTRICAL CHARACTERISTICS. Specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VOCM = 1.25V,
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC6401-14
AC ELECTRICAL CHARACTERISTICS Specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VOCM = 1.25V,
⎯
E
⎯
N
⎯
A
⎯
B
⎯
L
⎯
E = 0V, No RL unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
–3dBBW –3dB Bandwidth 200mVP-P,OUT (Note 6) 1 1.95 GHz 0.5dBBW Bandwidth for 0.5dB Flatness 200mVP-P,OUT (Note 6) 0.47 GHz 0.1dBBW Bandwidth for 0.1dB Flatness 200mVP-P,OUT (Note 6) 0.23 GHz 1/f 1/f Noise Corner 15 kHz SR Slew Rate VOUT = 2V Step (Note 6) 3600 V/μs tS1% 1% Settling Time VOUT = 2VP-P (Note 6) 1.8 ns tOVDR Overdrive Recovery Time VOUT = 1.9VP-P (Note 6) 18 ns tON Turn-On Time VOUT Within 10% of Final Values 87 ns tOFF Turn-Off Time ICC Falls to 10% of Nominal 150 ns –3dBBWVOCM VOCM Pin Small Signal –3dB BW 0.1VP-P at VOCM, Measured Single-Ended at 14 MHz Output (Note 6)
10MHz Input Signal
HD2,10M/HD3,10M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –106/–83 dBc VOUT = 2VP-P, No RL –118/–102 dBc IMD3,10M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –88 dBc (f1 = 9.5MHz f2 = 10.5MHz) VOUT = 2VP-P Composite, No RL –95 dBc OIP3,10M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 51.5 dBm Point (f1 = 9.5MHz f2 = 10.5MHz) P1dB,10M 1dB Compression Point RL = 375Ω (Notes 5, 7) 17.4 dBm NF10M Noise Figure RL = 375Ω (Note 5) 7.3 dB eIN,10M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 2.5 nV/√⎯H⎯z eON,10M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 12.5 nV/√⎯H⎯z
70MHz Input Signal
HD2,70M/HD3,70M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –95/–69 dBc VOUT = 2VP-P, No RL –101/–89 dBc IMD3,70M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –80 dBc (f1 = 69.5MHz f2 = 70.5MHz) VOUT = 2VP-P Composite, No RL –91 dBc OIP3,70M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 49.3 dBm Point (f1 = 69.5MHz f2 = 70.5MHz) P1dB,70M 1dB Compression Point RL = 375Ω (Notes 5, 7) 17.7 dBm NF70M Noise Figure RL = 375Ω (Note 5) 7.3 dB eIN,70M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 2.5 nV/√⎯H⎯z eON,70M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 12.5 nV/√⎯H⎯z 640114f 4
AC ELECTRICAL CHARACTERISTICS Specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VOCM = 1.25V,
⎯
E
⎯
N
⎯
A
⎯
B
⎯
L
⎯
E = 0V, No RL unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
–3dBBW –3dB Bandwidth 200mVP-P,OUT (Note 6) 1 1.95 GHz 0.5dBBW Bandwidth for 0.5dB Flatness 200mVP-P,OUT (Note 6) 0.47 GHz 0.1dBBW Bandwidth for 0.1dB Flatness 200mVP-P,OUT (Note 6) 0.23 GHz 1/f 1/f Noise Corner 15 kHz SR Slew Rate VOUT = 2V Step (Note 6) 3600 V/μs tS1% 1% Settling Time VOUT = 2VP-P (Note 6) 1.8 ns tOVDR Overdrive Recovery Time VOUT = 1.9VP-P (Note 6) 18 ns tON Turn-On Time VOUT Within 10% of Final Values 87 ns tOFF Turn-Off Time ICC Falls to 10% of Nominal 150 ns –3dBBWVOCM VOCM Pin Small Signal –3dB BW 0.1VP-P at VOCM, Measured Single-Ended at 14 MHz Output (Note 6)
10MHz Input Signal
HD2,10M/HD3,10M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –106/–83 dBc VOUT = 2VP-P, No RL –118/–102 dBc IMD3,10M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –88 dBc (f1 = 9.5MHz f2 = 10.5MHz) VOUT = 2VP-P Composite, No RL –95 dBc OIP3,10M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 51.5 dBm Point (f1 = 9.5MHz f2 = 10.5MHz) P1dB,10M 1dB Compression Point RL = 375Ω (Notes 5, 7) 17.4 dBm NF10M Noise Figure RL = 375Ω (Note 5) 7.3 dB eIN,10M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 2.5 nV/√⎯H⎯z eON,10M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 12.5 nV/√⎯H⎯z
70MHz Input Signal
HD2,70M/HD3,70M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –95/–69 dBc VOUT = 2VP-P, No RL –101/–89 dBc IMD3,70M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –80 dBc (f1 = 69.5MHz f2 = 70.5MHz) VOUT = 2VP-P Composite, No RL –91 dBc OIP3,70M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 49.3 dBm Point (f1 = 69.5MHz f2 = 70.5MHz) P1dB,70M 1dB Compression Point RL = 375Ω (Notes 5, 7) 17.7 dBm NF70M Noise Figure RL = 375Ω (Note 5) 7.3 dB eIN,70M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 2.5 nV/√⎯H⎯z eON,70M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 12.5 nV/√⎯H⎯z 640114f 4
