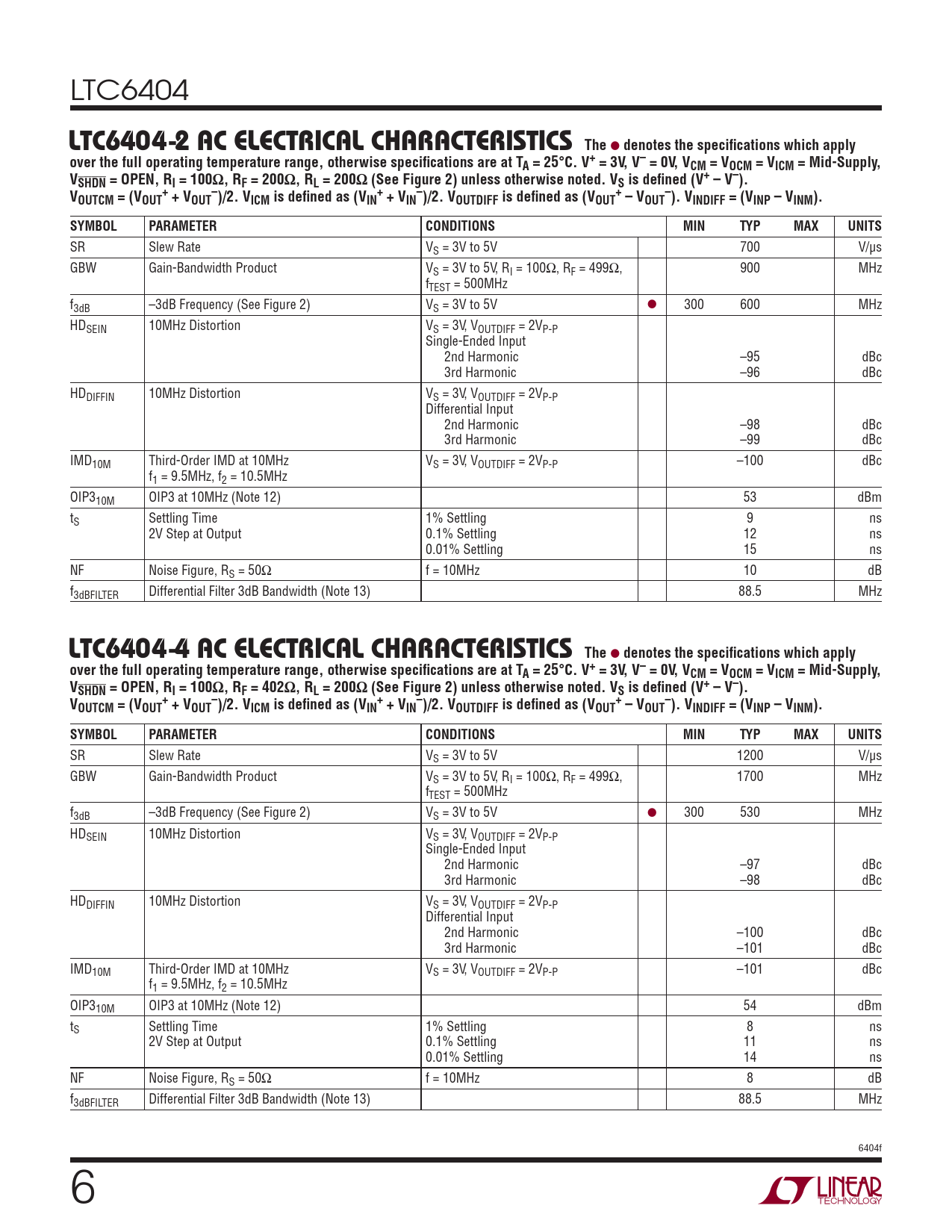

LTC6404-2 AC ELECTRICAL CHARACTERISTICS The. denotes the specifi cations which apply
Línea de modelo para esta hoja de datos
- LTC6404CUD-1#PBF LTC6404CUD-1#TRPBF LTC6404CUD-2#PBF LTC6404CUD-2#TRPBF LTC6404CUD-4#PBF LTC6404CUD-4#TRPBF LTC6404HUD-1#PBF LTC6404HUD-1#TRPBF LTC6404HUD-2#PBF LTC6404HUD-2#TRPBF LTC6404HUD-4#PBF LTC6404HUD-4#TRPBF LTC6404IUD-1#PBF LTC6404IUD-1#TRPBF LTC6404IUD-2#PBF LTC6404IUD-2#TRPBF LTC6404IUD-4#PBF LTC6404IUD-4#TRPBF
Versión de texto del documento
LTC6404
LTC6404-2 AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 100Ω, RF = 200Ω, RL = 200Ω (See Figure 2) unless otherwise noted. VS is defi ned (V+ – V–). V + – + – + – OUTCM = (VOUT + VOUT )/2. VICM is defi ned as (VIN + VIN )/2. VOUTDIFF is defi ned as (VOUT – VOUT ). VINDIFF = (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate VS = 3V to 5V 700 V/μs GBW Gain-Bandwidth Product VS = 3V to 5V, RI = 100Ω, RF = 499Ω, 900 MHz fTEST = 500MHz f3dB –3dB Frequency (See Figure 2) VS = 3V to 5V l 300 600 MHz HDSEIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Single-Ended Input 2nd Harmonic –95 dBc 3rd Harmonic –96 dBc HDDIFFIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Differential Input 2nd Harmonic –98 dBc 3rd Harmonic –99 dBc IMD10M Third-Order IMD at 10MHz VS = 3V, VOUTDIFF = 2VP-P –100 dBc f1 = 9.5MHz, f2 = 10.5MHz OIP310M OIP3 at 10MHz (Note 12) 53 dBm tS Settling Time 1% Settling 9 ns 2V Step at Output 0.1% Settling 12 ns 0.01% Settling 15 ns NF Noise Figure, RS = 50Ω f = 10MHz 10 dB f3dBFILTER Differential Filter 3dB Bandwidth (Note 13) 88.5 MHz
LTC6404-4 AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 100Ω, RF = 402Ω, RL = 200Ω (See Figure 2) unless otherwise noted. VS is defi ned (V+ – V–). V + – + – + – OUTCM = (VOUT + VOUT )/2. VICM is defi ned as (VIN + VIN )/2. VOUTDIFF is defi ned as (VOUT – VOUT ). VINDIFF = (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate VS = 3V to 5V 1200 V/μs GBW Gain-Bandwidth Product VS = 3V to 5V, RI = 100Ω, RF = 499Ω, 1700 MHz fTEST = 500MHz f3dB –3dB Frequency (See Figure 2) VS = 3V to 5V l 300 530 MHz HDSEIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Single-Ended Input 2nd Harmonic –97 dBc 3rd Harmonic –98 dBc HDDIFFIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Differential Input 2nd Harmonic –100 dBc 3rd Harmonic –101 dBc IMD10M Third-Order IMD at 10MHz VS = 3V, VOUTDIFF = 2VP-P –101 dBc f1 = 9.5MHz, f2 = 10.5MHz OIP310M OIP3 at 10MHz (Note 12) 54 dBm tS Settling Time 1% Settling 8 ns 2V Step at Output 0.1% Settling 11 ns 0.01% Settling 14 ns NF Noise Figure, RS = 50Ω f = 10MHz 8 dB f3dBFILTER Differential Filter 3dB Bandwidth (Note 13) 88.5 MHz 6404f 6
LTC6404-2 AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 100Ω, RF = 200Ω, RL = 200Ω (See Figure 2) unless otherwise noted. VS is defi ned (V+ – V–). V + – + – + – OUTCM = (VOUT + VOUT )/2. VICM is defi ned as (VIN + VIN )/2. VOUTDIFF is defi ned as (VOUT – VOUT ). VINDIFF = (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate VS = 3V to 5V 700 V/μs GBW Gain-Bandwidth Product VS = 3V to 5V, RI = 100Ω, RF = 499Ω, 900 MHz fTEST = 500MHz f3dB –3dB Frequency (See Figure 2) VS = 3V to 5V l 300 600 MHz HDSEIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Single-Ended Input 2nd Harmonic –95 dBc 3rd Harmonic –96 dBc HDDIFFIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Differential Input 2nd Harmonic –98 dBc 3rd Harmonic –99 dBc IMD10M Third-Order IMD at 10MHz VS = 3V, VOUTDIFF = 2VP-P –100 dBc f1 = 9.5MHz, f2 = 10.5MHz OIP310M OIP3 at 10MHz (Note 12) 53 dBm tS Settling Time 1% Settling 9 ns 2V Step at Output 0.1% Settling 12 ns 0.01% Settling 15 ns NF Noise Figure, RS = 50Ω f = 10MHz 10 dB f3dBFILTER Differential Filter 3dB Bandwidth (Note 13) 88.5 MHz
LTC6404-4 AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 100Ω, RF = 402Ω, RL = 200Ω (See Figure 2) unless otherwise noted. VS is defi ned (V+ – V–). V + – + – + – OUTCM = (VOUT + VOUT )/2. VICM is defi ned as (VIN + VIN )/2. VOUTDIFF is defi ned as (VOUT – VOUT ). VINDIFF = (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate VS = 3V to 5V 1200 V/μs GBW Gain-Bandwidth Product VS = 3V to 5V, RI = 100Ω, RF = 499Ω, 1700 MHz fTEST = 500MHz f3dB –3dB Frequency (See Figure 2) VS = 3V to 5V l 300 530 MHz HDSEIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Single-Ended Input 2nd Harmonic –97 dBc 3rd Harmonic –98 dBc HDDIFFIN 10MHz Distortion VS = 3V, VOUTDIFF = 2VP-P Differential Input 2nd Harmonic –100 dBc 3rd Harmonic –101 dBc IMD10M Third-Order IMD at 10MHz VS = 3V, VOUTDIFF = 2VP-P –101 dBc f1 = 9.5MHz, f2 = 10.5MHz OIP310M OIP3 at 10MHz (Note 12) 54 dBm tS Settling Time 1% Settling 8 ns 2V Step at Output 0.1% Settling 11 ns 0.01% Settling 14 ns NF Noise Figure, RS = 50Ω f = 10MHz 8 dB f3dBFILTER Differential Filter 3dB Bandwidth (Note 13) 88.5 MHz 6404f 6
