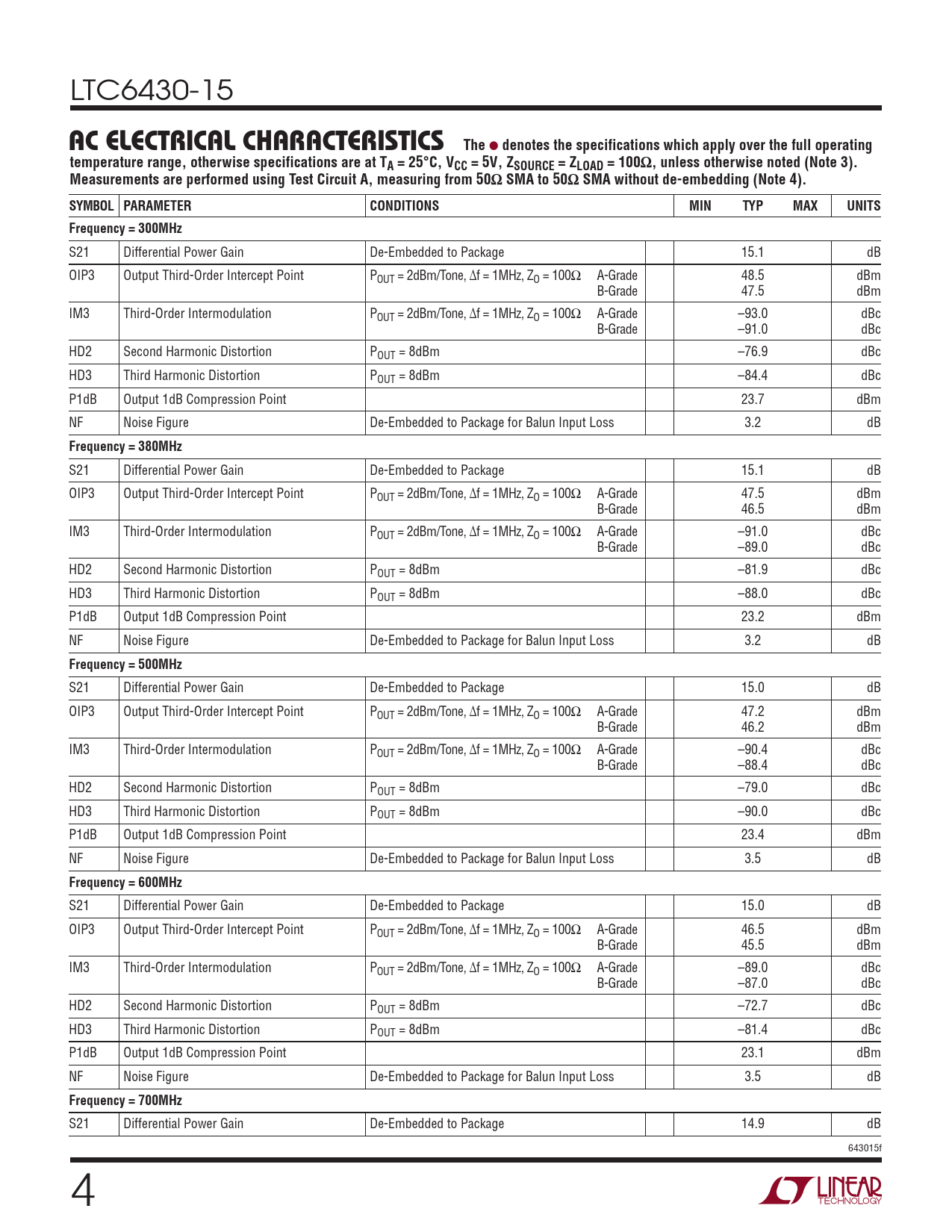

ac elecTrical characTerisTics The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC6430-15
ac elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 5V, ZSOURCE = ZLOAD = 100Ω, unless otherwise noted (Note 3). Measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Frequency = 300MHz
S21 Differential Power Gain De-Embedded to Package 15.1 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 48.5 dBm B-Grade 47.5 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –93.0 dBc B-Grade –91.0 dBc HD2 Second Harmonic Distortion POUT = 8dBm –76.9 dBc HD3 Third Harmonic Distortion POUT = 8dBm –84.4 dBc P1dB Output 1dB Compression Point 23.7 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.2 dB
Frequency = 380MHz
S21 Differential Power Gain De-Embedded to Package 15.1 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 47.5 dBm B-Grade 46.5 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –91.0 dBc B-Grade –89.0 dBc HD2 Second Harmonic Distortion POUT = 8dBm –81.9 dBc HD3 Third Harmonic Distortion POUT = 8dBm –88.0 dBc P1dB Output 1dB Compression Point 23.2 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.2 dB
Frequency = 500MHz
S21 Differential Power Gain De-Embedded to Package 15.0 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 47.2 dBm B-Grade 46.2 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –90.4 dBc B-Grade –88.4 dBc HD2 Second Harmonic Distortion POUT = 8dBm –79.0 dBc HD3 Third Harmonic Distortion POUT = 8dBm –90.0 dBc P1dB Output 1dB Compression Point 23.4 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.5 dB
Frequency = 600MHz
S21 Differential Power Gain De-Embedded to Package 15.0 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 46.5 dBm B-Grade 45.5 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –89.0 dBc B-Grade –87.0 dBc HD2 Second Harmonic Distortion POUT = 8dBm –72.7 dBc HD3 Third Harmonic Distortion POUT = 8dBm –81.4 dBc P1dB Output 1dB Compression Point 23.1 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.5 dB
Frequency = 700MHz
S21 Differential Power Gain De-Embedded to Package 14.9 dB 643015f 4 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Typical Applications Package Description Typical Application Related Parts
