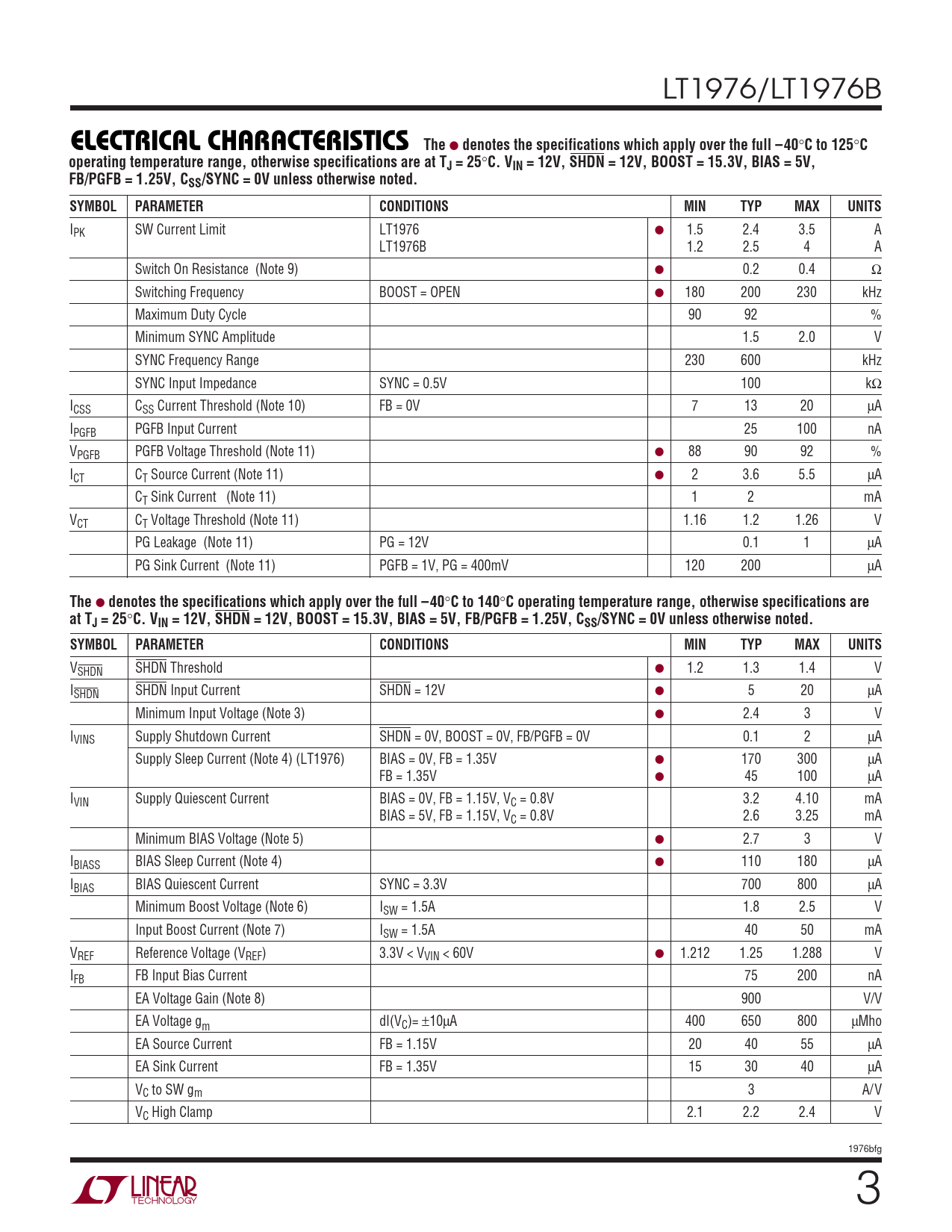

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full –40. C to 125
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1976/LT1976B
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full –40
°
C to 125
°
C operating temperature range, otherwise specifications are at TJ = 25
°
C. VIN = 12V, SHDN = 12V, BOOST = 15.3V, BIAS = 5V, FB/PGFB = 1.25V, CSS/SYNC = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IPK SW Current Limit LT1976 ● 1.5 2.4 3.5 A LT1976B 1.2 2.5 4 A Switch On Resistance (Note 9) ● 0.2 0.4 Ω Switching Frequency BOOST = OPEN ● 180 200 230 kHz Maximum Duty Cycle 90 92 % Minimum SYNC Amplitude 1.5 2.0 V SYNC Frequency Range 230 600 kHz SYNC Input Impedance SYNC = 0.5V 100 kΩ ICSS CSS Current Threshold (Note 10) FB = 0V 7 13 20 μA IPGFB PGFB Input Current 25 100 nA VPGFB PGFB Voltage Threshold (Note 11) ● 88 90 92 % ICT CT Source Current (Note 11) ● 2 3.6 5.5 μA CT Sink Current (Note 11) 1 2 mA VCT CT Voltage Threshold (Note 11) 1.16 1.2 1.26 V PG Leakage (Note 11) PG = 12V 0.1 1 μA PG Sink Current (Note 11) PGFB = 1V, PG = 400mV 120 200 μA
