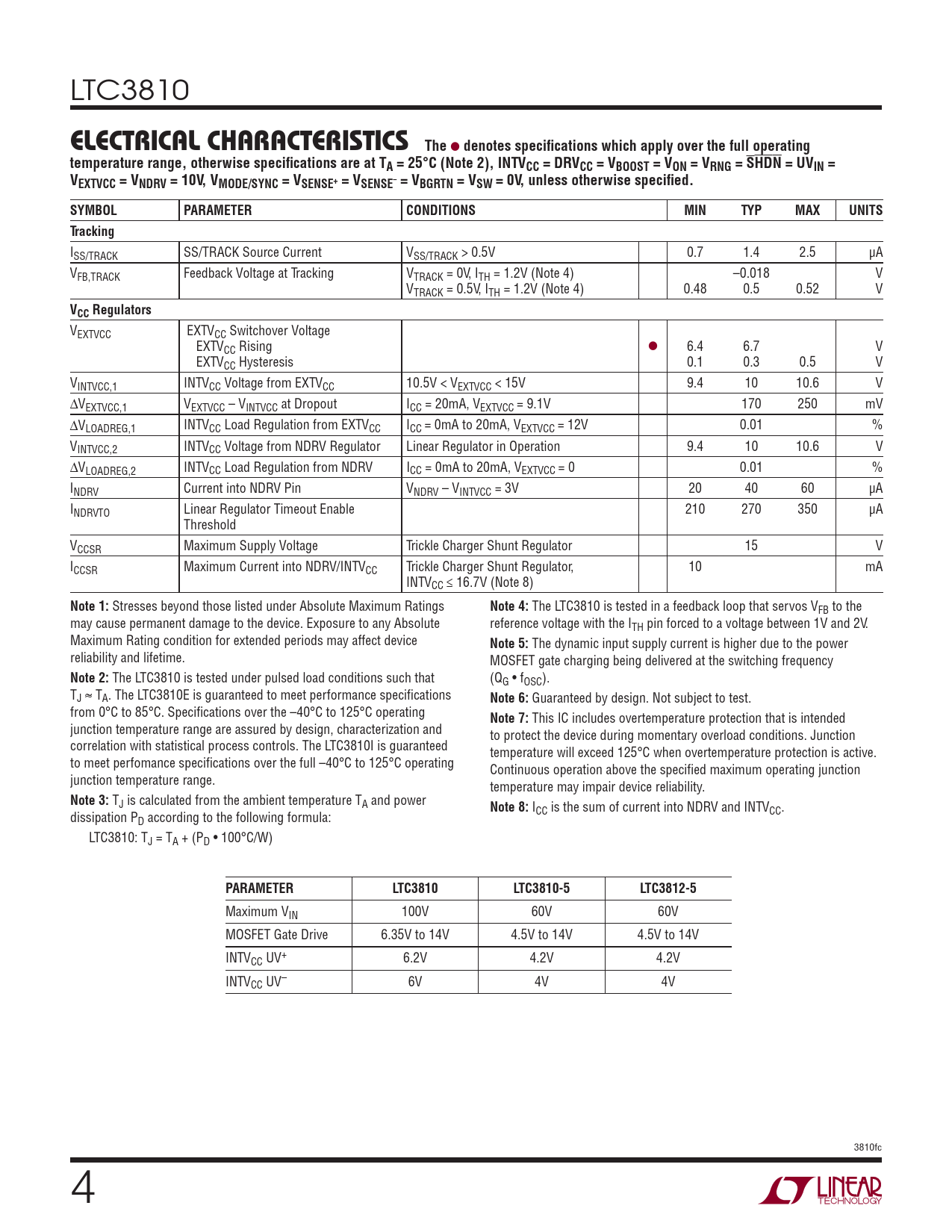

The. ELECTRICAL CHARACTERISTICS. denotes specifi cations which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3810
The ELECTRICAL CHARACTERISTICS
l
denotes specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C (Note 2), INTVCC = DRVCC = VBOOST = VON = VRNG = SHDN = UVIN = VEXTVCC = VNDRV = 10V, VMODE/SYNC = VSENSE+ = VSENSE– = VBGRTN = VSW = 0V, unless otherwise specifi ed. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Tracking
ISS/TRACK SS/TRACK Source Current VSS/TRACK > 0.5V 0.7 1.4 2.5 μA VFB,TRACK Feedback Voltage at Tracking VTRACK = 0V, ITH = 1.2V (Note 4) –0.018 V VTRACK = 0.5V, ITH = 1.2V (Note 4) 0.48 0.5 0.52 V
VCC Regulators
VEXTVCC EXTVCC Switchover Voltage EXTVCC Rising l 6.4 6.7 V EXTVCC Hysteresis 0.1 0.3 0.5 V VINTVCC,1 INTVCC Voltage from EXTVCC 10.5V < VEXTVCC < 15V 9.4 10 10.6 V ∆VEXTVCC,1 VEXTVCC – VINTVCC at Dropout ICC = 20mA, VEXTVCC = 9.1V 170 250 mV ∆VLOADREG,1 INTVCC Load Regulation from EXTVCC ICC = 0mA to 20mA, VEXTVCC = 12V 0.01 % VINTVCC,2 INTVCC Voltage from NDRV Regulator Linear Regulator in Operation 9.4 10 10.6 V ∆VLOADREG,2 INTVCC Load Regulation from NDRV ICC = 0mA to 20mA, VEXTVCC = 0 0.01 % INDRV Current into NDRV Pin VNDRV – VINTVCC = 3V 20 40 60 μA INDRVTO Linear Regulator Timeout Enable 210 270 350 μA Threshold VCCSR Maximum Supply Voltage Trickle Charger Shunt Regulator 15 V ICCSR Maximum Current into NDRV/INTVCC Trickle Charger Shunt Regulator, 10 mA INTVCC ≤ 16.7V (Note 8)
