| Fabricante | Analog Devices |
| Descripción | 60V Low IQ, Dual, 2-Phase Synchronous Step-Down DC/DC Controller |
| Páginas / Página | 40 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| Formato / tamaño de archivo | PDF / 935 Kb |
| Idioma del documento | Inglés |

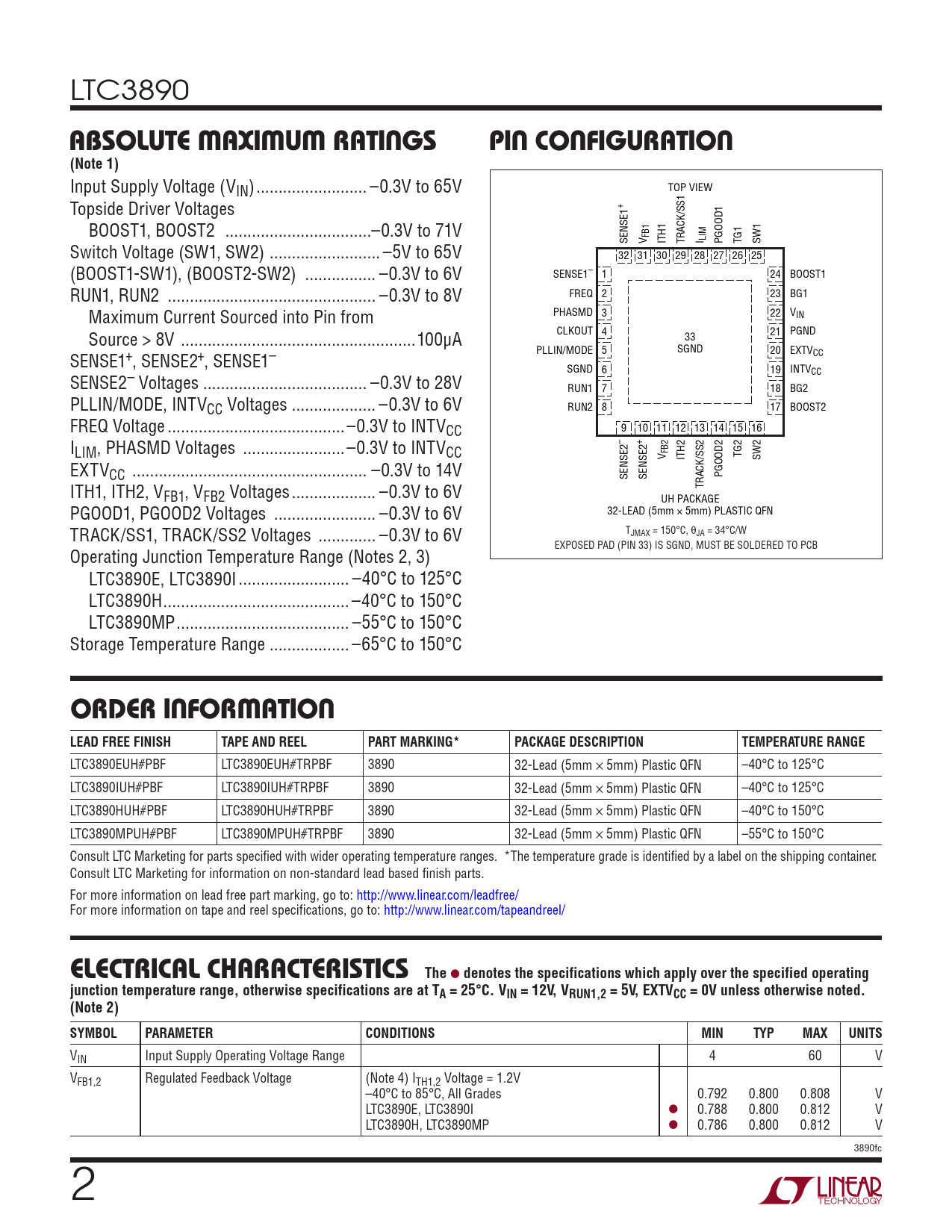

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Versión de texto del documento
LTC3890
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Input Supply Voltage (V TOP VIEW IN) ... –0.3V to 65V + Topside Driver Voltages 1 BOOST1, BOOST2 ...–0.3V to 71V SENSE1 V FB1 ITH TRACK/SS1 I LIM PGOOD1 TG1 SW1 Switch Voltage (SW1, SW2) ... –5V to 65V 32 31 30 29 28 27 26 25 (BOOST1-SW1), (BOOST2-SW2) .. –0.3V to 6V SENSE1– 1 24 BOOST1 FREQ 2 23 BG1 RUN1, RUN2 ... –0.3V to 8V PHASMD 3 22 VIN Maximum Current Sourced into Pin from CLKOUT 4 21 PGND 33 Source > 8V ...100µA PLLIN/MODE 5 SGND 20 EXTVCC SENSE1+, SENSE2+, SENSE1– SGND 6 19 INTVCC SENSE2– Voltages ... –0.3V to 28V RUN1 7 18 BG2 PLLIN/MODE, INTV RUN2 8 17 BOOST2 CC Voltages ... –0.3V to 6V FREQ Voltage ..–0.3V to INTV 9 10 11 12 13 14 15 16 CC – + 2 ILIM, PHASMD Voltages ...–0.3V to INTVCC V FB2 ITH TG2 SW2 EXTVCC ... –0.3V to 14V SENSE2 SENSE2 PGOOD2 TRACK/SS2 ITH1, ITH2, VFB1, VFB2 Voltages ... –0.3V to 6V UH PACKAGE 32-LEAD (5mm × 5mm) PLASTIC QFN PGOOD1, PGOOD2 Voltages ... –0.3V to 6V TJMAX = 150°C, θJA = 34°C/W TRACK/SS1, TRACK/SS2 Voltages ... –0.3V to 6V EXPOSED PAD (PIN 33) IS SGND, MUST BE SOLDERED TO PCB Operating Junction Temperature Range (Notes 2, 3) LTC3890E, LTC3890I ... –40°C to 125°C LTC3890H .. –40°C to 150°C LTC3890MP ... –55°C to 150°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3890EUH#PBF LTC3890EUH#TRPBF 3890 32-Lead (5mm × 5mm) Plastic QFN –40°C to 125°C LTC3890IUH#PBF LTC3890IUH#TRPBF 3890 32-Lead (5mm × 5mm) Plastic QFN –40°C to 125°C LTC3890HUH#PBF LTC3890HUH#TRPBF 3890 32-Lead (5mm × 5mm) Plastic QFN –40°C to 150°C LTC3890MPUH#PBF LTC3890MPUH#TRPBF 3890 32-Lead (5mm × 5mm) Plastic QFN –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
