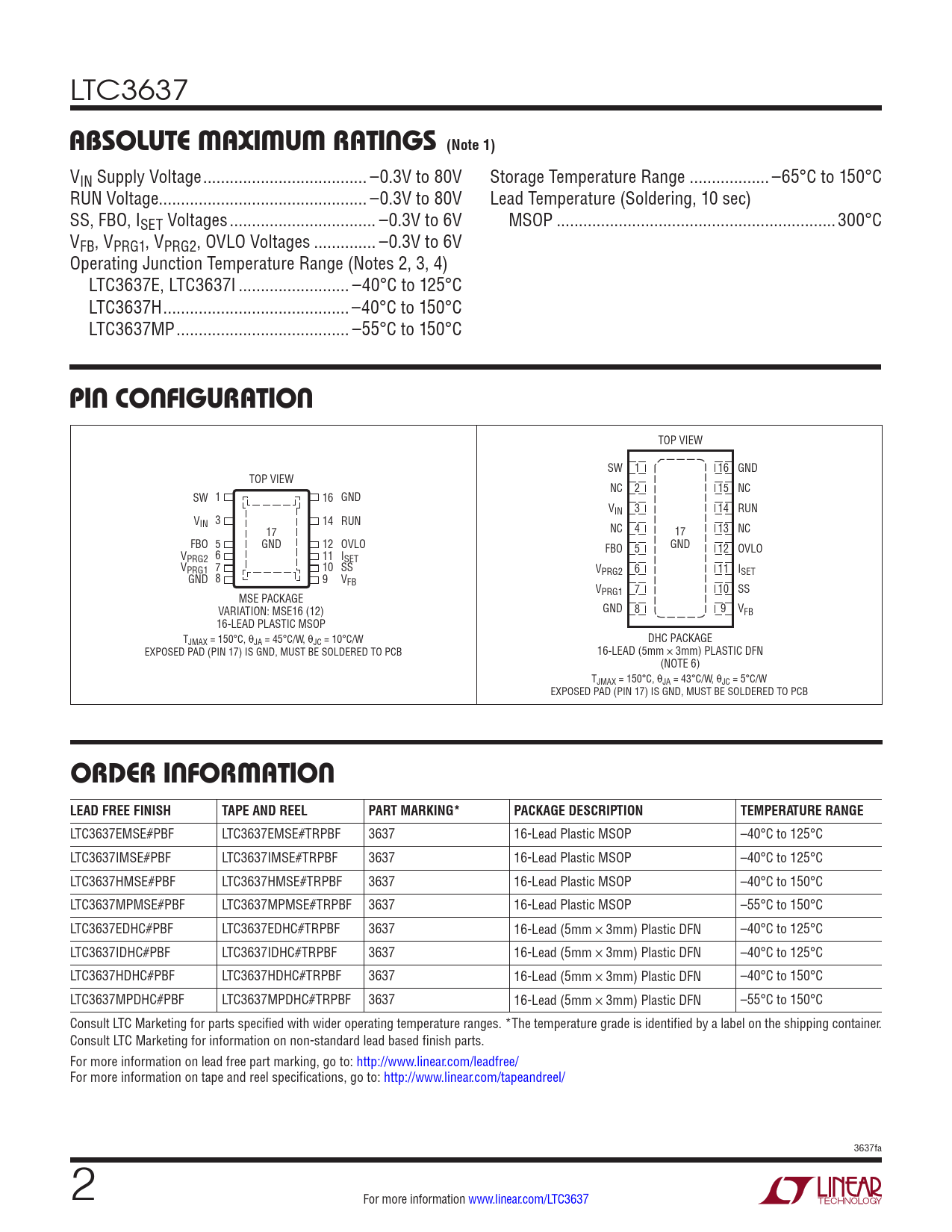

LTC3637
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN Supply Voltage ... –0.3V to 80V Storage Temperature Range .. –65°C to 150°C RUN Voltage... –0.3V to 80V Lead Temperature (Soldering, 10 sec) SS, FBO, ISET Voltages ... –0.3V to 6V MSOP ...300°C VFB, VPRG1, VPRG2, OVLO Voltages .. –0.3V to 6V Operating Junction Temperature Range (Notes 2, 3, 4) LTC3637E, LTC3637I ... –40°C to 125°C LTC3637H .. –40°C to 150°C LTC3637MP ... –55°C to 150°C
PIN CONFIGURATION
TOP VIEW SW 1 16 GND TOP VIEW NC 2 15 NC SW 1 16 GND VIN 3 14 RUN V 3 IN 14 RUN 17 NC 4 13 17 NC FBO 5 GND 12 OVLO GND FBO 5 12 OVLO V 6 PRG2 11 ISET V 7 PRG1 10 SS VPRG2 6 11 ISET GND 8 9 VFB VPRG1 7 10 SS MSE PACKAGE VARIATION: MSE16 (12) GND 8 9 VFB 16-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 45°C/W, θJC = 10°C/W DHC PACKAGE EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB 16-LEAD (5mm × 3mm) PLASTIC DFN (NOTE 6) TJMAX = 150°C, θJA = 43°C/W, θJC = 5°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3637EMSE#PBF LTC3637EMSE#TRPBF 3637 16-Lead Plastic MSOP –40°C to 125°C LTC3637IMSE#PBF LTC3637IMSE#TRPBF 3637 16-Lead Plastic MSOP –40°C to 125°C LTC3637HMSE#PBF LTC3637HMSE#TRPBF 3637 16-Lead Plastic MSOP –40°C to 150°C LTC3637MPMSE#PBF LTC3637MPMSE#TRPBF 3637 16-Lead Plastic MSOP –55°C to 150°C LTC3637EDHC#PBF LTC3637EDHC#TRPBF 3637 16-Lead (5mm × 3mm) Plastic DFN –40°C to 125°C LTC3637IDHC#PBF LTC3637IDHC#TRPBF 3637 16-Lead (5mm × 3mm) Plastic DFN –40°C to 125°C LTC3637HDHC#PBF LTC3637HDHC#TRPBF 3637 16-Lead (5mm × 3mm) Plastic DFN –40°C to 150°C LTC3637MPDHC#PBF LTC3637MPDHC#TRPBF 3637 16-Lead (5mm × 3mm) Plastic DFN –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3637fa 2 For more information www.linear.com/LTC3637 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
