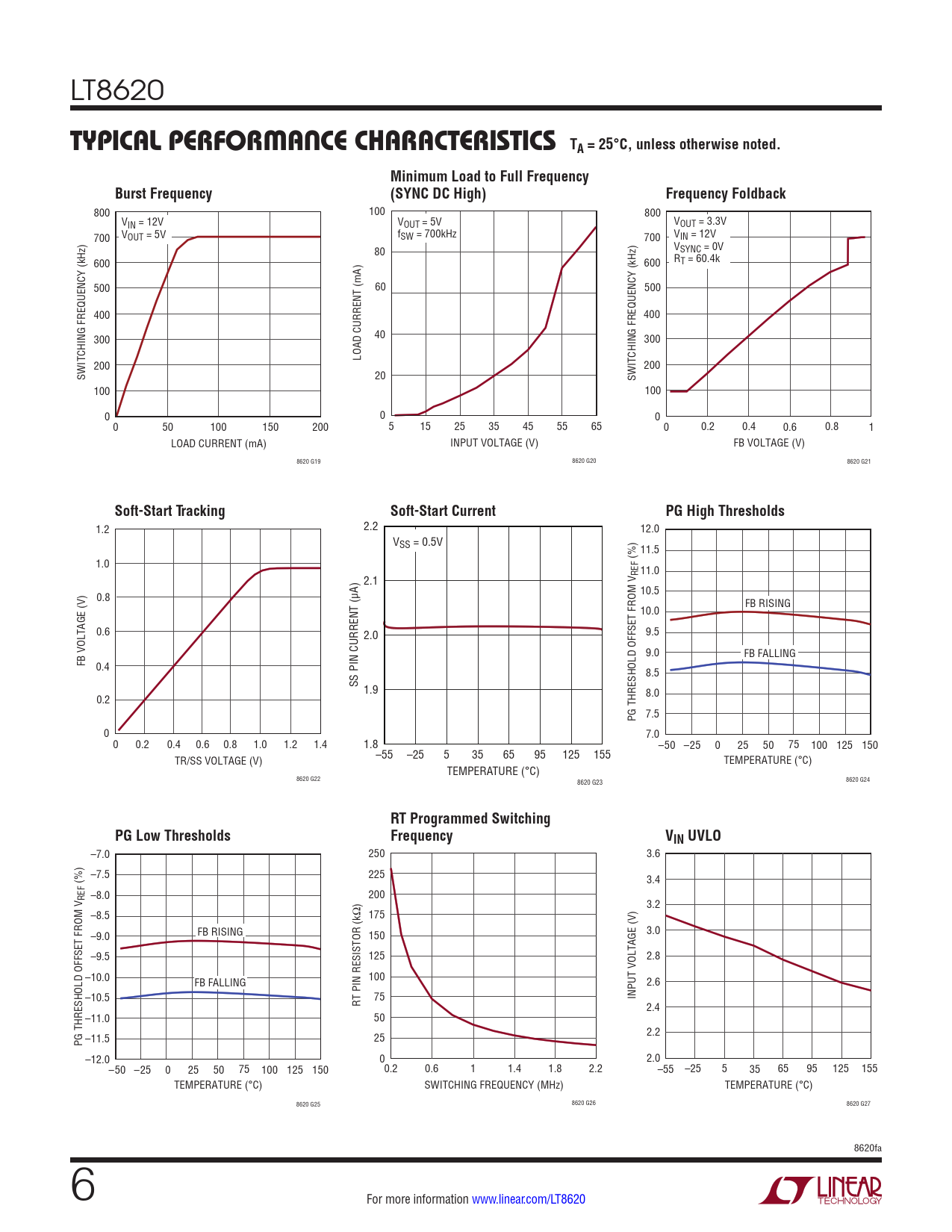

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Minimum Load to Full Frequency. Burst Frequency
