Datasheet RH3845MK DICE (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | Radiation Hardened High Voltage Synchronous Step-Down Controller |
| Páginas / Página | 8 / 7 — rEvIsIon hIstory (Revision history begins at Rev C). REV. DATE. … |
| Formato / tamaño de archivo | PDF / 166 Kb |
| Idioma del documento | Inglés |

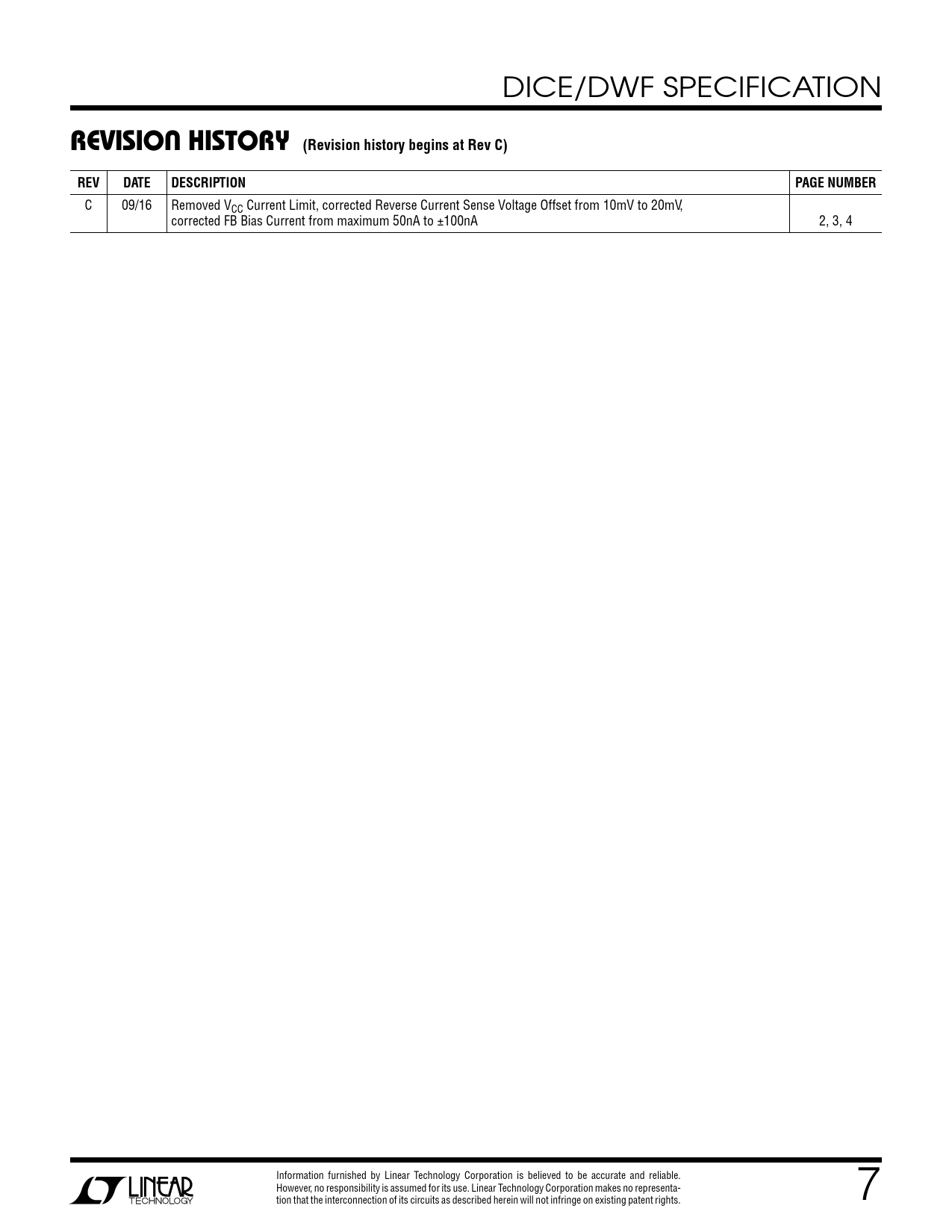

rEvIsIon hIstory (Revision history begins at Rev C). REV. DATE. DESCRIPTION. PAGE NUMBER
Línea de modelo para esta hoja de datos
Versión de texto del documento
DICE/DWF SPECIFICATION
rEvIsIon hIstory (Revision history begins at Rev C) REV DATE DESCRIPTION PAGE NUMBER
C 09/16 Removed VCC Current Limit, corrected Reverse Current Sense Voltage Offset from 10mV to 20mV, corrected FB Bias Current from maximum 50nA to ±100nA 2, 3, 4 Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. 7 Document Outline Description DICE Pinout Absolute Maximum Ratings Table 1: DICE/DWF Electrical Test Limits Table 2: Electrical Characteristics Table 3: Electrical Characteristics Table 4: Electrical Test Requirements Total Dose Bias Circuit — Run Mode Total Dose Bias Circuit — Shutdown Mode Burn-In Circuit — Run Mode Typical Performance Characteristics
