Datasheet LT8631 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 100V, 1A Synchronous Micropower Step-Down Regulator |
| Páginas / Página | 26 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS. Burst Waveforms. Switching … |
| Formato / tamaño de archivo | PDF / 375 Kb |
| Idioma del documento | Inglés |

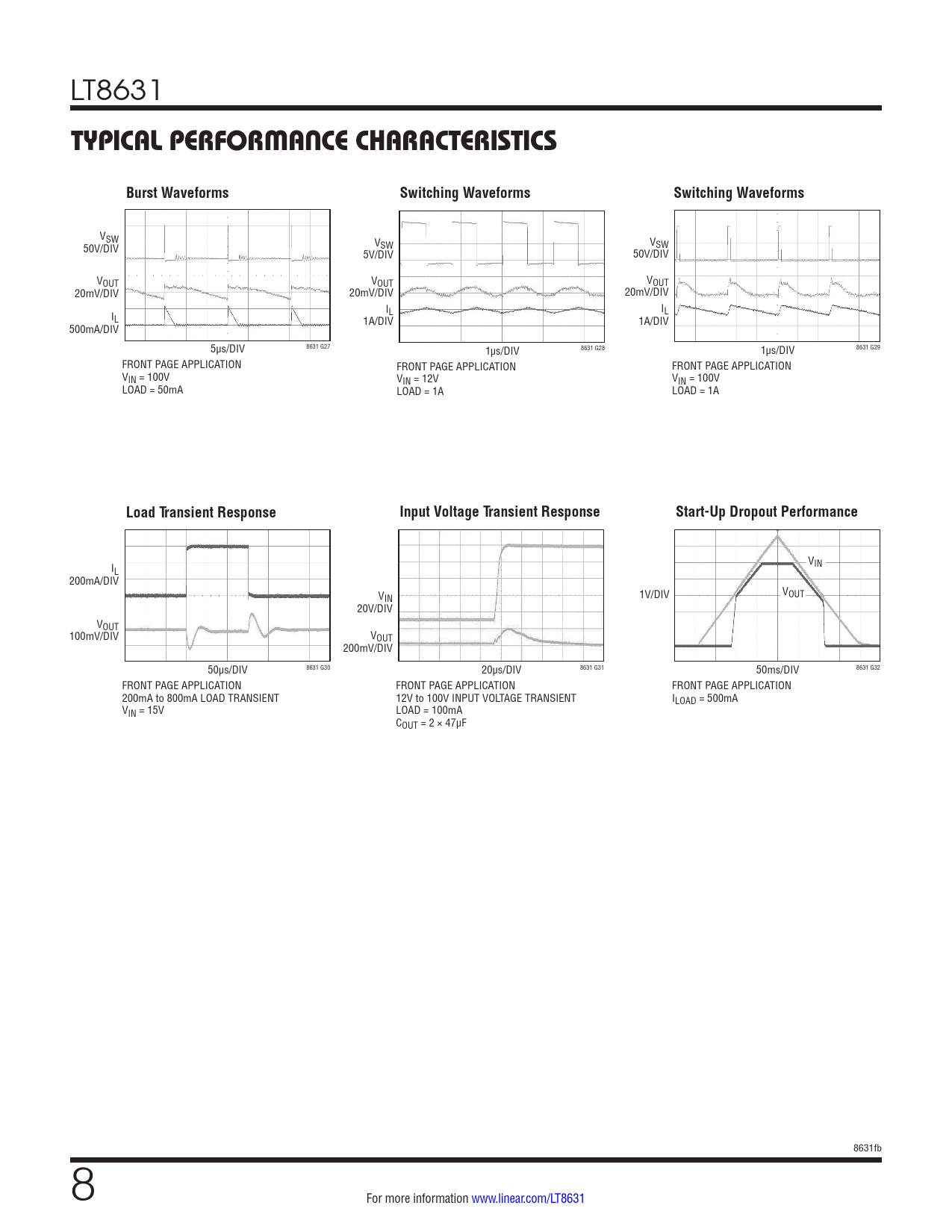

TYPICAL PERFORMANCE CHARACTERISTICS. Burst Waveforms. Switching Waveforms. Load Transient Response
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT8631
TYPICAL PERFORMANCE CHARACTERISTICS Burst Waveforms Switching Waveforms Switching Waveforms
VSW V 50V/DIV VSW SW 5V/DIV 50V/DIV VOUT VOUT VOUT 20mV/DIV 20mV/DIV 20mV/DIV I I I L L L 1A/DIV 1A/DIV 500mA/DIV 5µs/DIV 8631 G27 1µs/DIV 8631 G28 1µs/DIV 8631 G29 FRONT PAGE APPLICATION FRONT PAGE APPLICATION FRONT PAGE APPLICATION VIN = 100V VIN = 12V VIN = 100V LOAD = 50mA LOAD = 1A LOAD = 1A
Load Transient Response Input Voltage Transient Response Start-Up Dropout Performance
V I IN L 200mA/DIV V V IN 1V/DIV OUT 20V/DIV VOUT 100mV/DIV VOUT 200mV/DIV 50µs/DIV 8631 G30 20µs/DIV 8631 G31 50ms/DIV 8631 G32 FRONT PAGE APPLICATION FRONT PAGE APPLICATION FRONT PAGE APPLICATION 200mA to 800mA LOAD TRANSIENT 12V to 100V INPUT VOLTAGE TRANSIENT ILOAD = 500mA VIN = 15V LOAD = 100mA COUT = 2 × 47µF 8631fb 8 For more information www.linear.com/LT8631
