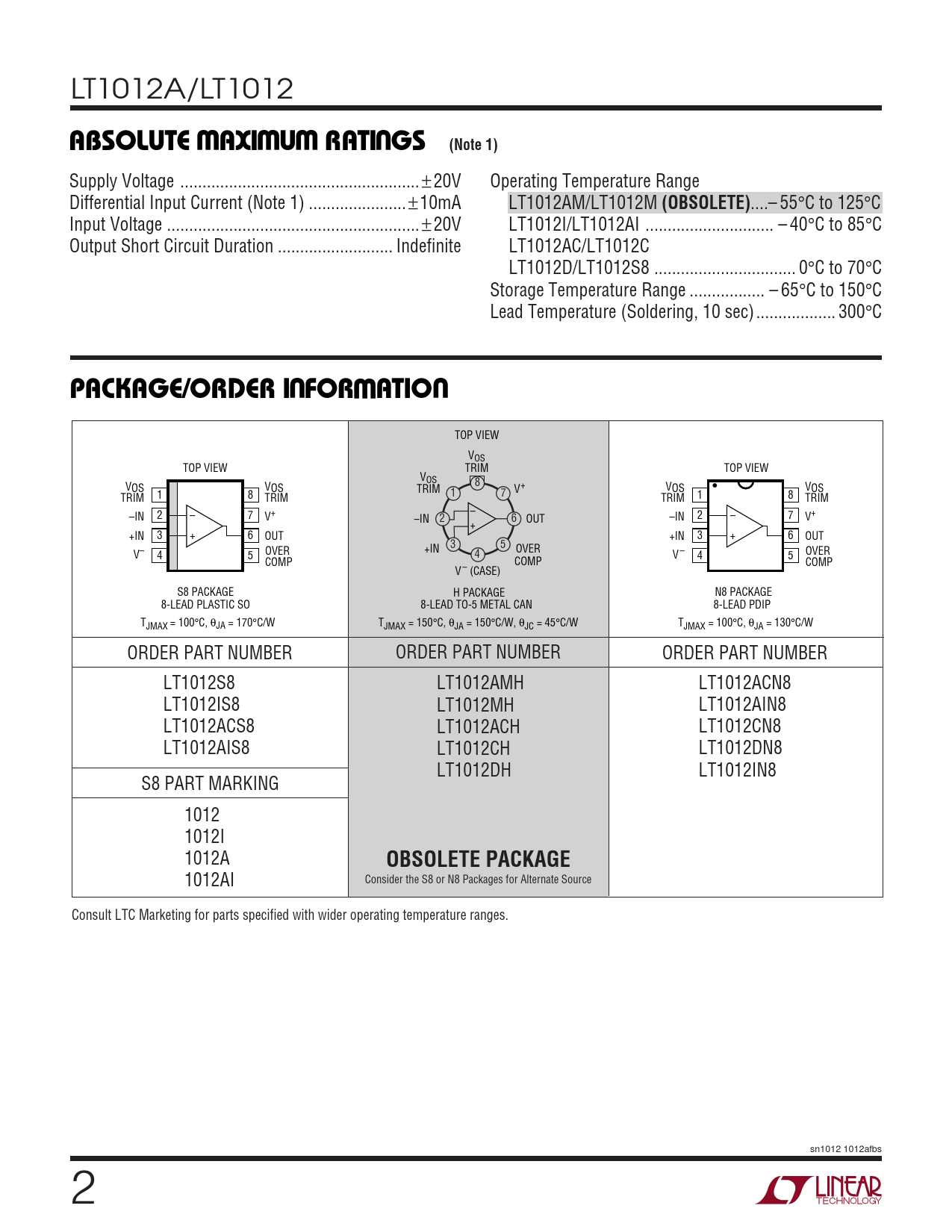

LT1012A/LT1012
W W W U ABSOLUTE AXI U RATI GS (Note 1)
Supply Voltage .. ± 20V Operating Temperature Range Differential Input Current (Note 1) .. ± 10mA LT1012AM/LT1012M
(OBSOLETE)
..– 55°C to 125°C Input Voltage ... ± 20V LT1012I/LT1012AI ... – 40°C to 85°C Output Short Circuit Duration .. Indefinite LT1012AC/LT1012C LT1012D/LT1012S8 .. 0°C to 70°C Storage Temperature Range ... – 65°C to 150°C Lead Temperature (Soldering, 10 sec).. 300°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW VOS TOP VIEW TRIM TOP VIEW VOS V 8 OS VOS TRIM V+ VOS VOS 1 8 1 TRIM TRIM 7 1 8 TRIM TRIM – –IN 2 – 7 V+ –IN 2 6 OUT –IN 2 – 7 V+ + +IN 3 + 6 OUT +IN 3 + 6 OUT +IN 3 5 OVER V– 4 5 OVER 4 V – 4 5 OVER COMP COMP COMP V – (CASE) S8 PACKAGE H PACKAGE N8 PACKAGE 8-LEAD PLASTIC SO 8-LEAD TO-5 METAL CAN 8-LEAD PDIP TJMAX = 100°C, θJA = 170°C/W TJMAX = 150°C, θJA = 150°C/W, θJC = 45°C/W TJMAX = 100°C, θJA = 130°C/W ORDER PART NUMBER ORDER PART NUMBER ORDER PART NUMBER LT1012S8 LT1012AMH LT1012ACN8 LT1012IS8 LT1012MH LT1012AIN8 LT1012ACS8 LT1012ACH LT1012CN8 LT1012AIS8 LT1012CH LT1012DN8 LT1012DH LT1012IN8 S8 PART MARKING 1012 1012I 1012A
OBSOLETE PACKAGE
1012AI Consider the S8 or N8 Packages for Alternate Source Consult LTC Marketing for parts specified with wider operating temperature ranges. sn1012 1012afbs 2
