Datasheet AD648 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Dual Precision, Low Power BiFET Op Amp |
| Páginas / Página | 12 / 4 — AD648. ABSOLUTE MAXIMUM RATINGS1. CAUTION. WARNING!. ESD SENSITIVE DEVICE |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 209 Kb |
| Idioma del documento | Inglés |

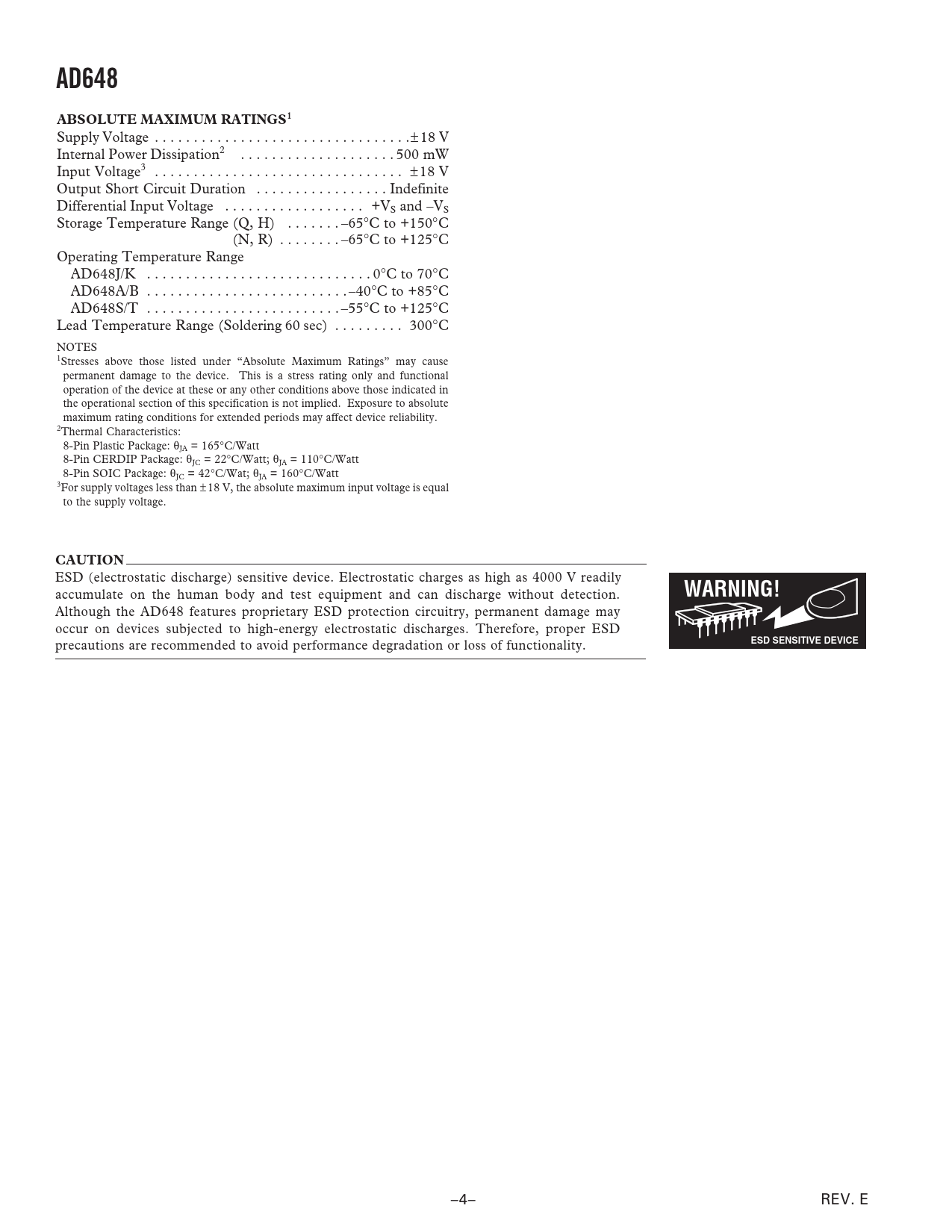

AD648. ABSOLUTE MAXIMUM RATINGS1. CAUTION. WARNING!. ESD SENSITIVE DEVICE
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD648 ABSOLUTE MAXIMUM RATINGS1
Supply Voltage . .± 18 V Internal Power Dissipation2 . 500 mW Input Voltage3 . ± 18 V Output Short Circuit Duration . Indefinite Differential Input Voltage . +VS and –VS Storage Temperature Range (Q, H) . –65°C to +150°C Storage Temperature Range (N, R) . –65°C to +125°C Operating Temperature Range AD648J/K . 0°C to 70°C AD648A/B . –40°C to +85°C AD648S/T . –55°C to +125°C Lead Temperature Range (Soldering 60 sec) . 300°C NOTES 1Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2Thermal Characteristics: 8-Pin Plastic Package: θJA = 165°C/Watt 8-Pin CERDIP Package: θJC = 22°C/Watt; θJA = 110°C/Watt 8-Pin SOIC Package: θJC = 42°C/Wat; θJA = 160°C/Watt 3For supply voltages less than ± 18 V, the absolute maximum input voltage is equal to the supply voltage.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection.
WARNING!
Although the AD648 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD
ESD SENSITIVE DEVICE
precautions are recommended to avoid performance degradation or loss of functionality. –4– REV. E
