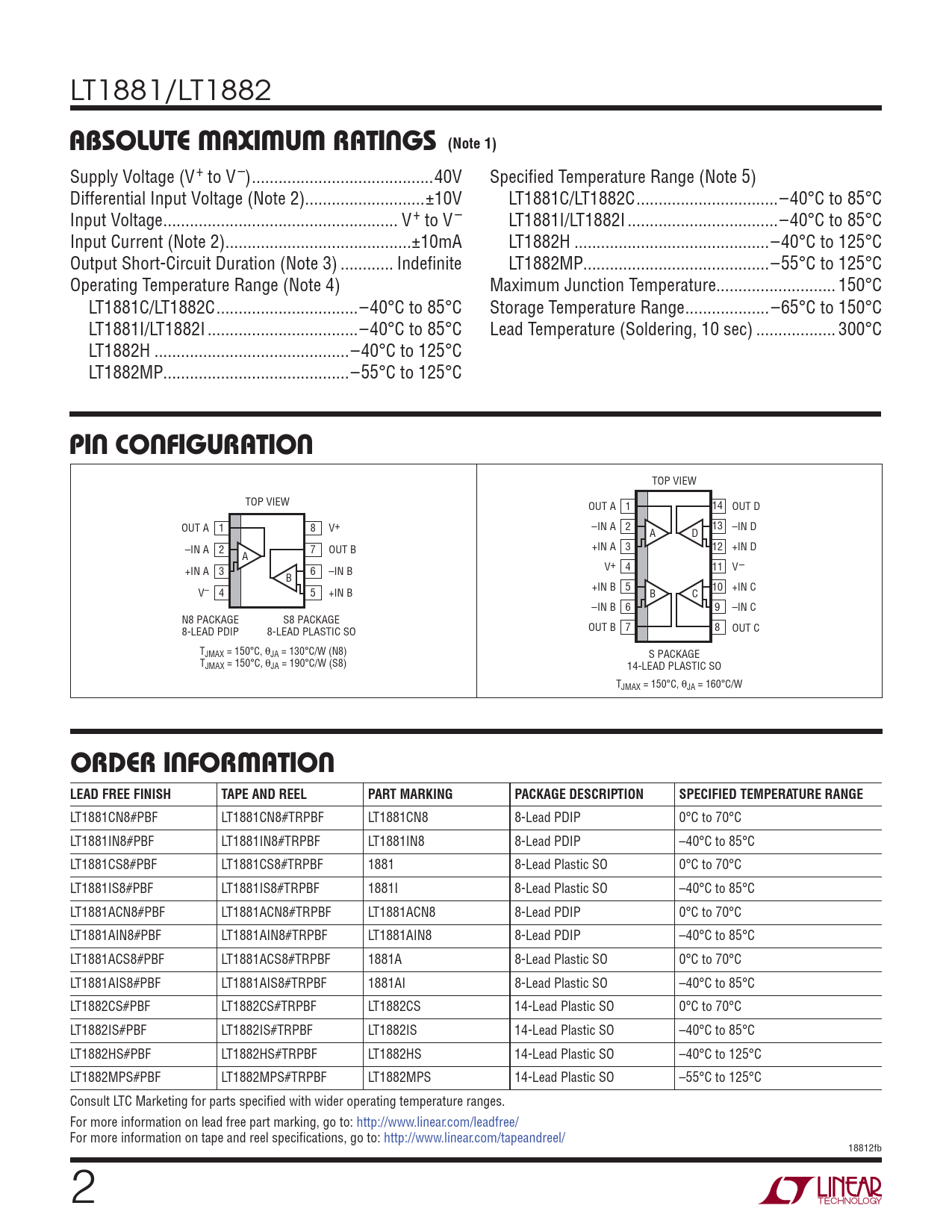

LT1881/LT1882
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage (V+ to V –) ...40V Specifi ed Temperature Range (Note 5) Differential Input Voltage (Note 2)...±10V LT1881C/LT1882C ..–40°C to 85°C Input Voltage ... V+ to V – LT1881I/LT1882I ..–40°C to 85°C Input Current (Note 2) ..±10mA LT1882H ..–40°C to 125°C Output Short-Circuit Duration (Note 3) .. Indefi nite LT1882MP..–55°C to 125°C Operating Temperature Range (Note 4) Maximum Junction Temperature... 150°C LT1881C/LT1882C ..–40°C to 85°C Storage Temperature Range ... –65°C to 150°C LT1881I/LT1882I ..–40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C LT1882H ..–40°C to 125°C LT1882MP..–55°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT A 1 14 OUT D OUT A 1 8 V+ –IN A 2 13 –IN D A D –IN A 2 7 OUT B +IN A 3 12 +IN D A +IN A 3 6 –IN B V+ 4 11 V– B +IN B 5 10 +IN C V– 4 5 +IN B B C –IN B 6 9 –IN C N8 PACKAGE S8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO OUT B 7 8 OUT C TJMAX = 150°C, θJA = 130°C/W (N8) S PACKAGE TJMAX = 150°C, θJA = 190°C/W (S8) 14-LEAD PLASTIC SO TJMAX = 150°C, θJA = 160°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1881CN8#PBF LT1881CN8#TRPBF LT1881CN8 8-Lead PDIP 0°C to 70°C LT1881IN8#PBF LT1881IN8#TRPBF LT1881IN8 8-Lead PDIP –40°C to 85°C LT1881CS8#PBF LT1881CS8#TRPBF 1881 8-Lead Plastic SO 0°C to 70°C LT1881IS8#PBF LT1881IS8#TRPBF 1881I 8-Lead Plastic SO –40°C to 85°C LT1881ACN8#PBF LT1881ACN8#TRPBF LT1881ACN8 8-Lead PDIP 0°C to 70°C LT1881AIN8#PBF LT1881AIN8#TRPBF LT1881AIN8 8-Lead PDIP –40°C to 85°C LT1881ACS8#PBF LT1881ACS8#TRPBF 1881A 8-Lead Plastic SO 0°C to 70°C LT1881AIS8#PBF LT1881AIS8#TRPBF 1881AI 8-Lead Plastic SO –40°C to 85°C LT1882CS#PBF LT1882CS#TRPBF LT1882CS 14-Lead Plastic SO 0°C to 70°C LT1882IS#PBF LT1882IS#TRPBF LT1882IS 14-Lead Plastic SO –40°C to 85°C LT1882HS#PBF LT1882HS#TRPBF LT1882HS 14-Lead Plastic SO –40°C to 125°C LT1882MPS#PBF LT1882MPS#TRPBF LT1882MPS 14-Lead Plastic SO –55°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 18812fb 2
