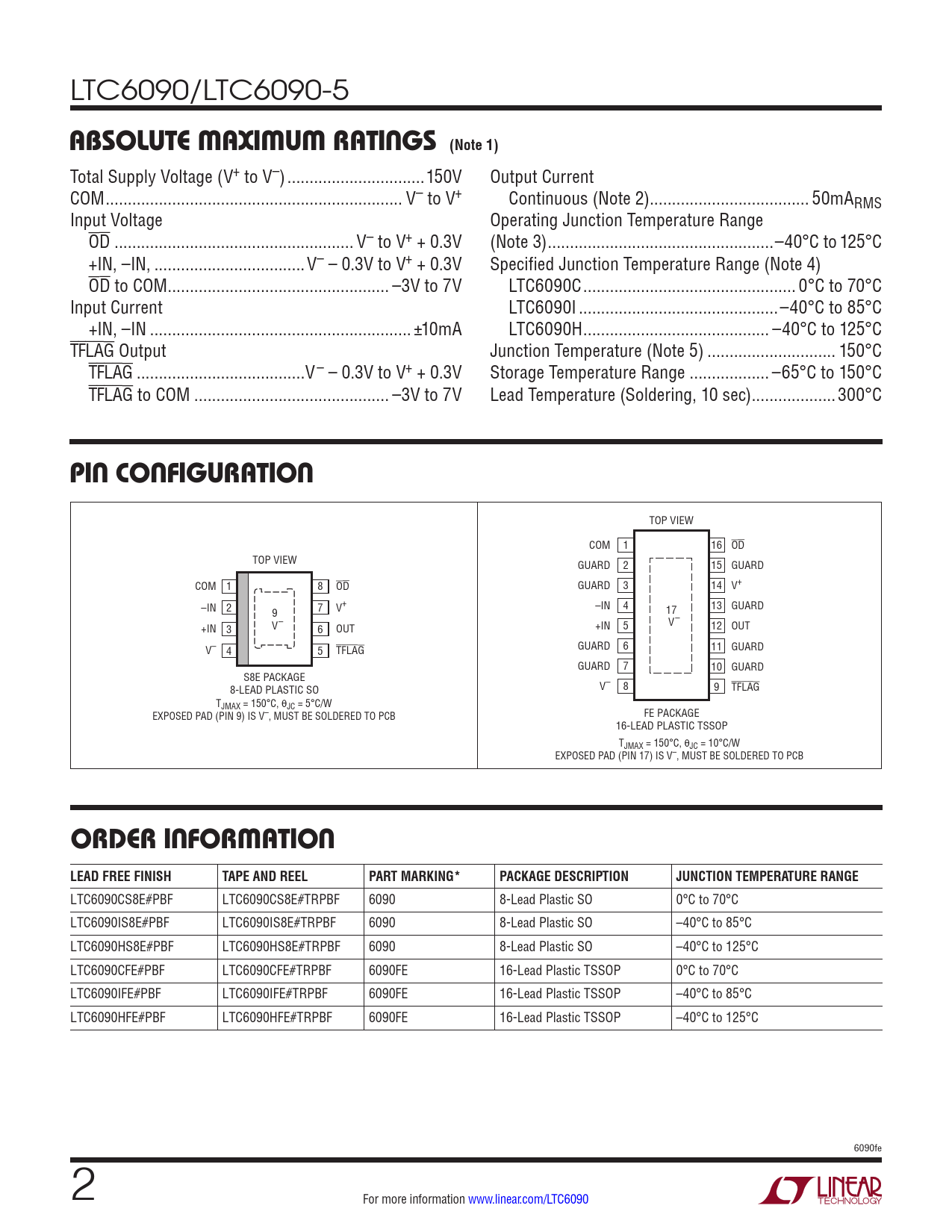

LTC6090/LTC6090-5
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ...150V Output Current COM ... V– to V+ Continuous (Note 2).. 50mARMS Input Voltage Operating Junction Temperature Range OD .. V– to V+ + 0.3V (Note 3) ...–40°C to 125°C +IN, –IN, ..V– – 0.3V to V+ + 0.3V Specified Junction Temperature Range (Note 4) OD to COM .. –3V to 7V LTC6090C .. 0°C to 70°C Input Current LTC6090I ...–40°C to 85°C +IN, –IN ... ±10mA LTC6090H .. –40°C to 125°C TFLAG Output Junction Temperature (Note 5) ... 150°C TFLAG ..V– – 0.3V to V+ + 0.3V Storage Temperature Range .. –65°C to 150°C TFLAG to COM .. –3V to 7V Lead Temperature (Soldering, 10 sec) ...300°C
PIN CONFIGURATION
TOP VIEW COM 1 16 OD TOP VIEW GUARD 2 15 GUARD COM 1 8 OD GUARD 3 14 V+ –IN 2 7 –IN 4 13 GUARD 9 V+ 17 +IN V– 3 V– 6 OUT +IN 5 12 OUT V– 4 5 TFLAG GUARD 6 11 GUARD GUARD 7 10 GUARD S8E PACKAGE 8-LEAD PLASTIC SO V– 8 9 TFLAG TJMAX = 150°C, θJC = 5°C/W EXPOSED PAD (PIN 9) IS V–, MUST BE SOLDERED TO PCB FE PACKAGE 16-LEAD PLASTIC TSSOP TJMAX = 150°C, θJC = 10°C/W EXPOSED PAD (PIN 17) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION JUNCTION TEMPERATURE RANGE
LTC6090CS8E#PBF LTC6090CS8E#TRPBF 6090 8-Lead Plastic SO 0°C to 70°C LTC6090IS8E#PBF LTC6090IS8E#TRPBF 6090 8-Lead Plastic SO –40°C to 85°C LTC6090HS8E#PBF LTC6090HS8E#TRPBF 6090 8-Lead Plastic SO –40°C to 125°C LTC6090CFE#PBF LTC6090CFE#TRPBF 6090FE 16-Lead Plastic TSSOP 0°C to 70°C LTC6090IFE#PBF LTC6090IFE#TRPBF 6090FE 16-Lead Plastic TSSOP –40°C to 85°C LTC6090HFE#PBF LTC6090HFE#TRPBF 6090FE 16-Lead Plastic TSSOP –40°C to 125°C 6090fe 2 For more information www.linear.com/LTC6090 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
