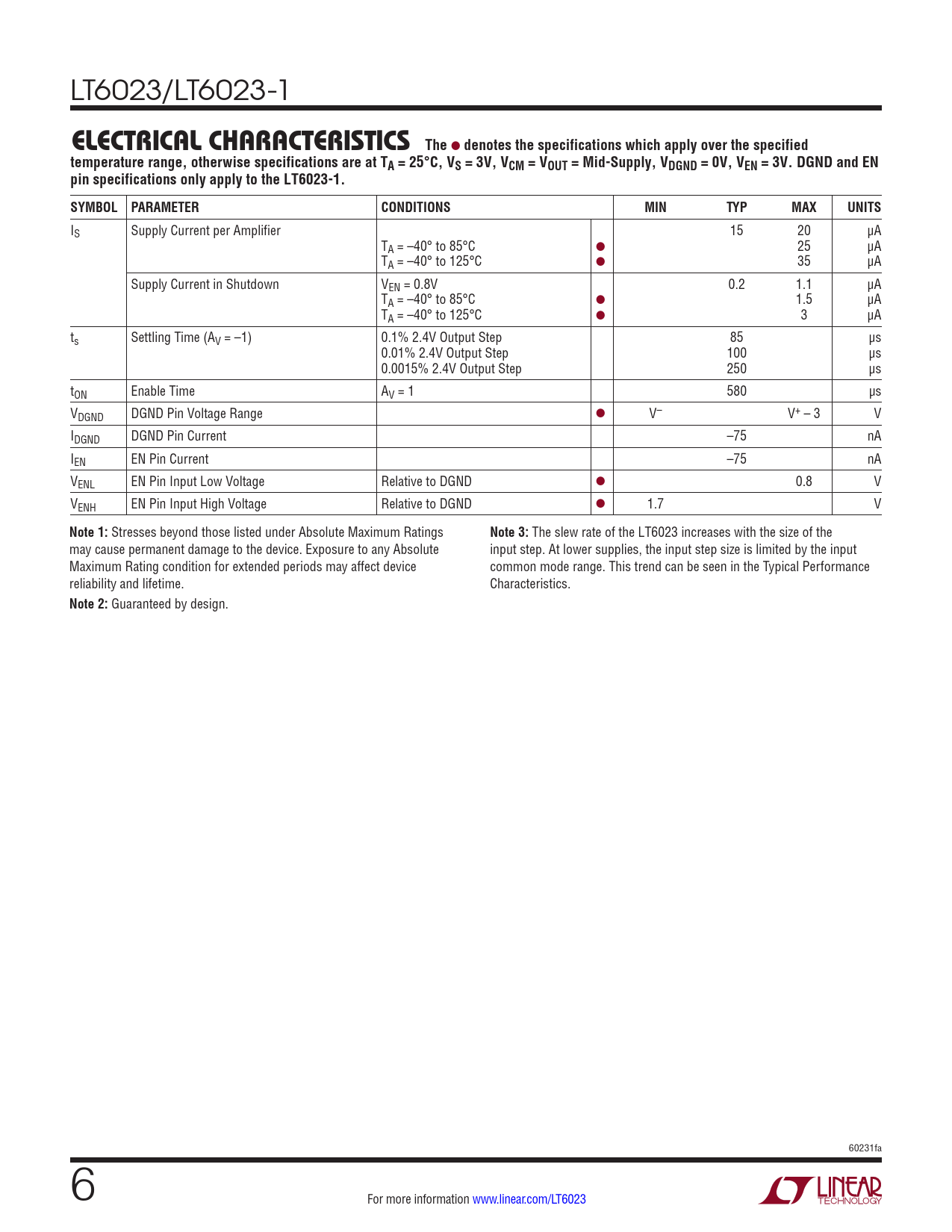

LT6023/LT6023-1
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified temperature range, otherwise specifications are at TA = 25°C, VS = 3V, VCM = VOUT = Mid-Supply, VDGND = 0V, VEN = 3V. DGND and EN pin specifications only apply to the LT6023-1. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IS Supply Current per Amplifier 15 20 μA TA = –40° to 85°C l 25 μA TA = –40° to 125°C l 35 μA Supply Current in Shutdown VEN = 0.8V 0.2 1.1 μA TA = –40° to 85°C l 1.5 μA TA = –40° to 125°C l 3 μA ts Settling Time (AV = –1) 0.1% 2.4V Output Step 85 μs 0.01% 2.4V Output Step 100 μs 0.0015% 2.4V Output Step 250 μs tON Enable Time AV = 1 580 µs VDGND DGND Pin Voltage Range l V– V+ – 3 V IDGND DGND Pin Current –75 nA IEN EN Pin Current –75 nA VENL EN Pin Input Low Voltage Relative to DGND l 0.8 V VENH EN Pin Input High Voltage Relative to DGND l 1.7 V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
The slew rate of the LT6023 increases with the size of the may cause permanent damage to the device. Exposure to any Absolute input step. At lower supplies, the input step size is limited by the input Maximum Rating condition for extended periods may affect device common mode range. This trend can be seen in the Typical Performance reliability and lifetime. Characteristics.
Note 2:
Guaranteed by design. 60231fa 6 For more information www.linear.com/LT6023 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Typical Application Related Parts
