Datasheet LT6023, LT6023-1 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Dual Micropower, 1.4V/μs Precision Rail-to-Rail Output Amplifier |
| Páginas / Página | 22 / 4 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply … |
| Formato / tamaño de archivo | PDF / 784 Kb |
| Idioma del documento | Inglés |

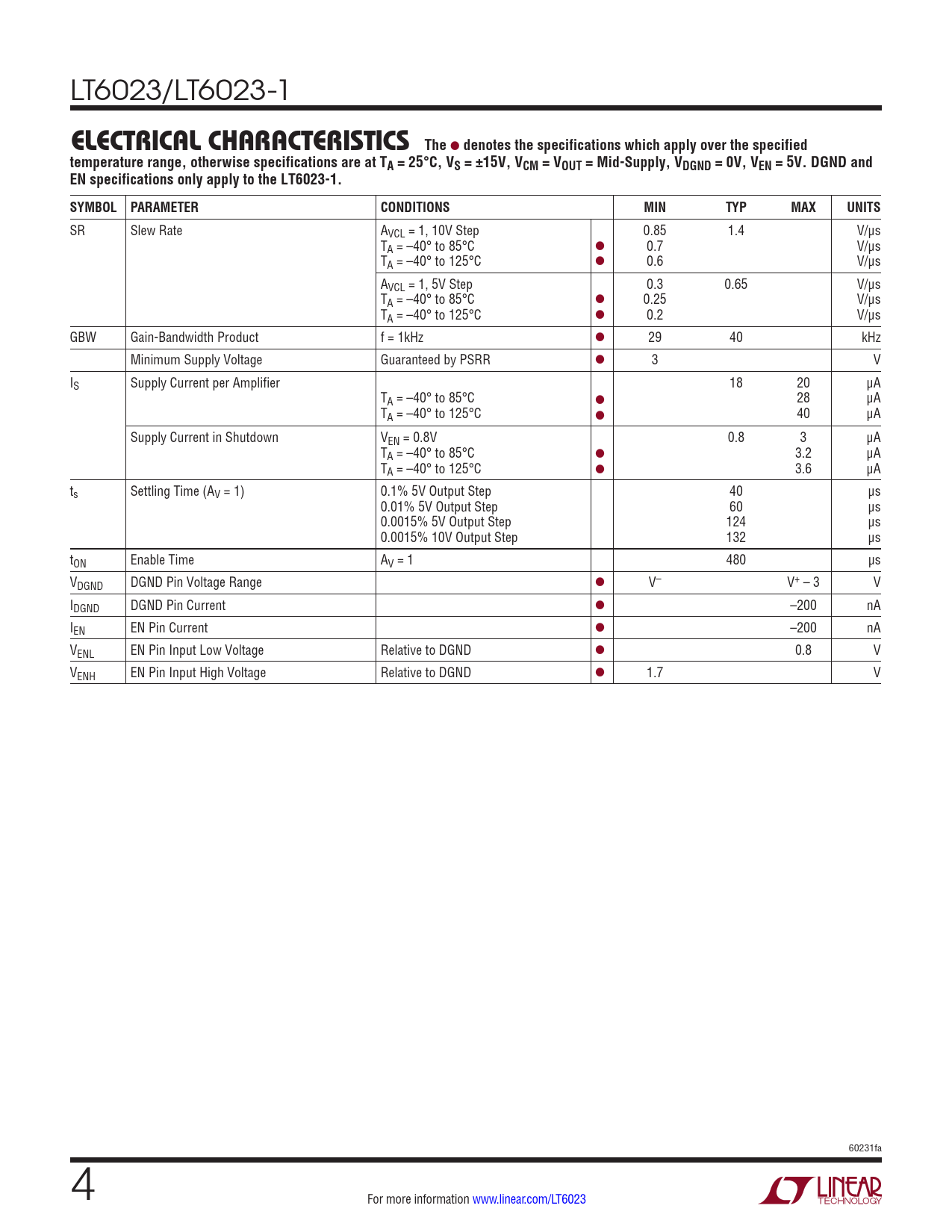

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the specified
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT6023/LT6023-1
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified temperature range, otherwise specifications are at TA = 25°C, VS = ±15V, VCM = VOUT = Mid-Supply, VDGND = 0V, VEN = 5V. DGND and EN specifications only apply to the LT6023-1. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate AVCL = 1, 10V Step 0.85 1.4 V/μs TA = –40° to 85°C l 0.7 V/μs TA = –40° to 125°C l 0.6 V/μs AVCL = 1, 5V Step 0.3 0.65 V/μs TA = –40° to 85°C l 0.25 V/μs TA = –40° to 125°C l 0.2 V/μs GBW Gain-Bandwidth Product f = 1kHz l 29 40 kHz Minimum Supply Voltage Guaranteed by PSRR l 3 V IS Supply Current per Amplifier 18 20 μA TA = –40° to 85°C l 28 μA TA = –40° to 125°C l 40 μA Supply Current in Shutdown VEN = 0.8V 0.8 3 μA TA = –40° to 85°C l 3.2 μA TA = –40° to 125°C l 3.6 μA ts Settling Time (AV = 1) 0.1% 5V Output Step 40 μs 0.01% 5V Output Step 60 μs 0.0015% 5V Output Step 124 μs 0.0015% 10V Output Step 132 μs tON Enable Time AV = 1 480 µs VDGND DGND Pin Voltage Range l V– V+ – 3 V IDGND DGND Pin Current l –200 nA IEN EN Pin Current l –200 nA VENL EN Pin Input Low Voltage Relative to DGND l 0.8 V VENH EN Pin Input High Voltage Relative to DGND l 1.7 V 60231fa 4 For more information www.linear.com/LT6023 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Typical Application Related Parts
