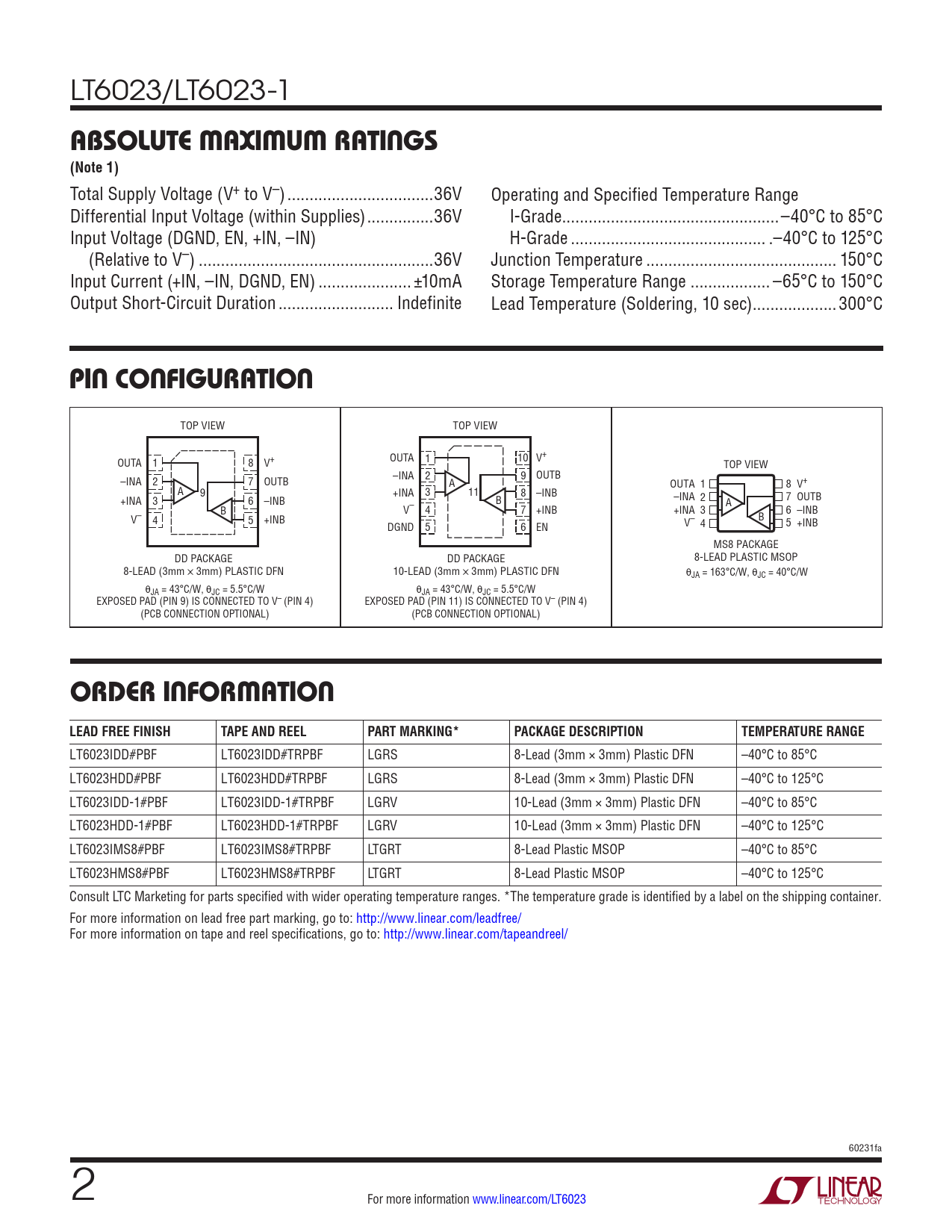

LT6023/LT6023-1
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ...36V Operating and Specified Temperature Range Differential Input Voltage (within Supplies) ...36V I-Grade...–40°C to 85°C Input Voltage (DGND, EN, +IN, –IN) H-Grade .. .–40°C to 125°C (Relative to V–) ...36V Junction Temperature ... 150°C Input Current (+IN, –IN, DGND, EN) ... ±10mA Storage Temperature Range .. –65°C to 150°C Output Short-Circuit Duration .. Indefinite Lead Temperature (Soldering, 10 sec) ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUTA 1 8 V+ OUTA 1 10 V+ TOP VIEW –INA 2 7 OUTB –INA 2 9 OUTB A OUTA 1 8 V+ A 9 +INA 3 11 8 –INB +INA 3 6 –INB B –INA 2 7 OUTB A B V– 4 7 +INB +INA 3 6 –INB V– 4 5 +INB B DGND 5 6 EN V– 4 5 +INB MS8 PACKAGE DD PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm × 3mm) PLASTIC DFN 10-LEAD (3mm × 3mm) PLASTIC DFN θJA = 163°C/W, θJC = 40°C/W θJA = 43°C/W, θJC = 5.5°C/W θJA = 43°C/W, θJC = 5.5°C/W EXPOSED PAD (PIN 9) IS CONNECTED TO V– (PIN 4) EXPOSED PAD (PIN 11) IS CONNECTED TO V– (PIN 4) (PCB CONNECTION OPTIONAL) (PCB CONNECTION OPTIONAL)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6023IDD#PBF LT6023IDD#TRPBF LGRS 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT6023HDD#PBF LT6023HDD#TRPBF LGRS 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT6023IDD-1#PBF LT6023IDD-1#TRPBF LGRV 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT6023HDD-1#PBF LT6023HDD-1#TRPBF LGRV 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT6023IMS8#PBF LT6023IMS8#TRPBF LTGRT 8-Lead Plastic MSOP –40°C to 85°C LT6023HMS8#PBF LT6023HMS8#TRPBF LTGRT 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 60231fa 2 For more information www.linear.com/LT6023 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Typical Application Related Parts
