Datasheet AD1580 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 1.2 V Micropower, Precision Shunt Voltage Reference |
| Páginas / Página | 12 / 4 — AD1580. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 370 Kb |
| Idioma del documento | Inglés |
AD1580. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 4

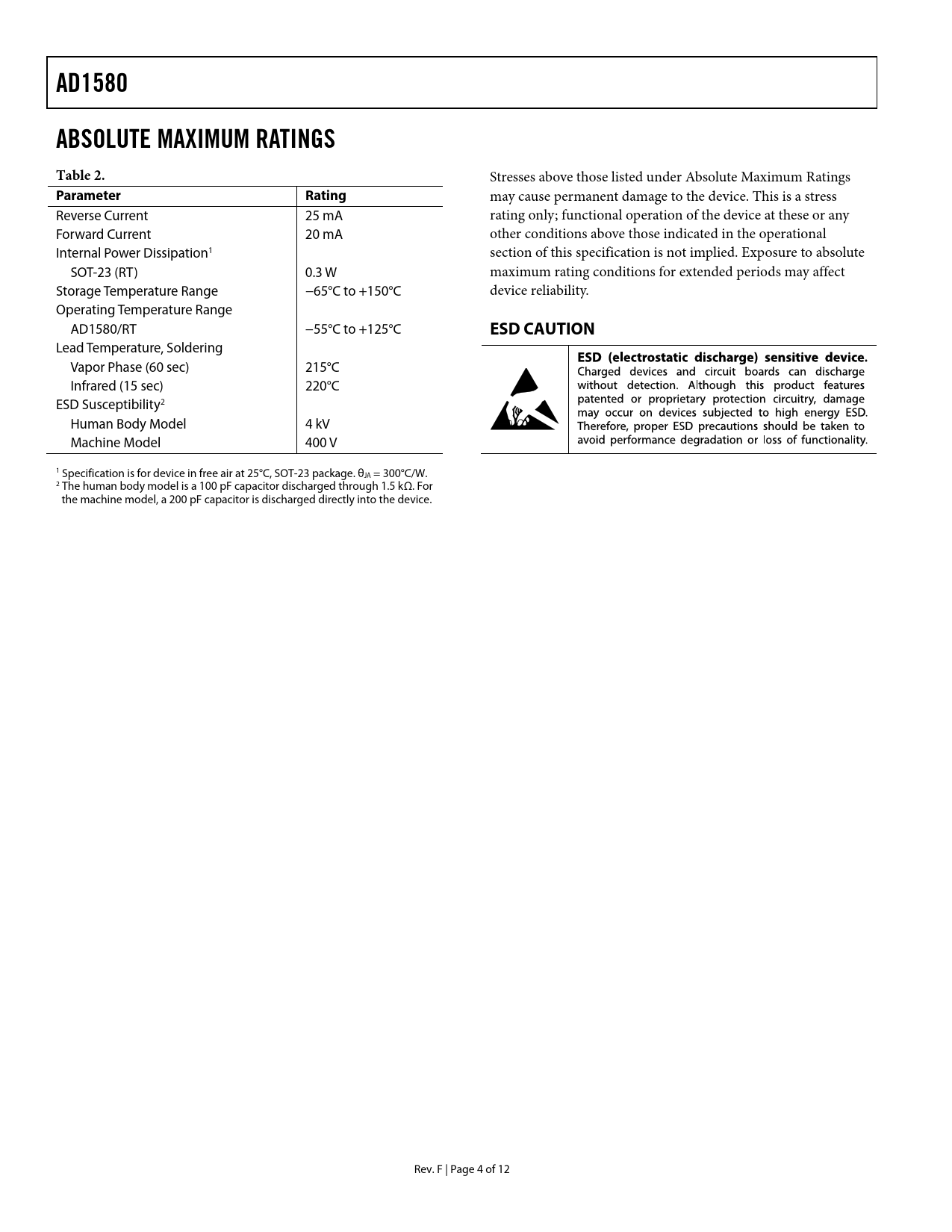

AD1580 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Reverse Current 25 mA rating only; functional operation of the device at these or any Forward Current 20 mA other conditions above those indicated in the operational Internal Power Dissipation1 section of this specification is not implied. Exposure to absolute SOT-23 (RT) 0.3 W maximum rating conditions for extended periods may affect Storage Temperature Range −65°C to +150°C device reliability. Operating Temperature Range AD1580/RT −55°C to +125°C
ESD CAUTION
Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C ESD Susceptibility2 Human Body Model 4 kV Machine Model 400 V 1 Specification is for device in free air at 25°C, SOT-23 package. θ JA = 300°C/W. 2 The human body model is a 100 pF capacitor discharged through 1.5 kΩ. For the machine model, a 200 pF capacitor is discharged directly into the device. Rev. F | Page 4 of 12 Document Outline Features Applications General Description Pin Configurations Revision History Specifications Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Theory of Operation Applying the AD1580 Temperature Performance Voltage Output Nonlinearity vs. Temperature Reverse Voltage Hysteresis Output Impedance vs. Frequency Noise Performance and Reduction Turn-On Time Transient Response Precision Micropower Low Dropout Reference Using the AD1580 with 3 V Data Converters Outline Dimensions Ordering Guide Package Branding Information
