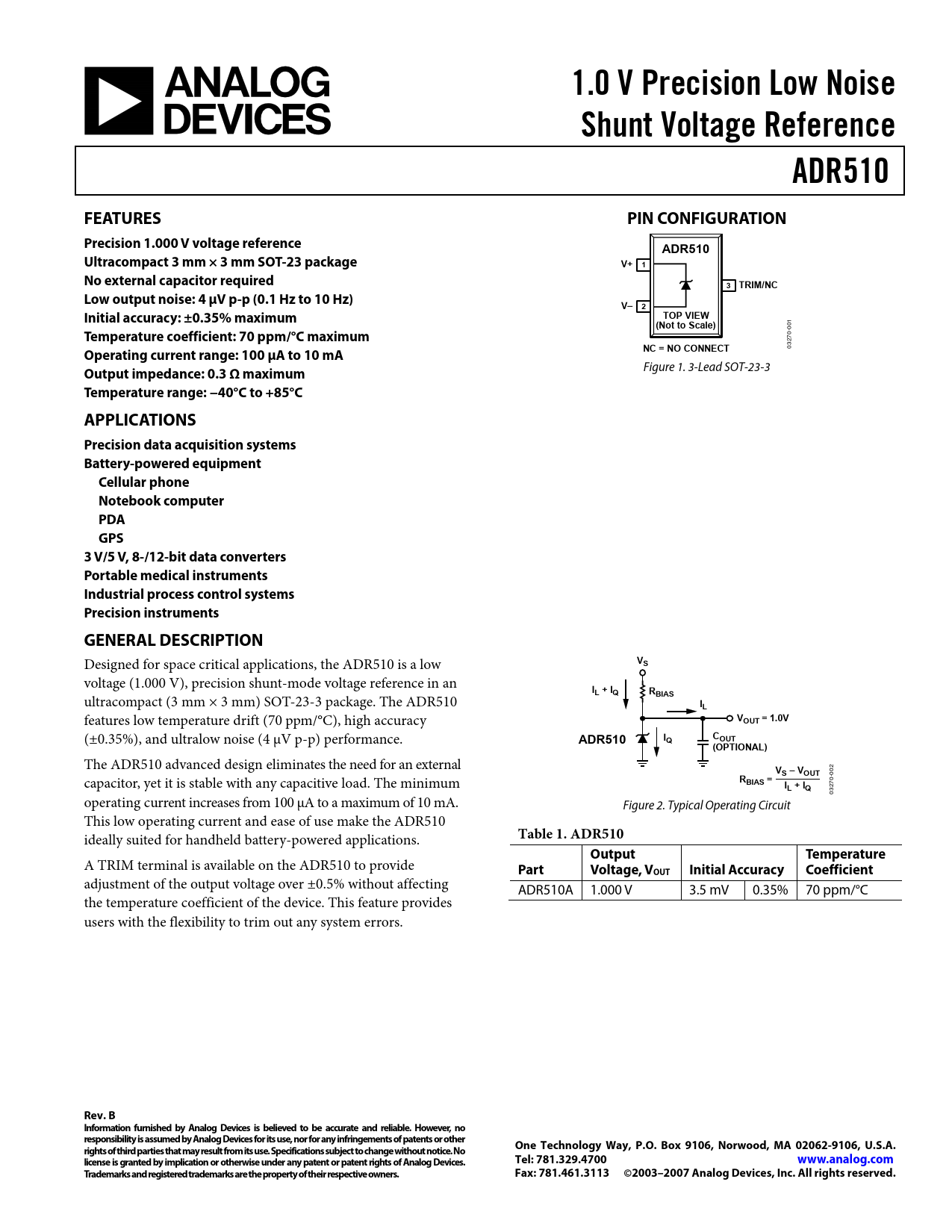

1.0 V Precision Low Noise Shunt Voltage Reference ADR510 FEATURES PIN CONFIGURATION Precision 1.000 V voltage reference ADR510 Ultracompact 3 mm × 3 mm SOT-23 package V+ 1 No external capacitor required 3 TRIM/NC Low output noise: 4 μV p-p (0.1 Hz to 10 Hz) V– 2 Initial accuracy: ±0.35% maximum TOP VIEW (Not to Scale)
-001
Temperature coefficient: 70 ppm/°C maximum
270
NC = NO CONNECT
03
Operating current range: 100 μA to 10 mA
Figure 1. 3-Lead SOT-23-3
Output impedance: 0.3 Ω maximum Temperature range: −40°C to +85°C APPLICATIONS Precision data acquisition systems Battery-powered equipment Cellular phone Notebook computer PDA GPS 3 V/5 V, 8-/12-bit data converters Portable medical instruments Industrial process control systems Precision instruments GENERAL DESCRIPTION
Designed for space critical applications, the ADR510 is a low
VS
voltage (1.000 V), precision shunt-mode voltage reference in an
IL + IQ RBIAS
ultracompact (3 mm × 3 mm) SOT-23-3 package. The ADR510
IL
features low temperature drift (70 ppm/°C), high accuracy
VOUT = 1.0V
(±0.35%), and ultralow noise (4 μV p-p) performance.
I ADR510 Q COUT (OPTIONAL)
The ADR510 advanced design eliminates the need for an external
VS – VOUT
-002 capacitor, yet it is stable with any capacitive load. The minimum
RBIAS = I
70
L + IQ
32 0 operating current increases from 100 μA to a maximum of 10 mA. Figure 2. Typical Operating Circuit This low operating current and ease of use make the ADR510 ideally suited for handheld battery-powered applications.
Table 1. ADR510 Output Temperature
A TRIM terminal is available on the ADR510 to provide
Part Voltage, VOUT Initial Accuracy Coefficient
adjustment of the output voltage over ±0.5% without affecting ADR510A 1.000 V 3.5 mV 0.35% 70 ppm/°C the temperature coefficient of the device. This feature provides users with the flexibility to trim out any system errors.
