Datasheet ADR512W (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 1.2 V Precision Low Noise Shunt Voltage Reference |
| Páginas / Página | 12 / 4 — ADR512W. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. … |
| Formato / tamaño de archivo | PDF / 316 Kb |
| Idioma del documento | Inglés |

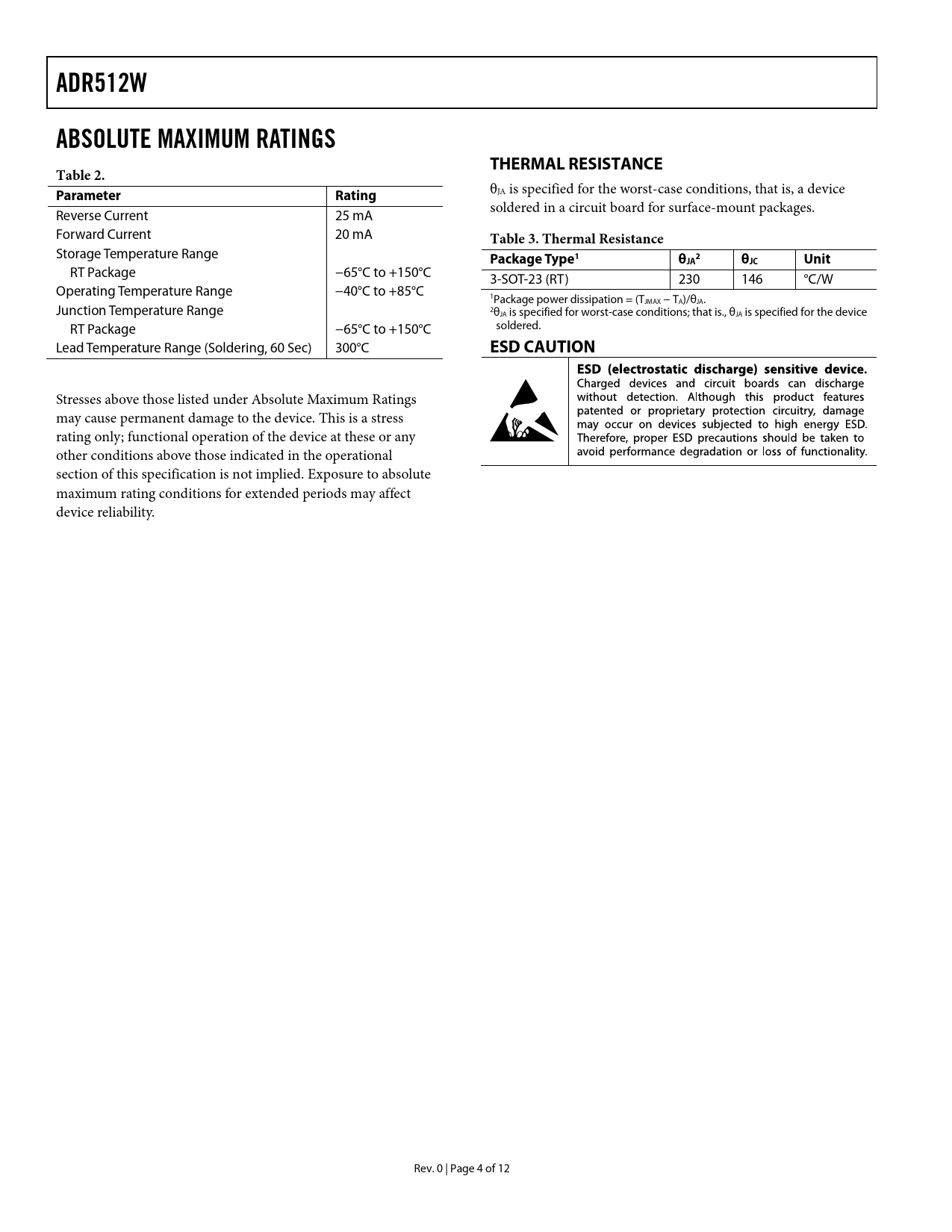

ADR512W. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Thermal Resistance. Package Type1. θ 2. θJC
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 4
ADR512W ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Reverse Current 25 mA soldered in a circuit board for surface-mount packages. Forward Current 20 mA
Table 3. Thermal Resistance
Storage Temperature Range
Package Type1 θ 2 JA θJC Unit
RT Package −65°C to +150°C 3-SOT-23 (RT) 230 146 °C/W Operating Temperature Range −40°C to +85°C 1Package power dissipation = (TJMAX − TA)/θJA. Junction Temperature Range 2θJA is specified for worst-case conditions; that is., θJA is specified for the device RT Package −65°C to +150°C soldered. Lead Temperature Range (Soldering, 60 Sec) 300°C
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 4 of 12 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Terminology Applications Information Adjustable Precision Voltage Source Output Voltage Trim Using the ADR512W with Precision Data Converters Precise Negative Voltage Reference Outline Dimensions Ordering Guide Automotive Products
