Datasheet ADR512 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 1.2 V Precision Low Noise Shunt Voltage Reference |
| Páginas / Página | 12 / 6 — ADR512. Data Sheet. ΔIIN = 100µA. 2µV/DIV. VOUT = 20mV/DIV. TIME … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 282 Kb |
| Idioma del documento | Inglés |
ADR512. Data Sheet. ΔIIN = 100µA. 2µV/DIV. VOUT = 20mV/DIV. TIME (2µs/DIV). TIME (400ms/DIV)
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADR512 Data Sheet ΔIIN = 100µA 2µV/DIV VOUT = 20mV/DIV
009 010
TIME (2µs/DIV)
03700-
TIME (400ms/DIV)

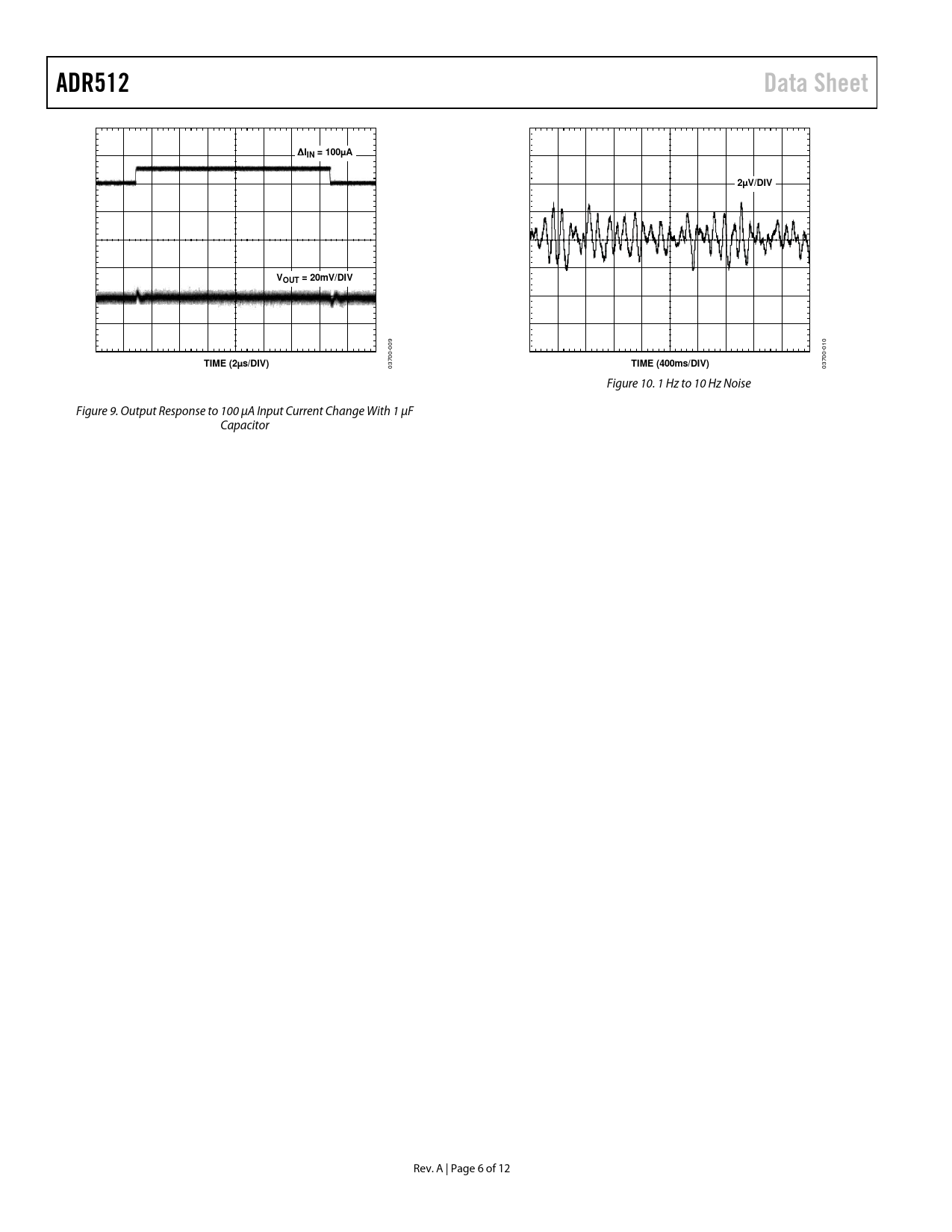

03700- Figure 10. 1 Hz to 10 Hz Noise Figure 9. Output Response to 100 μA Input Current Change With 1 μF Capacitor Rev. A | Page 6 of 12 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Parameter Definitions Temperature Coefficient Thermal Hysteresis Applications Section Adjustable Precision Voltage Source Output Voltage Trim Using the ADR512 with Precision Data Converters Precise Negative Voltage Reference Outline Dimensions Ordering Guide
