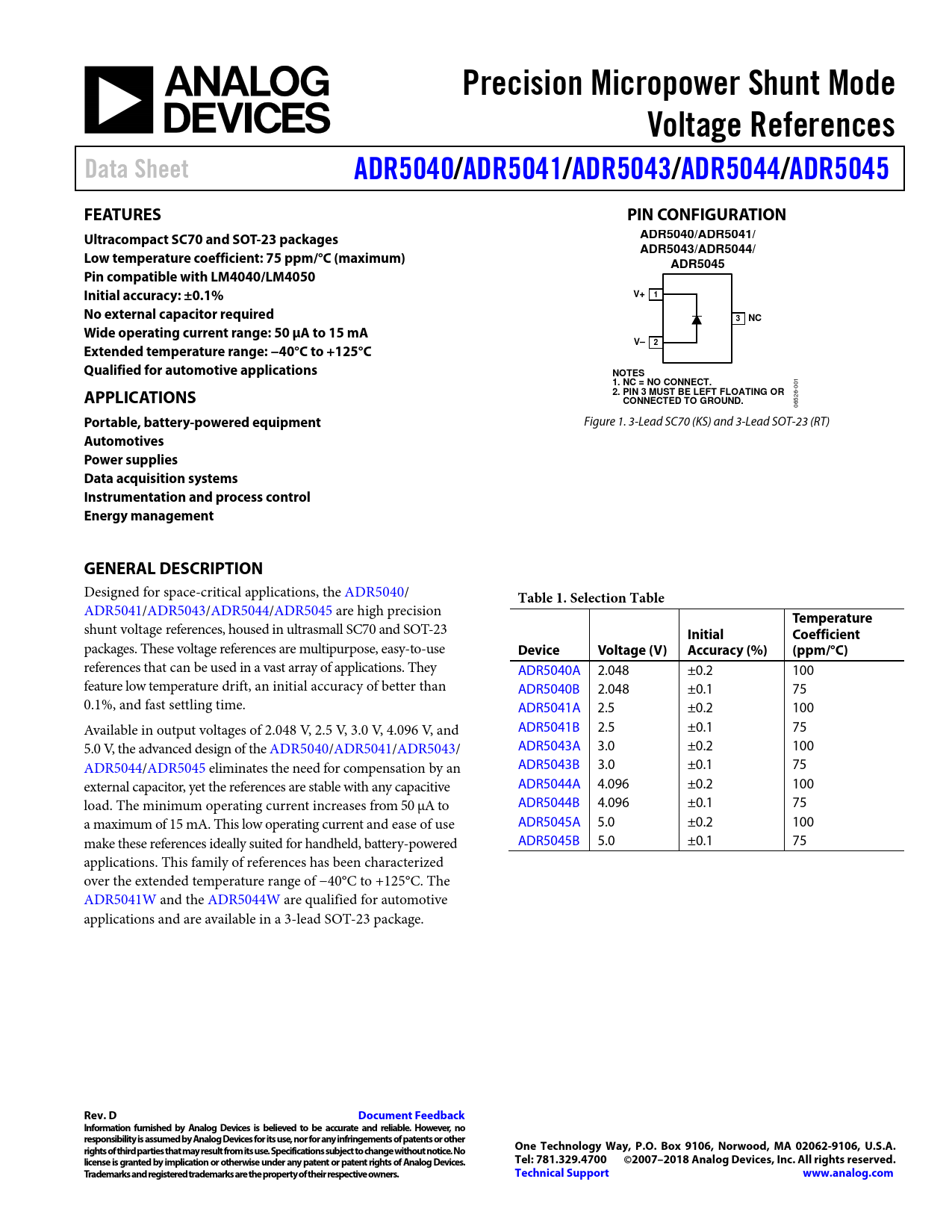

Precision Micropower Shunt Mode Voltage References Data Sheet ADR5040/ ADR5041 /ADR5043 /ADR5044/ ADR5045 FEATURES PIN CONFIGURATION Ultracompact SC70 and SOT-23 packages ADR5040/ADR5041/ ADR5043/ADR5044/ Low temperature coefficient: 75 ppm/°C (maximum) ADR5045 Pin compatible with LM4040/LM4050 Initial accuracy: ±0.1% V+ 1 No external capacitor required 3 NC Wide operating current range: 50 µA to 15 mA V– 2 Extended temperature range: −40°C to +125°C Qualified for automotive applications NOTES 1. NC = NO CONNECT.
001
APPLICATIONS 2. PIN 3 MUST BE LEFT FLOATING OR CONNECTED TO GROUND.
06526-
Portable, battery-powered equipment
Figure 1. 3-Lead SC70 (KS) and 3-Lead SOT-23 (RT)
Automotives Power supplies Data acquisition systems Instrumentation and process control Energy management GENERAL DESCRIPTION
Designed for space-critical applications, the ADR5040/
Table 1. Selection Table
ADR5041/ADR5043/ADR5044/ADR5045 are high precision
Temperature
shunt voltage references, housed in ultrasmal SC70 and SOT-23
Initial Coefficient
packages. These voltage references are multipurpose, easy-to-use
Device Voltage (V) Accuracy (%) (ppm/°C)
references that can be used in a vast array of applications. They ADR5040A 2.048 ±0.2 100 feature low temperature drift, an initial accuracy of better than ADR5040B 2.048 ±0.1 75 0.1%, and fast settling time. ADR5041A 2.5 ±0.2 100 Available in output voltages of 2.048 V, 2.5 V, 3.0 V, 4.096 V, and ADR5041B 2.5 ±0.1 75 5.0 V, the advanced design of the ADR5040/ADR5041/ADR5043/ ADR5043A 3.0 ±0.2 100 ADR5044/ADR5045 eliminates the need for compensation by an ADR5043B 3.0 ±0.1 75 external capacitor, yet the references are stable with any capacitive ADR5044A 4.096 ±0.2 100 load. The minimum operating current increases from 50 µA to ADR5044B 4.096 ±0.1 75 a maximum of 15 mA. This low operating current and ease of use ADR5045A 5.0 ±0.2 100 make these references ideal y suited for handheld, battery-powered ADR5045B 5.0 ±0.1 75 applications. This family of references has been characterized over the extended temperature range of −40°C to +125°C. The ADR5041W and the ADR5044W are qualified for automotive applications and are available in a 3-lead SOT-23 package.
