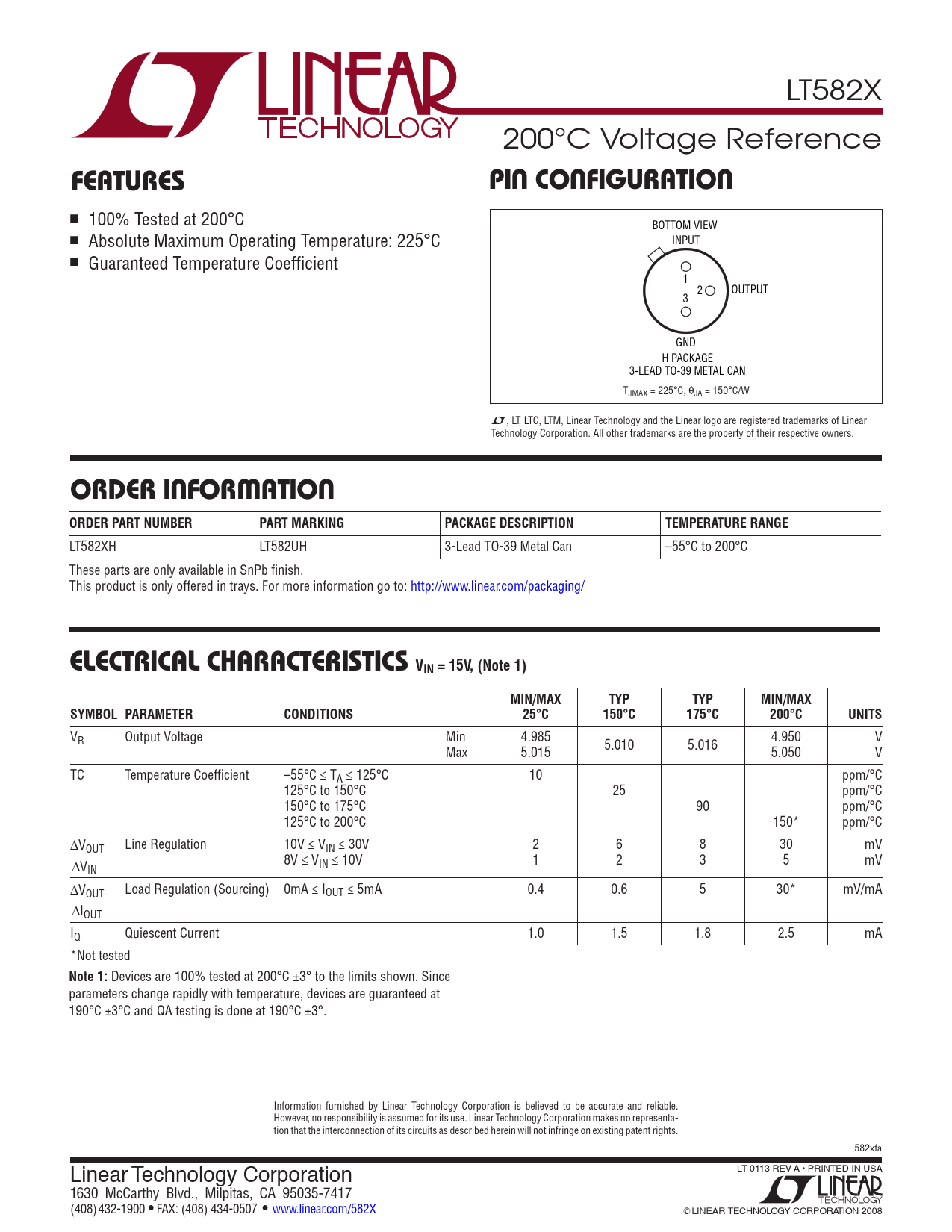

LT582X 200°C Voltage Reference
FEATURES Pin conFigURATion
n 100% Tested at 200°C BOTTOM VIEW n Absolute Maximum Operating Temperature: 225°C INPUT n Guaranteed Temperature Coefficient 1 2 OUTPUT 3 GND H PACKAGE 3-LEAD TO-39 METAL CAN TJMAX = 225°C, θJA = 150°C/W L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
oRdER inFoRmATion ORDER PART NUMBER PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT582XH LT582UH 3-Lead TO-39 Metal Can –55°C to 200°C These parts are only available in SnPb finish. This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
ElEcTRicAl chARAcTERiSTicS VIN = 15V, (Note 1) MIN/MAX TYP TYP MIN/MAX SYMBOL PARAMETER CONDITIONS 25°C 150°C 175°C 200°C UNITS
VR Output Voltage Min 4.985 V Max 5.015 5.010 5.016 4.950 5.050 V TC Temperature Coefficient –55°C ≤ TA ≤ 125°C 10 ppm/°C 125°C to 150°C 25 ppm/°C 150°C to 175°C 90 ppm/°C 125°C to 200°C 150* ppm/°C ∆VOUT Line Regulation 10V ≤ VIN ≤ 30V 2 6 8 30 mV ∆V 8V ≤ V 1 2 3 5 mV IN IN ≤ 10V ∆VOUT Load Regulation (Sourcing) 0mA ≤ IOUT ≤ 5mA 0.4 0.6 5 30* mV/mA ∆IOUT IQ Quiescent Current 1.0 1.5 1.8 2.5 mA *Not tested
Note 1:
Devices are 100% tested at 200°C ±3° to the limits shown. Since parameters change rapidly with temperature, devices are guaranteed at 190°C ±3°C and QA testing is done at 190°C ±3°. Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. 582xfa Linear Technology Corporation LT 0113 REV A • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com/582X LINEAR TECHNOLOGY CORPORATION 2008 Document Outline Features Pin Configuration Order Information Electrical Characteristics
