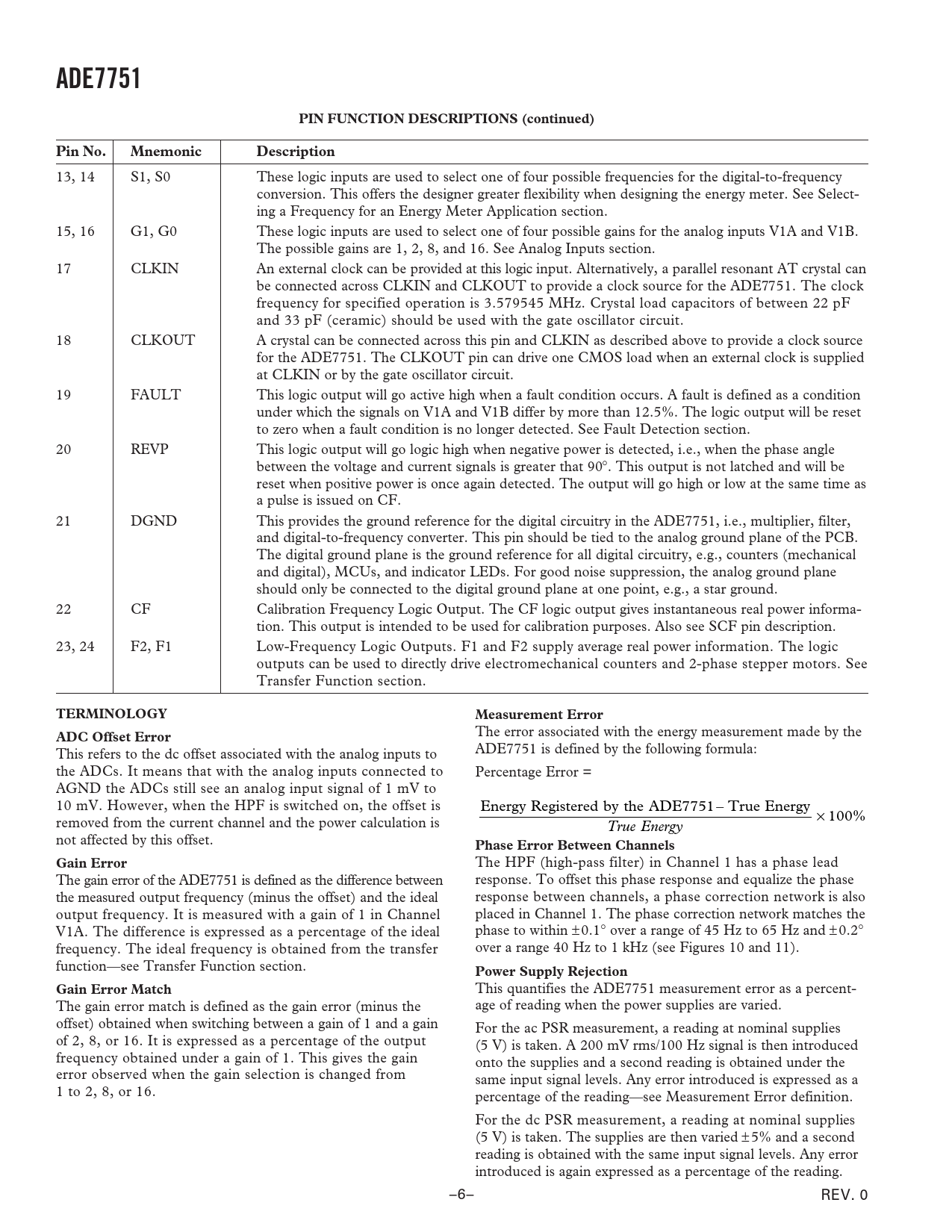

Datasheet ADE7751 (Analog Devices) - 6

ADE7751 PIN FUNCTION DESCRIPTIONS (continued) Pin No. Mnemonic Description
13, 14 S1, S0 These logic inputs are used to select one of four possible frequencies for the digital-to-frequency conversion. This offers the designer greater flexibility when designing the energy meter. See Select- ing a Frequency for an Energy Meter Application section. 15, 16 G1, G0 These logic inputs are used to select one of four possible gains for the analog inputs V1A and V1B. The possible gains are 1, 2, 8, and 16. See Analog Inputs section. 17 CLKIN An external clock can be provided at this logic input. Alternatively, a parallel resonant AT crystal can be connected across CLKIN and CLKOUT to provide a clock source for the ADE7751. The clock frequency for specified operation is 3.579545 MHz. Crystal load capacitors of between 22 pF and 33 pF (ceramic) should be used with the gate oscillator circuit. 18 CLKOUT A crystal can be connected across this pin and CLKIN as described above to provide a clock source for the ADE7751. The CLKOUT pin can drive one CMOS load when an external clock is supplied at CLKIN or by the gate oscillator circuit. 19 FAULT This logic output will go active high when a fault condition occurs. A fault is defined as a condition under which the signals on V1A and V1B differ by more than 12.5%. The logic output will be reset to zero when a fault condition is no longer detected. See Fault Detection section. 20 REVP This logic output will go logic high when negative power is detected, i.e., when the phase angle between the voltage and current signals is greater that 90°. This output is not latched and will be reset when positive power is once again detected. The output will go high or low at the same time as a pulse is issued on CF. 21 DGND This provides the ground reference for the digital circuitry in the ADE7751, i.e., multiplier, filter, and digital-to-frequency converter. This pin should be tied to the analog ground plane of the PCB. The digital ground plane is the ground reference for all digital circuitry, e.g., counters (mechanical and digital), MCUs, and indicator LEDs. For good noise suppression, the analog ground plane should only be connected to the digital ground plane at one point, e.g., a star ground. 22 CF Calibration Frequency Logic Output. The CF logic output gives instantaneous real power informa- tion. This output is intended to be used for calibration purposes. Also see SCF pin description. 23, 24 F2, F1 Low-Frequency Logic Outputs. F1 and F2 supply average real power information. The logic outputs can be used to directly drive electromechanical counters and 2-phase stepper motors. See Transfer Function section.
TERMINOLOGY Measurement Error ADC Offset Error
The error associated with the energy measurement made by the This refers to the dc offset associated with the analog inputs to ADE7751 is defined by the following formula: the ADCs. It means that with the analog inputs connected to Percentage Error = AGND the ADCs still see an analog input signal of 1 mV to 10 mV. However, when the HPF is switched on, the offset is Energy Registered by the ADE7751 – True Energy × removed from the current channel and the power calculation is 100% True Energy not affected by this offset.
Phase Error Between Channels Gain Error
The HPF (high-pass filter) in Channel 1 has a phase lead The gain error of the ADE7751 is defined as the difference between response. To offset this phase response and equalize the phase the measured output frequency (minus the offset) and the ideal response between channels, a phase correction network is also output frequency. It is measured with a gain of 1 in Channel placed in Channel 1. The phase correction network matches the V1A. The difference is expressed as a percentage of the ideal phase to within ± 0.1° over a range of 45 Hz to 65 Hz and ± 0.2° frequency. The ideal frequency is obtained from the transfer over a range 40 Hz to 1 kHz (see Figures 10 and 11). function—see Transfer Function section.
Power Supply Rejection Gain Error Match
This quantifies the ADE7751 measurement error as a percent- The gain error match is defined as the gain error (minus the age of reading when the power supplies are varied. offset) obtained when switching between a gain of 1 and a gain For the ac PSR measurement, a reading at nominal supplies of 2, 8, or 16. It is expressed as a percentage of the output (5 V) is taken. A 200 mV rms/100 Hz signal is then introduced frequency obtained under a gain of 1. This gives the gain onto the supplies and a second reading is obtained under the error observed when the gain selection is changed from same input signal levels. Any error introduced is expressed as a 1 to 2, 8, or 16. percentage of the reading—see Measurement Error definition. For the dc PSR measurement, a reading at nominal supplies (5 V) is taken. The supplies are then varied ± 5% and a second reading is obtained with the same input signal levels. Any error introduced is again expressed as a percentage of the reading. –6– REV. 0
