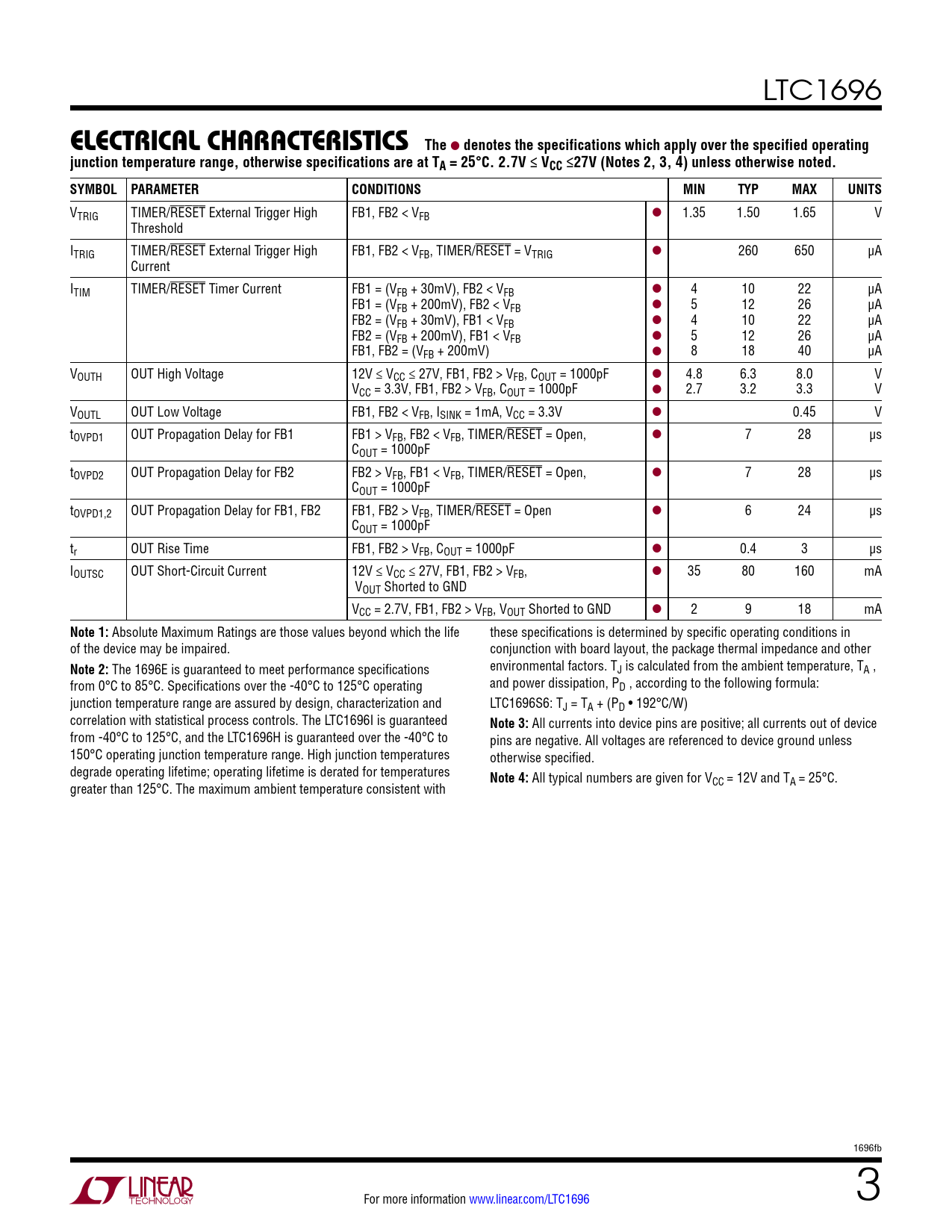

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the specified operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC1696
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. 2.7V ≤ VCC ≤27V (Notes 2, 3, 4) unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTRIG TIMER/RESET External Trigger High FB1, FB2 < VFB ● 1.35 1.50 1.65 V Threshold ITRIG TIMER/RESET External Trigger High FB1, FB2 < VFB, TIMER/RESET = VTRIG ● 260 650 µA Current ITIM TIMER/RESET Timer Current FB1 = (VFB + 30mV), FB2 < VFB ● 4 10 22 µA FB1 = (VFB + 200mV), FB2 < VFB ● 5 12 26 µA FB2 = (VFB + 30mV), FB1 < VFB ● 4 10 22 µA FB2 = (VFB + 200mV), FB1 < VFB ● 5 12 26 µA FB1, FB2 = (VFB + 200mV) ● 8 18 40 µA VOUTH OUT High Voltage 12V ≤ VCC ≤ 27V, FB1, FB2 > VFB, COUT = 1000pF ● 4.8 6.3 8.0 V VCC = 3.3V, FB1, FB2 > VFB, COUT = 1000pF ● 2.7 3.2 3.3 V VOUTL OUT Low Voltage FB1, FB2 < VFB, ISINK = 1mA, VCC = 3.3V ● 0.45 V tOVPD1 OUT Propagation Delay for FB1 FB1 > VFB, FB2 < VFB, TIMER/RESET = Open, ● 7 28 µs COUT = 1000pF tOVPD2 OUT Propagation Delay for FB2 FB2 > VFB, FB1 < VFB, TIMER/RESET = Open, ● 7 28 µs COUT = 1000pF tOVPD1,2 OUT Propagation Delay for FB1, FB2 FB1, FB2 > VFB, TIMER/RESET = Open ● 6 24 µs COUT = 1000pF tr OUT Rise Time FB1, FB2 > VFB, COUT = 1000pF ● 0.4 3 µs IOUTSC OUT Short-Circuit Current 12V ≤ VCC ≤ 27V, FB1, FB2 > VFB, ● 35 80 160 mA VOUT Shorted to GND VCC = 2.7V, FB1, FB2 > VFB, VOUT Shorted to GND ● 2 9 18 mA
Note 1:
Absolute Maximum Ratings are those values beyond which the life these specifications is determined by specific operating conditions in of the device may be impaired. conjunction with board layout, the package thermal impedance and other
Note 2:
The 1696E is guaranteed to meet performance specifications environmental factors. TJ is calculated from the ambient temperature, TA , from 0°C to 85°C. Specifications over the -40°C to 125°C operating and power dissipation, PD , according to the following formula: junction temperature range are assured by design, characterization and LTC1696S6: TJ = TA + (PD • 192°C/W) correlation with statistical process controls. The LTC1696I is guaranteed
Note 3:
All currents into device pins are positive; all currents out of device from -40°C to 125°C, and the LTC1696H is guaranteed over the -40°C to pins are negative. All voltages are referenced to device ground unless 150°C operating junction temperature range. High junction temperatures otherwise specified. degrade operating lifetime; operating lifetime is derated for temperatures
Note 4:
All typical numbers are given for V greater than 125°C. The maximum ambient temperature consistent with CC = 12V and TA = 25°C. 1696fb For more information www.linear.com/LTC1696 3
