Datasheet LTC4366 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | High Voltage Surge Stopper |
| Páginas / Página | 24 / 7 — TYPICAL PERFORMANCE CHARACTERISTICS. Gate Start-Up Current vs. Base Shunt … |
| Formato / tamaño de archivo | PDF / 298 Kb |
| Idioma del documento | Inglés |
TYPICAL PERFORMANCE CHARACTERISTICS. Gate Start-Up Current vs. Base Shunt Regulator vs. Timer Pull-Up Current vs. Temperature
Línea de modelo para esta hoja de datos
- LTC4366CDDB-1#PBF LTC4366CDDB-1#TRMPBF LTC4366CDDB-1#TRPBF LTC4366CDDB-2#PBF LTC4366CDDB-2#TRMPBF LTC4366CDDB-2#TRPBF LTC4366CTS8-1#PBF LTC4366CTS8-1#TRMPBF LTC4366CTS8-1#TRPBF LTC4366CTS8-2#PBF LTC4366CTS8-2#TRMPBF LTC4366CTS8-2#TRPBF LTC4366HDDB-1#PBF LTC4366HDDB-1#TRMPBF LTC4366HDDB-1#TRPBF LTC4366HDDB-2#PBF LTC4366HDDB-2#TRMPBF LTC4366HDDB-2#TRPBF LTC4366HTS8-1#PBF LTC4366HTS8-1#TRMPBF LTC4366HTS8-1#TRPBF LTC4366HTS8-2#PBF LTC4366HTS8-2#TRMPBF LTC4366HTS8-2#TRPBF LTC4366IDDB-1#PBF LTC4366IDDB-1#TRMPBF LTC4366IDDB-1#TRPBF LTC4366IDDB-2#PBF LTC4366IDDB-2#TRMPBF LTC4366IDDB-2#TRPBF LTC4366ITS8-1#PBF LTC4366ITS8-1#TRMPBF LTC4366ITS8-1#TRPBF LTC4366ITS8-2#PBF LTC4366ITS8-2#TRMPBF LTC4366ITS8-2#TRPBF LTC4366MPDDB-1#PBF LTC4366MPDDB-1#TRMPBF LTC4366MPDDB-1#TRPBF LTC4366MPDDB-2#PBF LTC4366MPDDB-2#TRMPBF LTC4366MPDDB-2#TRPBF LTC4366MPTS8-1#PBF LTC4366MPTS8-1#TRMPBF LTC4366MPTS8-1#TRPBF LTC4366MPTS8-2#PBF LTC4366MPTS8-2#TRM LTC4366MPTS8-2#TRMPBF LTC4366MPTS8-2#TRPBF
Versión de texto del documento
LTC4366

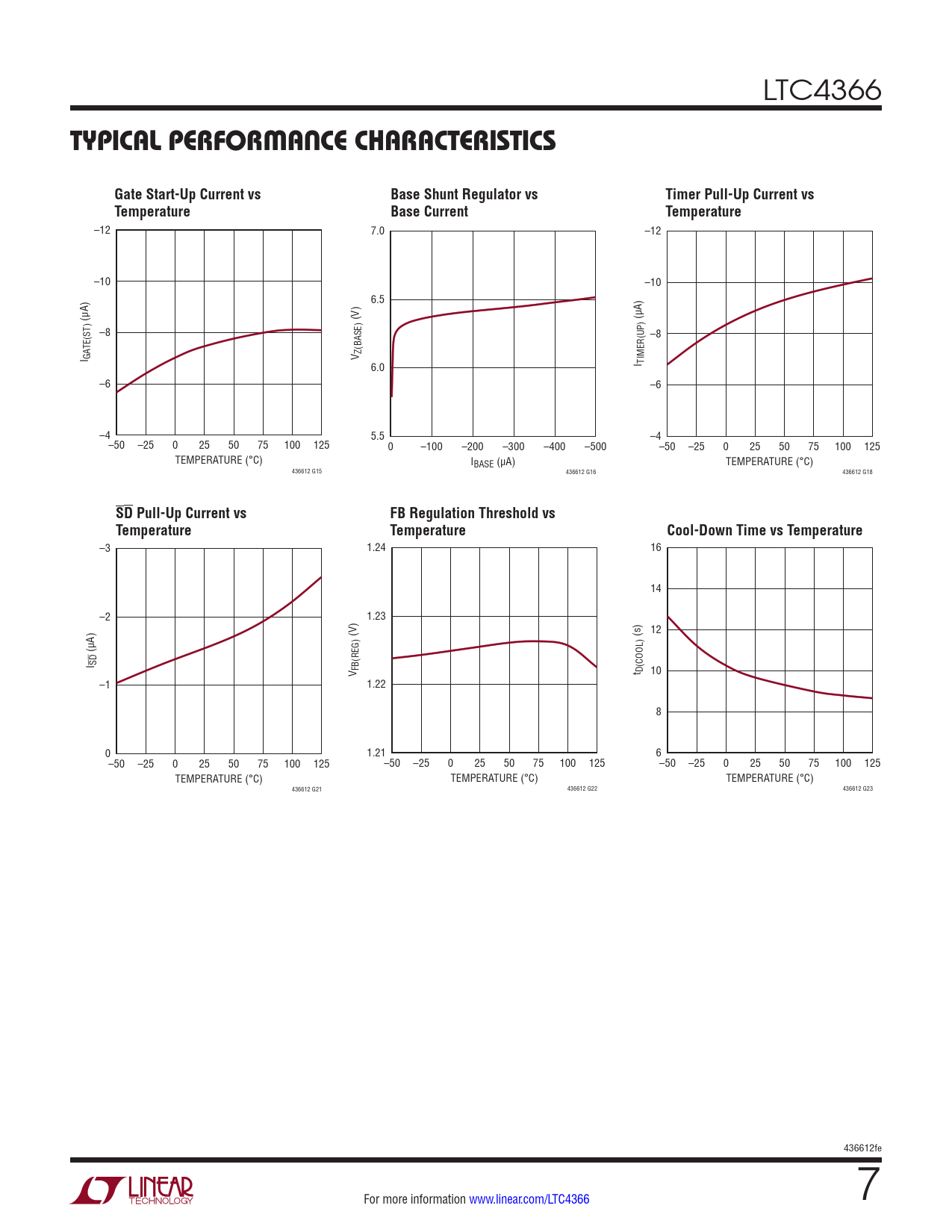

TYPICAL PERFORMANCE CHARACTERISTICS Gate Start-Up Current vs Base Shunt Regulator vs Timer Pull-Up Current vs Temperature Base Current Temperature
–12 7.0 –12 –10 –10 6.5 (µA) (V) (µA) –8 –8 TE(ST) I GA V Z(BASE) I TIMER(UP) 6.0 –6 –6 –4 5.5 –4 –50 –25 0 25 50 75 100 125 0 –100 –200 –300 –400 –500 –50 –25 0 25 50 75 100 125 TEMPERATURE (°C) IBASE (µA) TEMPERATURE (°C) 436612 G15 436612 G16 436612 G18
SD Pull-Up Current vs FB Regulation Threshold vs Temperature Temperature Cool-Down Time vs Temperature
–3 1.24 16 14 –2 1.23 (V) (s) 12 (µA) I SD V FB(REG) t D(COOL) 10 –1 1.22 8 0 1.21 6 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 436612 G21 436612 G22 436612 G23 436612fe 7 For more information www.linear.com/LTC4366 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Pin Functions Simplified Diagram Functional Diagram Operation Applications Information Package Description Typical Application Related Parts
