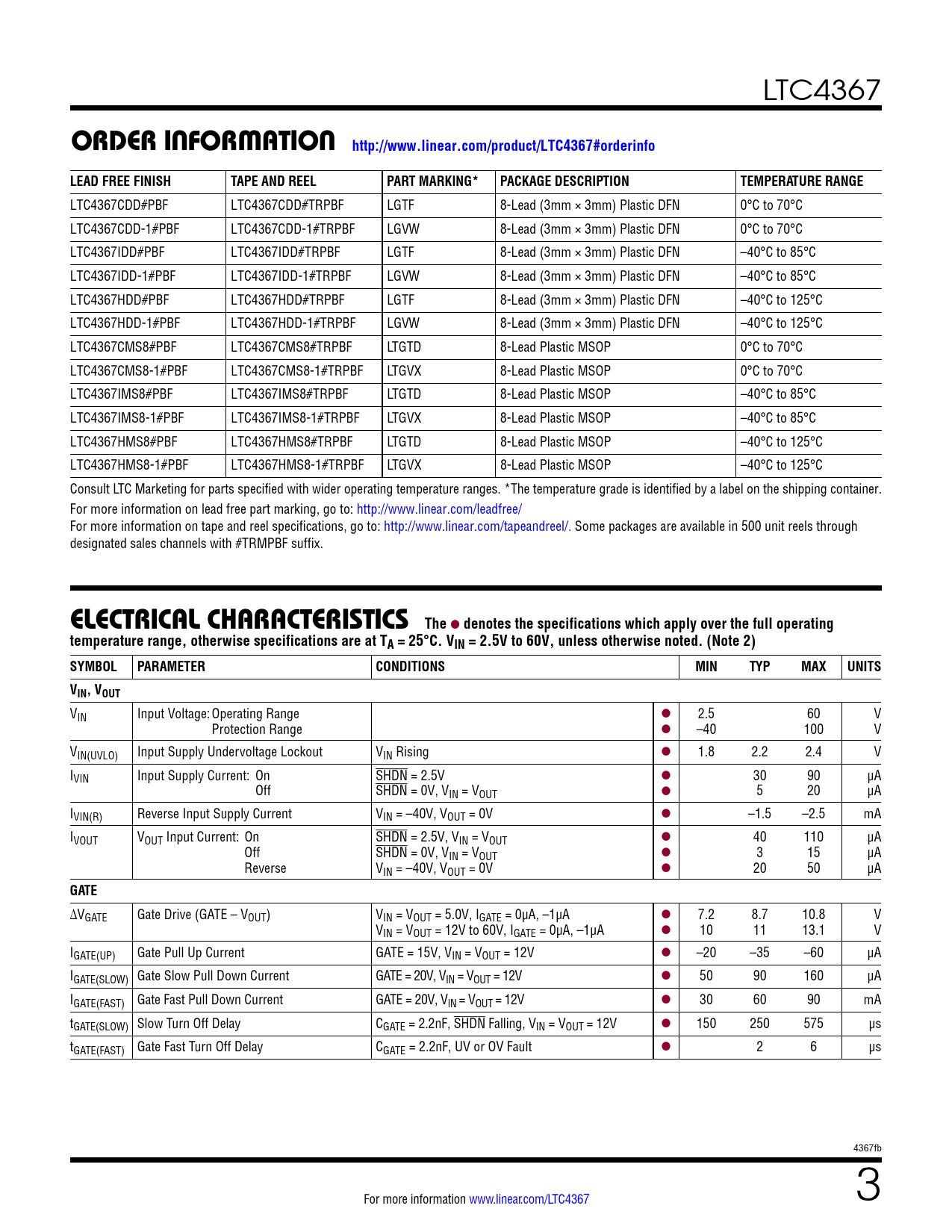

Datasheet LTC4367 (Analog Devices) - 3

LTC4367
ORDER INFORMATION http://www.linear.com/product/LTC4367#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4367CDD#PBF LTC4367CDD#TRPBF LGTF 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4367CDD-1#PBF LTC4367CDD-1#TRPBF LGVW 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4367IDD#PBF LTC4367IDD#TRPBF LGTF 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4367IDD-1#PBF LTC4367IDD-1#TRPBF LGVW 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4367HDD#PBF LTC4367HDD#TRPBF LGTF 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4367HDD-1#PBF LTC4367HDD-1#TRPBF LGVW 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4367CMS8#PBF LTC4367CMS8#TRPBF LTGTD 8-Lead Plastic MSOP 0°C to 70°C LTC4367CMS8-1#PBF LTC4367CMS8-1#TRPBF LTGVX 8-Lead Plastic MSOP 0°C to 70°C LTC4367IMS8#PBF LTC4367IMS8#TRPBF LTGTD 8-Lead Plastic MSOP –40°C to 85°C LTC4367IMS8-1#PBF LTC4367IMS8-1#TRPBF LTGVX 8-Lead Plastic MSOP –40°C to 85°C LTC4367HMS8#PBF LTC4367HMS8#TRPBF LTGTD 8-Lead Plastic MSOP –40°C to 125°C LTC4367HMS8-1#PBF LTC4367HMS8-1#TRPBF LTGVX 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 2.5V to 60V, unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS VIN, VOUT
VIN Input Voltage: Operating Range l 2.5 60 V Protection Range l –40 100 V VIN(UVLO) Input Supply Undervoltage Lockout VIN Rising l 1.8 2.2 2.4 V IVIN Input Supply Current: On SHDN = 2.5V l 30 90 µA Off SHDN = 0V, VIN = VOUT l 5 20 µA IVIN(R) Reverse Input Supply Current VIN = –40V, VOUT = 0V l –1.5 –2.5 mA IVOUT VOUT Input Current: On SHDN = 2.5V, VIN = VOUT l 40 110 µA Off SHDN = 0V, VIN = VOUT l 3 15 µA Reverse VIN = –40V, VOUT = 0V l 20 50 µA
GATE
ΔVGATE Gate Drive (GATE – VOUT) VIN = VOUT = 5.0V, IGATE = 0µA, –1µA l 7.2 8.7 10.8 V VIN = VOUT = 12V to 60V, IGATE = 0µA, –1µA l 10 11 13.1 V IGATE(UP) Gate Pull Up Current GATE = 15V, VIN = VOUT = 12V l –20 –35 –60 µA IGATE(SLOW) Gate Slow Pull Down Current GATE = 20V, VIN = VOUT = 12V l 50 90 160 µA IGATE(FAST) Gate Fast Pull Down Current GATE = 20V, VIN = VOUT = 12V l 30 60 90 mA tGATE(SLOW) Slow Turn Off Delay CGATE = 2.2nF, SHDN Falling, VIN = VOUT = 12V l 150 250 575 µs tGATE(FAST) Gate Fast Turn Off Delay CGATE = 2.2nF, UV or OV Fault l 2 6 µs 4367fb For more information www.linear.com/LTC4367 3
