FeaTures. DescripTion. Complete Step-Down Switch Mode Power Supply. Wide Input Voltage Range: 3.6V to 36V. 2A Output Current
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM8032 EN55022B Compliant 36V, 2A DC/DC µModule Regulator
FeaTures DescripTion
n
Complete Step-Down Switch Mode Power Supply
The LTM®8032 is an electromagnetic compatible (EMC) n
Wide Input Voltage Range: 3.6V to 36V
36V, 2A DC/DC step-down µModule® regulator designed n
2A Output Current
to meet the radiated emissions requirements of EN55022. n
0.8V to 10V Output Voltage
Conducted emission requirements can be met by adding n
Selectable Switching Frequency: 200kHz to 2.4MHz
standard filter components. Included in the package are the n
EN55022 Class B Compliant
switching controller, power switches, inductor, filters and n Current Mode Control all support components. Operating over an input voltage n Programmable Soft-Start range of 3.6V to 36V, the LTM8032 supports an output n SnPb (BGA) or RoHS Compliant (LGA and BGA) voltage range of 0.8V to 10V, and a switching frequency Finish range of 200kHz to 2.4MHz, each set by a single resistor. n Low Profile, Surface Mount LGA (9mm × 15mm Only the bulk input and output filter capacitors are needed × 2.82mm) and BGA (9mm × 15mm × 3.42mm) to finish the design. The low profile package enables uti- Packages lization of unused space on the bottom of PC boards for high density point of load regulation.
applicaTions
The LTM8032 is packaged in a thermally enhanced, com- pact and low profile overmolded land grid array (LGA) and n Automotive Battery Regulation ball grid array (BGA) packages suitable for automated n Power for Portable Products assembly by standard surface mount equipment. The n Distributed Supply Regulation LTM8032 is available with SnPb (BGA) or RoHS compli- n Industrial Supplies ant terminal finish. n Wall Transformer Regulation L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule and Burst Mode are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.

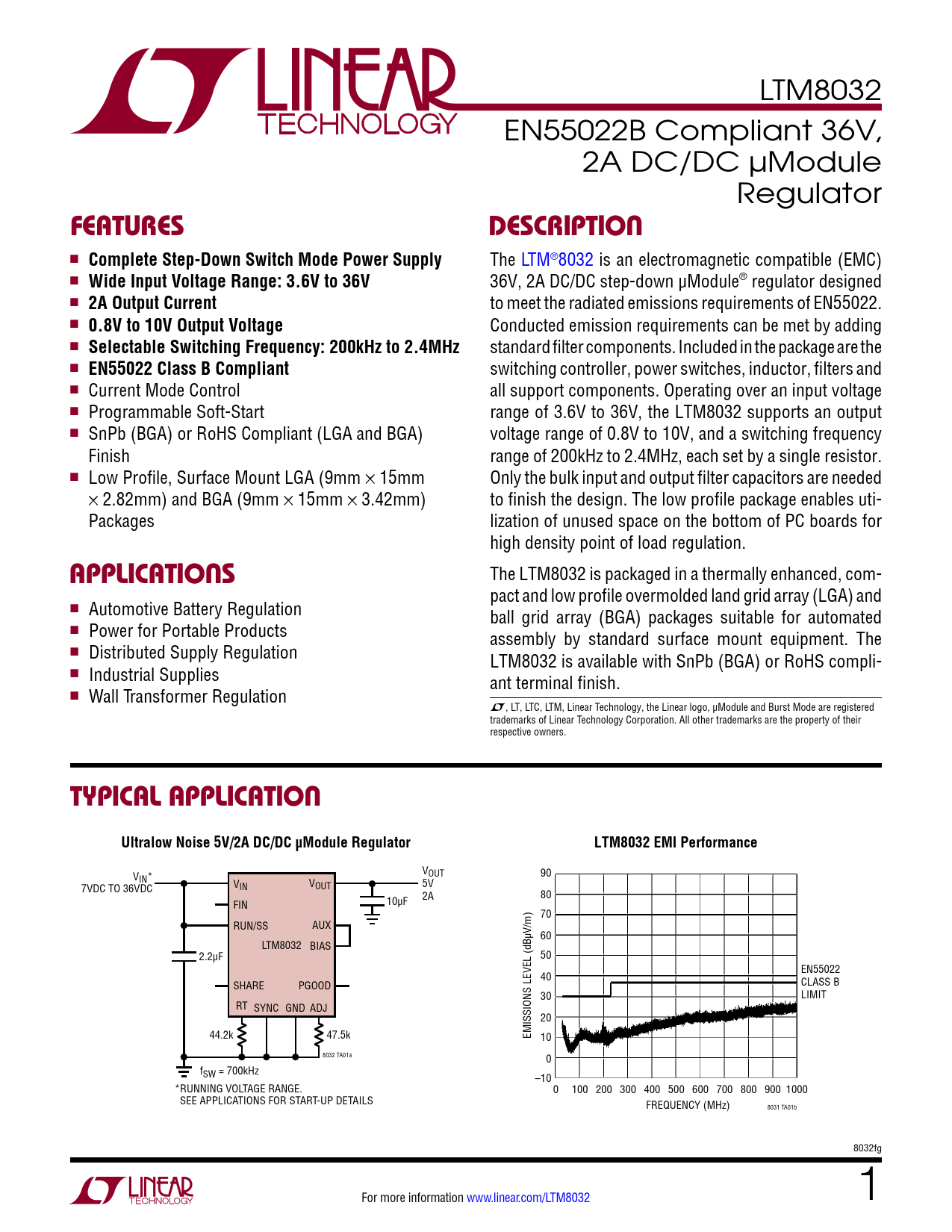

Typical applicaTion Ultralow Noise 5V/2A DC/DC µModule Regulator LTM8032 EMI Performance
VOUT 90 VIN* VIN VOUT 5V 7VDC TO 36VDC 2A 80 FIN 10µF 70 RUN/SS AUX V/m) 60 LTM8032 BIAS 2.2µF 50 EN55022 40 CLASS B SHARE PGOOD 30 LIMIT RT SYNC GND ADJ 20 44.2k 47.5k EMISSIONS LEVEL (dBµ 10 8032 TA01a 0 fSW = 700kHz –10 *RUNNING VOLTAGE RANGE. 0 100 200 300 400 500 600 700 800 900 1000 SEE APPLICATIONS FOR START-UP DETAILS FREQUENCY (MHz) 8031 TA01b 8032fg For more information www.linear.com/LTM8032 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Package Photographs Related Parts
