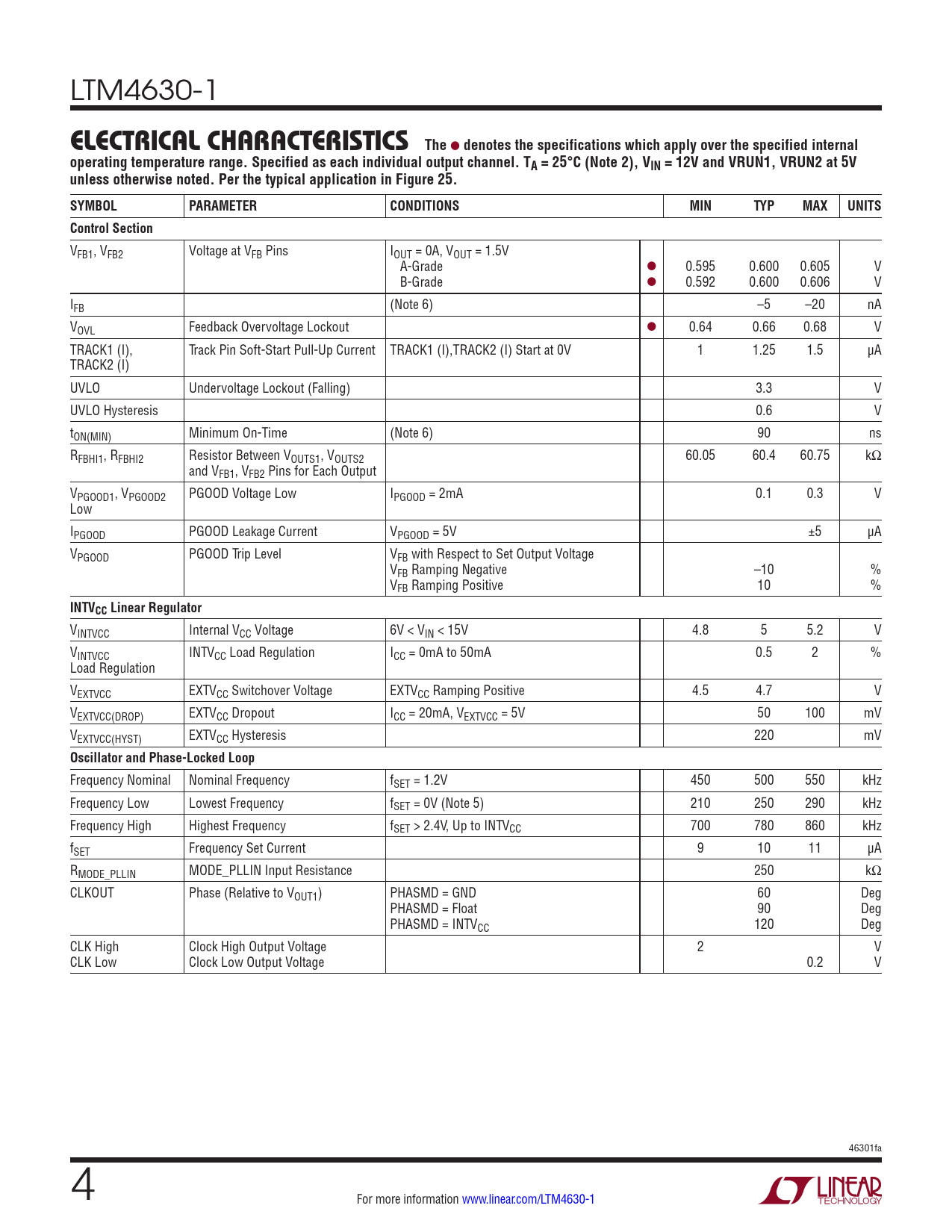

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the specified internal
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTM4630-1
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified internal operating temperature range. Specified as each individual output channel. TA = 25°C (Note 2), VIN = 12V and VRUN1, VRUN2 at 5V unless otherwise noted. Per the typical application in Figure 25. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Control Section
VFB1, VFB2 Voltage at VFB Pins IOUT = 0A, VOUT = 1.5V A-Grade l 0.595 0.600 0.605 V B-Grade l 0.592 0.600 0.606 V IFB (Note 6) –5 –20 nA VOVL Feedback Overvoltage Lockout l 0.64 0.66 0.68 V TRACK1 (I), Track Pin Soft-Start Pull-Up Current TRACK1 (I),TRACK2 (I) Start at 0V 1 1.25 1.5 µA TRACK2 (I) UVLO Undervoltage Lockout (Falling) 3.3 V UVLO Hysteresis 0.6 V tON(MIN) Minimum On-Time (Note 6) 90 ns RFBHI1, RFBHI2 Resistor Between VOUTS1, VOUTS2 60.05 60.4 60.75 kΩ and VFB1, VFB2 Pins for Each Output VPGOOD1, VPGOOD2 PGOOD Voltage Low IPGOOD = 2mA 0.1 0.3 V Low IPGOOD PGOOD Leakage Current VPGOOD = 5V ±5 µA VPGOOD PGOOD Trip Level VFB with Respect to Set Output Voltage VFB Ramping Negative –10 % VFB Ramping Positive 10 %
INTVCC Linear Regulator
VINTVCC Internal VCC Voltage 6V < VIN < 15V 4.8 5 5.2 V VINTVCC INTVCC Load Regulation ICC = 0mA to 50mA 0.5 2 % Load Regulation VEXTVCC EXTVCC Switchover Voltage EXTVCC Ramping Positive 4.5 4.7 V VEXTVCC(DROP) EXTVCC Dropout ICC = 20mA, VEXTVCC = 5V 50 100 mV VEXTVCC(HYST) EXTVCC Hysteresis 220 mV
Oscillator and Phase-Locked Loop
Frequency Nominal Nominal Frequency fSET = 1.2V 450 500 550 kHz Frequency Low Lowest Frequency fSET = 0V (Note 5) 210 250 290 kHz Frequency High Highest Frequency fSET > 2.4V, Up to INTVCC 700 780 860 kHz fSET Frequency Set Current 9 10 11 µA RMODE_PLLIN MODE_PLLIN Input Resistance 250 kΩ CLKOUT Phase (Relative to VOUT1) PHASMD = GND 60 Deg PHASMD = Float 90 Deg PHASMD = INTVCC 120 Deg CLK High Clock High Output Voltage 2 V CLK Low Clock Low Output Voltage 0.2 V 46301fa 4 For more information www.linear.com/LTM4630-1 Document Outline Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Operation Applications Information Package Description Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Output Total DC Accuracy and AC Transient Performance Applications Information Typical Applications Package Description Revision History Package Photo Design Resources Related Parts
