Datasheet LTM4650-1 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | Dual 25A or Single 50A µModule Regulator with 0.8% DC and 3% Transient Accuracy |
| Páginas / Página | 36 / 1 — FeaTures. DescripTion. ±0.8% Maximum Total DC Output Error Over Line. and … |
| Formato / tamaño de archivo | PDF / 673 Kb |
| Idioma del documento | Inglés |
FeaTures. DescripTion. ±0.8% Maximum Total DC Output Error Over Line. and Load (LTM4650-1A)
Línea de modelo para esta hoja de datos
Versión de texto del documento

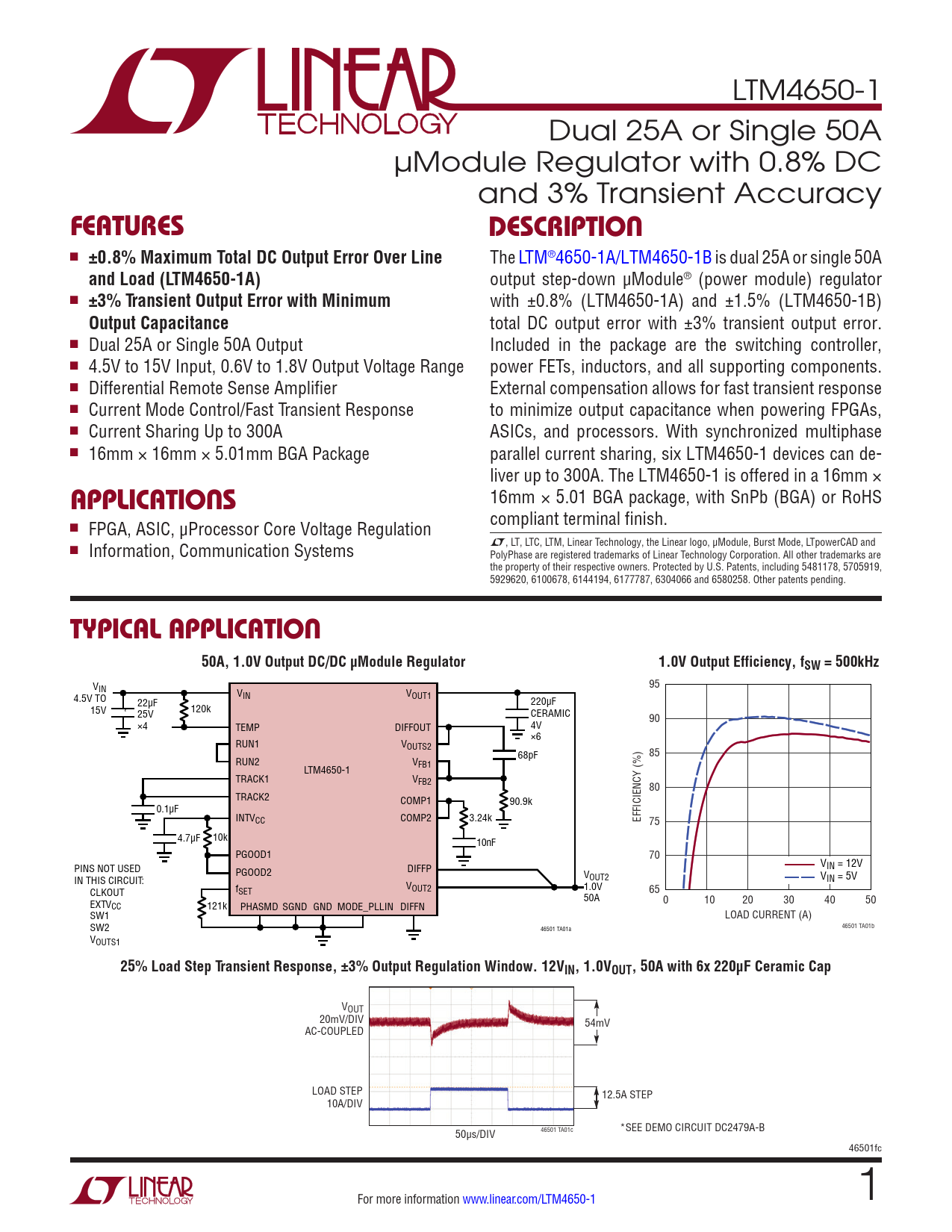

LTM4650-1 Dual 25A or Single 50A µModule Regulator with 0.8% DC and 3% Transient Accuracy
FeaTures DescripTion
n
±0.8% Maximum Total DC Output Error Over Line
The LTM®4650-1A/LTM4650-1B is dual 25A or single 50A
and Load (LTM4650-1A)
output step-down µModule® (power module) regulator n
±3% Transient Output Error with Minimum
with ±0.8% (LTM4650-1A) and ±1.5% (LTM4650-1B)
Output Capacitance
total DC output error with ±3% transient output error. n Dual 25A or Single 50A Output Included in the package are the switching controller, n 4.5V to 15V Input, 0.6V to 1.8V Output Voltage Range power FETs, inductors, and all supporting components. n Differential Remote Sense Amplifier External compensation allows for fast transient response n Current Mode Control/Fast Transient Response to minimize output capacitance when powering FPGAs, n Current Sharing Up to 300A ASICs, and processors. With synchronized multiphase n 16mm × 16mm × 5.01mm BGA Package parallel current sharing, six LTM4650-1 devices can de- liver up to 300A. The LTM4650-1 is offered in a 16mm × 16mm × 5.01 BGA package, with SnPb (BGA) or RoHS
applicaTions
compliant terminal finish. n FPGA, ASIC, µProcessor Core Voltage Regulation n Information, Communication Systems L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule, Burst Mode, LTpowerCAD and PolyPhase are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 5481178, 5705919, 5929620, 6100678, 6144194, 6177787, 6304066 and 6580258. Other patents pending.
Typical applicaTion 50A, 1.0V Output DC/DC µModule Regulator 1.0V Output Efficiency, fSW = 500kHz
VIN 95 VIN VOUT1 4.5V TO 22µF 220µF 15V * 120k 25V CERAMIC 90 ×4 4V TEMP DIFFOUT ×6 RUN1 VOUTS2 68pF 85 RUN2 V LTM4650-1 FB1 TRACK1 VFB2 80 TRACK2 COMP1 90.9k 0.1µF INTVCC COMP2 3.24k EFFICIENCY (%) 75 4.7µF 10k 10nF PGOOD1 70 PINS NOT USED DIFFP V PGOOD2 IN = 12V VOUT2 IN THIS CIRCUIT: VIN = 5V V f OUT2 1.0V CLKOUT SET 65 50A EXTV 0 10 20 30 40 50 CC 121k PHASMD SGND GND MODE_PLLIN DIFFN SW1 LOAD CURRENT (A) SW2 46501 TA01b 46501 TA01a VOUTS1
25% Load Step Transient Response, ±3% Output Regulation Window. 12VIN, 1.0VOUT, 50A with 6x 220μF Ceramic Cap
VOUT 20mV/DIV 54mV AC-COUPLED LOAD STEP 12.5A STEP 10A/DIV *SEE DEMO CIRCUIT DC2479A-B 50µs/DIV 46501 TA01c 46501fc For more information www.linear.com/LTM4650-1 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Revision History Package Photo Design Resources Related Parts
